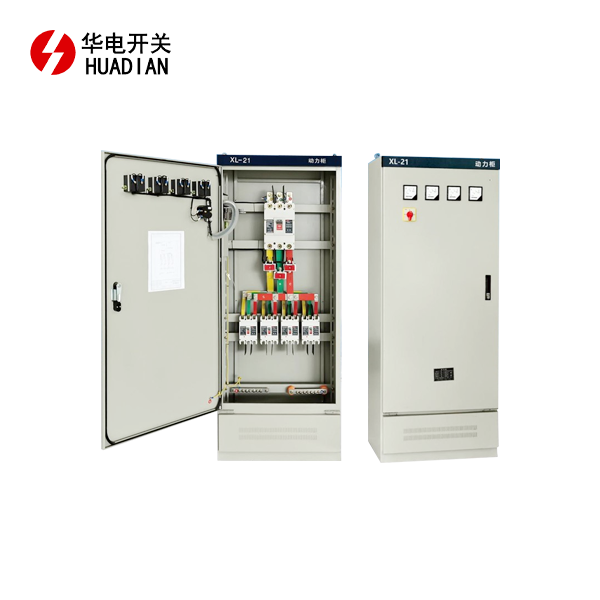

XL-21 type power distribution cabinet
**Rated Current:** It supports a rated current of up to 630A, accommodating various load requirements while maintaining efficiency under normal working conditions.
**Tripping Capacity:** This cabinet has a tripping capacity of 25kA, allowing it to effectively cut off high fault currents and protect the electrical system from damage.
**Tripping Time:** The tripping time is optimized for rapid response, ensuring that the circuit is interrupted within milliseconds to safeguard connected equipment.
**Operation Mode:** Available operation modes include manual and electric, providing flexibility for user preferences and operational needs.
**Distance:** The minimum distance between contacts after disconnection is maintained at 25mm, promoting safety and reducing the risk of accidental re-engagement.
**Delivery:** Products can be delivered via standard shipping or expedited options to meet your project timelines.
**Packaging:** Each XL-21 cabinet is securely packaged in durable outer packaging to ensure protection during transit and delivery.
XL-21 type power distribution cabinet Introduction
Shaanxi Huadian Electric Co., Ltd., a leading XL-21 type power distribution cabinet manufacturer . Our XL-21 type power distribution cabinet is designed to deliver reliable power management solutions to meet the needs of medium and large-scale industries. Whether you're in the energy, metallurgy, or urban construction sector, this product provides robust, high-performance power distribution, ensuring both safety and efficiency.
Product Introduction
The XL-21 type power distribution cabinet is a low-voltage electrical distribution unit that plays a key role in controlling and distributing electrical power. Designed for versatility and safety, it is widely used in industrial, commercial, and residential applications. At Shaanxi Huadian, we ensure that our cabinets meet stringent international quality standards, providing optimal solutions for stable and efficient electrical distribution.
Product Features and Advantages
-
High Efficiency and Durability: Built with premium materials and designed for long-term usage, the XL-21 cabinet ensures stable power distribution across various sectors.
-
Safety and Compliance: Certified under ISO9001:2000, our products adhere to international safety and quality standards. Each unit undergoes rigorous testing to ensure safety in demanding environments.
-
Customizable Solutions: We understand that every business has unique needs. Our XL-21 cabinets are customizable, allowing you to choose configurations that match your specific requirements.
-
User-Friendly Design: With an intuitive layout and easy access for maintenance, the XL-21 cabinet minimizes downtime and increases operational efficiency.
Product Structure
The XL-21 power distribution cabinet consists of a sturdy steel structure, designed to house various components like circuit breakers, relays, and fuses in a well-organized manner. The cabinet is divided into multiple compartments to safely separate low-voltage components from control systems, reducing the risk of operational hazards.
- Material: High-grade steel body, corrosion-resistant, ensuring long service life.
- Design: Compact, with front-facing operation panels for ease of access.
- Components: Main switch, auxiliary circuits, protection devices, and control panels.
Model and meaning:
Main Technical Parameters of the Product
- Rated Voltage: 380V (AC)
- Rated Frequency: 50Hz
- Rated Current: Up to 630A
- Protection Class: IP30 – IP40
- Applicable Standards: IEC60439, GB7251.1
|
Item |
U nit |
Pararneters |
|
Rated working voltage |
V |
AC380,AC660 |
|
Rated frequency |
HZ |
50/60 |
|
Rated short time withstand current (1s) |
kA |
50 |
|
Rated peak withstand current |
kA |
105 |
|
Dielectric strength |
V/1min |
2500 |
|
Rated insulation voltage |
V |
660 |
|
Protection grade |
IP30/IP40 |
|
|
Outline dimension (W×D×H) |
mm |
600(800,1000)x350(400,600) x1600(1800) |
These specifications ensure the product delivers consistent performance across a wide range of electrical systems.
Product Use Conditions
The XL-21 type power distribution cabinet is designed for indoor use and can operate under various environmental conditions:
- Ambient Temperature: -5°C to +40°C
- Altitude: Up to 2000 meters above sea level
- Relative Humidity: ≤90% (non-condensing)
Product Application Scope and Field
The XL-21 power distribution cabinet is ideal for use in:
- Power Plants: Efficient power management for large-scale energy distribution.
- Metallurgy: Ensuring consistent power supply in demanding industrial processes.
- Petrochemical: Managing critical power needs for refineries and chemical plants.
- Railway Systems: Providing stable power for rail infrastructure and stations.
- Urban Construction and Rural Networks: Supporting electrical distribution for urban development and rural power grid upgrades.
OEM Service
At Shaanxi Huadian, we offer OEM services to meet the diverse needs of our clients. Whether you need a specialized design or custom specifications for your project, we provide tailored solutions that align with your technical and operational requirements. Our experienced R&D team works closely with you to ensure the product fits seamlessly into your system.
FAQ
1. What makes the XL-21 cabinet suitable for industrial use?
The XL-21 cabinet is built for high durability and efficiency, designed to handle the power distribution needs of industries such as energy, metallurgy, and railways.
2. Can I customize the cabinet to suit my specific project?
Yes, we offer full customization services to meet your specific operational requirements. Contact us to discuss your needs.
3. How long is the delivery time?
We maintain a stable supply chain and can deliver within standard industry timelines, depending on your order size and customization needs.
4. Is technical support available?
Absolutely. We provide comprehensive technical support to ensure the smooth integration and operation of the XL-21 cabinet in your system.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
To learn more about the XL-21 type power distribution cabinet or to discuss your project needs, contact our team at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com.
