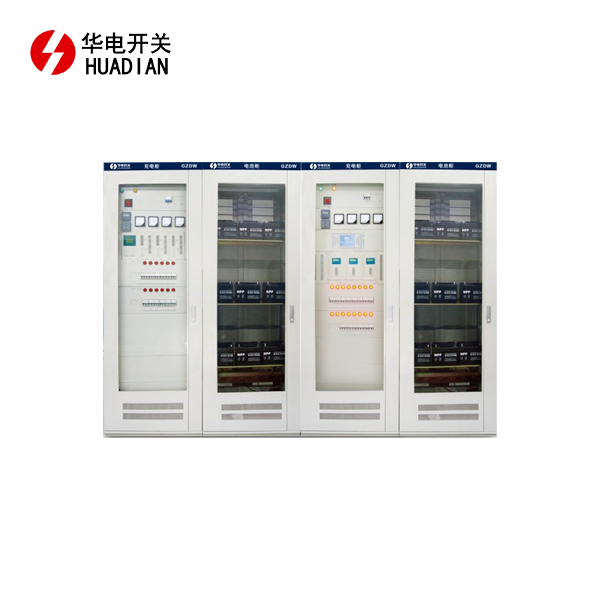

GZDW DC power panel
**Rated Current:** This power panel supports a maximum continuous current of [insert rated current] A, allowing it to efficiently handle standard operating conditions.
**Tripping Capacity:** With a robust tripping capacity of up to [insert tripping capacity] A, the GZDW panel effectively cuts off the circuit during fault conditions to protect your system.
**Tripping Time:** The circuit breaker features a quick tripping time of [insert tripping time] seconds, ensuring rapid response to electrical faults.
**Operation Mode:** The GZDW DC power panel can be operated manually, electrically, or pneumatically, providing flexibility to suit different operational requirements.
**Distance:** The minimum contact distance after disconnection is [insert distance] mm, ensuring safe operation and maintenance.
**Delivery:** We offer various shipping options for the GZDW DC power panel, including standard and express delivery to meet your needs.
**Packaging:** Each panel is securely packaged in durable outer packaging, ensuring protection during transport and delivery.
--- Feel free to insert the specific values where indicated!
GZDW DC Power Panel Manufacturer
As a leading GZDW DC power panel manufacturer located in the high-tech development zone of Baoji City, Shaanxi Province, we specialize in providing high-quality electrical solutions tailored to meet the diverse needs of industries across the globe. Our state-of-the-art manufacturing facility boasts a fully automated control assembly line and advanced testing equipment, ensuring that every product meets the highest international standards.
Product Introduction
The GZDW DC Power Panel is designed to offer reliable, efficient, and safe power distribution in various applications, including power plants, railway systems, and urban construction projects. This panel is a crucial component for ensuring stable DC power supply, vital for sensitive equipment and systems that require uninterrupted power. With our focus on quality, you can trust that the GZDW DC Power Panel will deliver exceptional performance, enhancing the reliability of your operations.
Product Features and Advantages
- High Efficiency: The GZDW DC Power Panel is engineered for optimal performance, minimizing energy loss while maximizing output.
- Robust Design: Constructed from high-quality materials, our panels are built to withstand demanding environments, ensuring long-lasting durability.
- User-Friendly Interface: Easy to operate and maintain, the GZDW DC Power Panel is designed with the user in mind, facilitating straightforward monitoring and adjustments.
- Comprehensive Safety Features: Equipped with multiple safety mechanisms, this power panel protects against overloads, short circuits, and other electrical faults, ensuring safe operation.
Product Structure
The GZDW DC Power Panel comprises several key components, including:
- Main Control Unit: Centralized control for monitoring and managing the power supply.
- Protection Devices: Essential for safeguarding the system against electrical faults.
- Connection Terminals: Designed for secure and efficient wiring.
- Cooling System: Maintains optimal operating temperatures for improved performance and longevity.
Main Technical Parameters of the Product
| Item | Parameter index |
| Rated input voltage | 380VAC 士20% 220VAC土20％ |
| Ratad output voltage | 220VDC、110VDC |
| Rated output current |
6A、1OA、 12A、 20A、 30A、 40A、5OA、 60A、 70A、 80A、 90A、100A、120A、130A、150A、180A、200A、260A、300A、 …… |
|
Capadity of storage battery |
7Ah、 10Ah、 20Ah、 38Ah、 65Ah、 100Ah、 150Ah、 200Ah、 300Ah、500Ah、 600Ah、 800Ah、1000Ah、 1500Ah、 2000Ah、 …… |
| Accuracy of voltage stabilization | ≤土0.5% |
| Accuracy of current stabilization | ≤士0.5% |
| Ripple coef cient | ≤士0.1% |
| Frequency of power grid | 50Hz士10％ |
| Power factor | ≥0.95％ Full-load Output |
| Insulating strength | ＞10m、2kV ac No ashover or breakdown for 1 min |
| Working procedures | Long term continuous running |
| Cooling procedures |
Intelligent temperature-control type air cooling, high-ef cient natural cooling |
| Audible noise | ≤50dB |
Product Use Conditions
The GZDW DC Power Panel is designed for operation in a variety of environments, including:
- Indoor Applications: Suitable for use in control rooms and electrical substations.
- Outdoor Applications: With appropriate enclosures, it can withstand harsh weather conditions.
- Altitude: Up to 2000 meters above sea level.
Product Application Scope and Field
The GZDW DC Power Panel is widely utilized across multiple sectors, including:
- Power Generation: Power plants relying on DC supply for efficient operation.
- Transportation: Railways and metro systems that depend on stable power sources.
- Industrial Automation: Factories utilizing DC equipment for production processes.
- Telecommunications: Essential for maintaining power in communication networks.
OEM Service
At Shaanxi Huadian, we understand that every client has unique needs. Our OEM service allows us to customize the GZDW DC Power Panel to fit your specific requirements. Whether you need modifications in design, size, or functionality, our expert team will work with you to deliver tailored solutions.
FAQ
Q1: What is the warranty period for the GZDW DC Power Panel?
A: We offer a standard warranty period of 12 months from the date of purchase, ensuring peace of mind with your investment.
Q2: Can the GZDW DC Power Panel be integrated with existing systems?
A: Yes, our power panels are designed to be compatible with most existing DC systems, facilitating easy integration.
Q3: What type of technical support do you provide?
A: We provide comprehensive technical support, including installation assistance, maintenance guidance, and troubleshooting advice.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information about the GZDW DC Power Panel or to discuss your specific needs, please feel free to reach out to us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com.
Our dedicated team is here to assist you in finding the perfect solution for your power distribution requirements.
