**Rated Current:** Designed to handle a continuous current of up to 3150A, the GGD switchgear is ideal for high-demand environments.
**Tripping Capacity:** With a tripping capacity of 100kA, this switchgear effectively interrupts high fault currents, enhancing system protection.
**Tripping Time:** The GGD switchgear boasts a quick tripping time of less than 0.1 seconds, ensuring rapid disconnection in fault conditions.
**Operation Mode:** Available in manual and electric operation modes, the GGD switchgear offers flexibility to meet operational needs.
**Distance:** The minimum contact distance after disconnection is maintained at 12mm, ensuring safety and efficiency.
**Delivery:** Products are delivered via reliable shipping methods, including air freight and sea freight, to meet customer requirements.
**Packaging:** Each unit is securely packaged in a robust outer box to prevent damage during transit, ensuring your switchgear arrives in perfect condition.
--- Feel free to let me know if you need any adjustments or additional details!

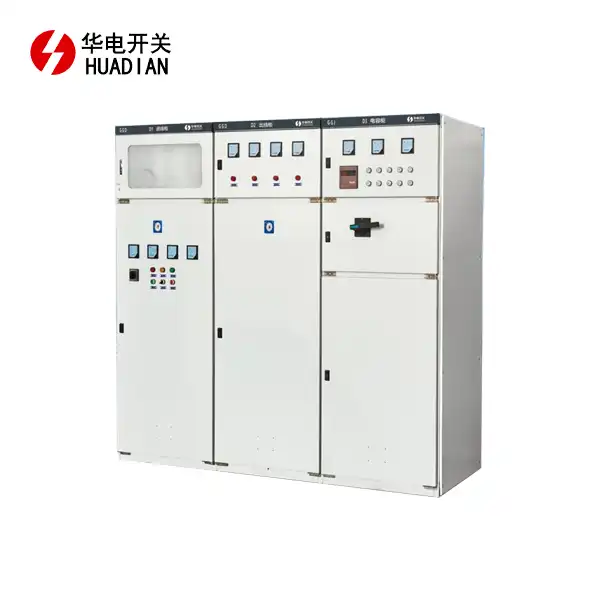

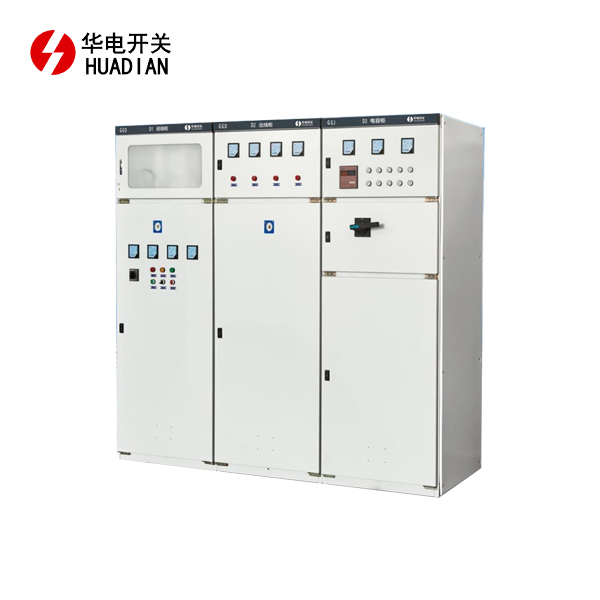

GGD AC Low Voltage Fixed Complete Switchgear Introduction
The GGD AC low voltage fixed complete switchgear from Shaanxi Huadian Electric Co., Ltd. is a highly reliable solution for low-voltage power distribution systems. Designed with advanced technology, it provides superior performance for a wide range of applications, ensuring stable operation, safety, and long-term use. With a strong production capacity and adherence to international quality standards, this switchgear is ideal for industries like power generation, petrochemicals, mining, and more.
Product Features and Advantages
- High Reliability: Built with premium materials and designed for maximum durability, our GGD AC low voltage fixed complete switchgear ensures stable operation under various environmental conditions.
- Safety Assurance: Equipped with robust protection features, it guarantees a high level of safety for both users and equipment.
- Energy Efficiency: Its design contributes to improved energy management and reduced operational costs.
- Ease of Installation: Modular design allows for quick and easy installation, minimizing downtime during setup.
Product Structure
The GGD AC low voltage fixed complete switchgear is designed with high-quality steel, offering exceptional mechanical strength and superior corrosion resistance. This robust construction ensures durability and longevity, even in demanding environments. The switchgear is strategically divided into functional units, including protection, control, and monitoring, each clearly compartmentalized for ease of operation and maintenance. This thoughtful design enhances user accessibility, allowing for quick and efficient servicing. With its reliable performance and well-organized layout, the GGD switchgear is ideal for a wide range of applications, ensuring safe and effective management of electrical systems.
Main Technical Parameters
- Rated voltage: 380V, 400V, or 660V
- Rated current: 1000A to 3150A
- Rated short-circuit breaking capacity: 50kA
- Protection level: IP30 to IP40
- Ambient temperature: -5°C to 40°C
Type |
Rated voltage(V) |
Rated current(A) |
Rated short circuit breaking current |
Rated short time withstand current |
Rated peak withstand current |
GGD1 |
380 |
1000 600(630) 400 |
15 |
15(1S) |
30 |
GGD2 |
380 |
1500 1600 1000 |
30 |
30(1S) |
63 |
GGD3 |
380 |
3150 (2500) 2000 |
50 |
50(1S) |
105 |
Product Use Conditions
The GGD AC low voltage fixed complete switchgear is suitable for use in various environments with a temperature range between -5°C and 40°C and a relative humidity below 90%. It can be installed indoors in places free from corrosive gases or heavy dust, ensuring long-lasting performance.
Product Application Scope and Field
This switchgear is widely applied across numerous industries:
- Power Plants: Essential for efficient power distribution and management.
- Metallurgy: Ensures safe and stable power supply in metal processing.
- Petrochemicals: Provides reliable low-voltage power distribution in refineries and chemical plants.
- Mining: Facilitates safe and effective power control in mining operations.
- Railways: Supports smooth power distribution in railway stations and facilities.
- Urban Construction & Rural Network Transformation: Crucial for modern infrastructure development.
OEM Service
At Shaanxi Huadian Electric Co., Ltd., we provide comprehensive OEM services for our GGD AC low voltage fixed complete switchgear, enabling customers to customize specifications and features to suit their unique operational needs. Our dedicated team collaborates closely with clients to thoroughly understand their project requirements and design tailor-made solutions that enhance performance and functionality. Whether you need specific dimensions, unique control mechanisms, or additional safety features, we ensure that our switchgear aligns perfectly with your operational demands. This personalized approach not only optimizes efficiency but also guarantees that our products seamlessly integrate into your existing systems for maximum reliability.
FAQ
-
What is the lifespan of this switchgear?
The GGD AC low voltage fixed complete switchgear is designed for long-term use, with a typical lifespan exceeding 20 years under normal operating conditions. -
What certifications does this product meet?
Our switchgear complies with ISO9001:2000 quality system certification and other international safety and quality standards. -
Can I get technical support for installation?
Yes, we provide full technical support, including installation guidance, troubleshooting, and maintenance. -
What payment methods are accepted?
We accept bank transfers and credit cards, providing flexible payment options for all our clients.
Contact Us
For more details about our GGD AC low voltage fixed complete switchgear or to request a quote, please contact us via email: austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com.
We look forward to assisting you with your power distribution needs.
