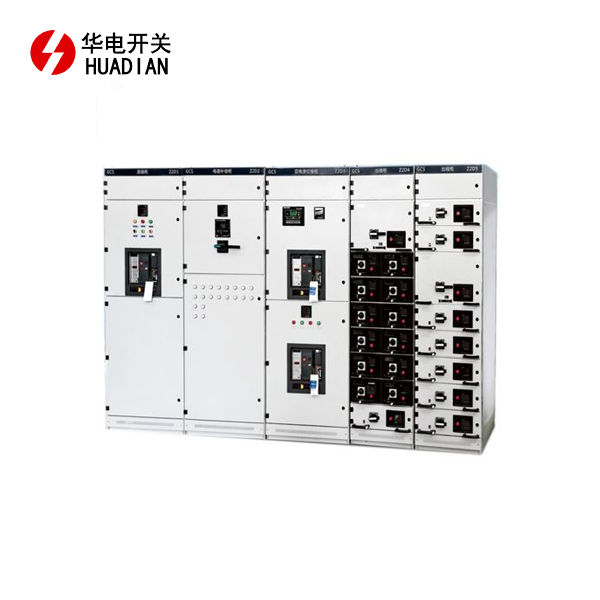

GCS low voltage withdrawable switchgear complete set
2. **Rated Current:** This switchgear can handle a continuous current of up to 4000A, making it suitable for demanding electrical systems.
3. **Tripping Capacity:** With a tripping capacity of up to 63kA, the GCS switchgear effectively cuts off maximum fault currents, enhancing system protection.
4. **Tripping Time:** The circuit breaker ensures rapid disconnection, with a tripping time of less than 0.1 seconds, minimizing the risk of damage during faults.
5. **Operation Mode:** Available in manual, electric, and pneumatic operation modes, the GCS switchgear provides flexibility to meet diverse operational needs.
6. **Distance:** After disconnection, the minimum contact distance is 12 mm, ensuring safe operation and preventing accidental re-energization.
7. **Delivery:** The GCS switchgear is available for international shipping via air, sea, or courier services, tailored to meet your delivery preferences.
8. **Packaging:** Each switchgear unit is securely packaged in durable wooden crates to ensure safe transportation and handling.
GCS Low Voltage Withdrawable Switchgear Complete set Introduction
Our GCS low voltage withdrawable switchgear complete set is a state-of-the-art power distribution system designed to regulate and protect your electrical infrastructure. Built for high-voltage environments, this product ensures the safe distribution of electricity across industries such as energy, manufacturing, and urban development. With a focus on reliability and longevity, the GCS switchgear set is engineered to withstand even the most challenging conditions while maintaining high operational efficiency.
Product Features and Advantages
- Safety First: Designed with high-grade insulation and protection features to ensure operational safety.
- Modularity: Its withdrawable design allows for easy maintenance and scalability, adapting to your evolving energy needs.
- Efficient Power Distribution: Guarantees optimal power flow and system protection, reducing downtime and energy loss.
- Durability: Built to last with premium materials that resist wear, corrosion, and electrical faults, ensuring long service life.
- Certified Quality: Fully compliant with ISO9001:2000 standards, ensuring superior quality and peace of mind for all users.
Product Structure
The GCS low voltage withdrawable switchgear complete set consists of the following key components:
- Main switch unit: A withdrawable module for ease of maintenance and quick replacement.
- Busbars: High-conductivity busbars to ensure efficient power transfer.
- Protection relays: Ensuring the safety of your electrical network by detecting faults and interrupting abnormal currents.
- Control unit: User-friendly control panels with clear displays for managing power flow and system status.
（Unit:mm）
| 高H | 2200 | |||||||||
| 宽W | 400 | 600 | 800 | 1000 | ||||||
| 深D | 800 | 1000 | 800 | 1000 | 600 | 800 | 1000 | 600 | 800 | 1000 |
Main Technical Parameters
| Rated voltage of main circuit | AC380(400)V, AC660V |
| Rated voltage of auxiliary circuit | AC220V, AC380V ,DC110V, DC220V |
| Rated ferquency | 50(60)Hz |
| Rated insulation voltage | 660V(1000V) |
| Rated current (Horizon bar) | ≤4000 |
| Rated bar(Vertical bar) | 1000 |
| Protection grade | IP30 IP40 |
Product Use Conditions
The GCS low voltage withdrawable switchgear complete set operates efficiently under the following conditions:
- Ambient temperature: -5°C to +40°C
- Humidity: Relative humidity ≤ 90%
- Installation altitude: Up to 2000 meters above sea level
- Non-corrosive, non-explosive environments free of excessive vibration
Product Application Scope and Field
This GCS low voltage withdrawable switchgear complete set is widely applicable across industries that require reliable and efficient power distribution:
- Power Plants: Manage electricity flow safely and effectively.
- Metallurgy and Mining: Provides robust power distribution in harsh industrial settings.
- Urban Construction: Ensures stable power supply to residential and commercial buildings.
- Petrochemical Industry: Meets the energy needs of critical operations.
- Railways and Broadcasting: Ideal for sectors requiring uninterrupted power flow and system protection.
OEM Service
At Shaanxi Huadian Electric, we pride ourselves on providing comprehensive OEM services to customize our GCS low voltage withdrawable switchgear complete set to meet your specific requirements. Our team works closely with you to understand your unique needs, whether that involves tailoring technical specifications, incorporating additional features, or adapting designs for specific applications. This level of customization ensures that our products not only meet but exceed your expectations, delivering optimal performance. Furthermore, our switchgear is designed for seamless integration with your existing systems, allowing for smooth operation and enhanced reliability in various industrial environments. Partner with us for a solution that fits your exact needs.
FAQ
Q1: How does the withdrawable design benefit my business?
A1: The withdrawable feature allows for quick and easy access to internal components, reducing downtime for maintenance and enhancing system flexibility.
Q2: Is technical support available for installation?
A2: Yes, we provide full technical support for installation and application, ensuring smooth integration into your electrical infrastructure.
Q3: Can this product be used in harsh environments?
A3: Absolutely. The GCS switchgear is designed for durability and can be equipped with enhanced protection ratings to withstand harsh conditions.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
Interested in learning more bout GCS low voltage withdrawable switchgear complete set or requesting a quote? Contact our expert team at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com
We are ready to help you find the perfect solution for your power distribution needs.
