GGJ low voltage reactive power intelligent compensation device
**Rated Current:** With a rated current of up to 63A, the GGJ device effectively manages continuous electrical flow, maintaining optimal operation under normal working conditions.
**Tripping Capacity:** This intelligent compensation device features a tripping capacity of 10kA, allowing it to safely cut off high fault currents, thereby protecting your electrical equipment.
**Tripping Time:** The GGJ device boasts a rapid tripping time of less than 0.1 seconds, ensuring immediate disconnection to prevent damage during fault conditions.
**Operation Mode:** The device operates in an electric mode, providing automated and efficient reactive power compensation for improved energy efficiency.
**Distance:** The minimum contact distance after disconnection is 10mm, ensuring safe isolation of electrical circuits.
**Delivery:** We offer flexible delivery options, including express shipping and standard freight, to meet your requirements.
**Packaging:** The GGJ device is securely packaged in sturdy cardboard boxes, ensuring protection during transit and storage.
--- Feel free to modify any part of it to better suit your needs!

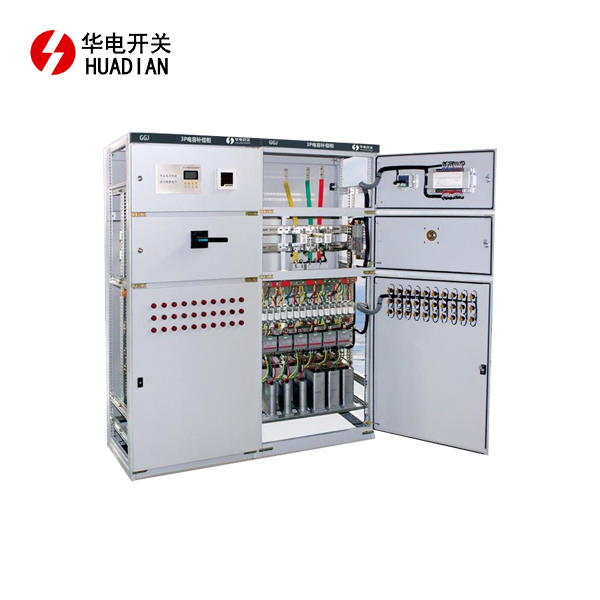

GGJ Low Voltage Reactive Power Intelligent Compensation Device Introduction
The GGJ Low Voltage Reactive Power Intelligent Compensation Device is an advanced solution designed to improve power efficiency and ensure the smooth operation of electrical systems. Manufactured by Shaanxi Huadian Electric Co., Ltd., this device reduces power loss, enhances voltage stability, and effectively compensates for reactive power in low-voltage networks. Ideal for industrial applications, it is widely used in power plants, metallurgy, mining, and urban infrastructure projects, ensuring reliable power management and energy savings.
Product Features and Advantages
- High Efficiency: The GGJ device ensures optimal power usage by stabilizing voltage fluctuations, reducing energy waste, and improving overall electrical efficiency.
- Automatic Control: Equipped with intelligent microprocessors, it provides automatic compensation for reactive power, reducing manual intervention and enhancing system reliability.
- Durable Design: Built with high-quality materials and a robust structure, it withstands harsh environments and operates efficiently over extended periods.
- Energy Savings: By reducing power loss, the GGJ device contributes to significant energy savings, reducing operational costs for large-scale industrial setups.
- User-Friendly Interface: Its user-friendly control panel and display make it easy for operators to monitor and adjust the system as needed.
Product Structure
The GGJ Low Voltage Reactive Power Intelligent Compensation Device is composed of the following main components:
- Intelligent Controller: The heart of the system, responsible for monitoring power quality and adjusting compensation in real-time.
- Capacitors: High-performance capacitors provide reliable reactive power compensation.
- Switchgear: Ensures safe and reliable power distribution.
- Cooling System: Built-in cooling mechanisms ensure that the device operates within optimal temperature ranges, even under heavy loads.
|
柜体宽度（A） |
柜深（B） |
安装孔距 |
安装孔距 |
|
800 |
500 |
685 |
385 |
|
600 |
800 |
485 |
685 |
|
600 |
1000 |
485 |
885 |
|
800 |
800 |
685 |
685 |
|
800 |
1000 |
685 |
885 |
|
1000 |
800 |
885 |
685 |
|
1000 |
1000 |
885 |
885 |
Main Technical Parameters
- Rated Voltage: AC 380V (customizable for other voltage levels)
- Frequency: 50Hz/60Hz
- Compensation Capacity: 30kvar - 400kvar
- Control Mode: Automatic or manual
- Response Time: ≤40ms
- Ambient Temperature: -25°C to +55°C
- Humidity: ≤90% (non-condensing)
| Item | Data |
| Rated Voltage | 0.38-0.66kV |
| Rated frequency | 50Hz |
| Rated capacity | 1-600kvar |
| Applicable voltage range | (0.85-1.1) times the rated voltage |
| Maximum allowable current: | 1.3 times the rated current |
| Control circuit | 1-16 loop |
| Switching timing | 1-150S / times, adjustable |
| Working style | automatic, continuous operation. |
Product Use Conditions
The GGJ Low Voltage Reactive Power Intelligent Compensation Device is designed for use in:
- Environments with an altitude of up to 2000 meters.
- Indoor spaces free from corrosive gases and conductive dust.
- Areas where temperature and humidity are within operational limits. This device is ideal for applications where consistent power supply quality and cost-efficiency are critical.
Product Application Scope and Field
The GGJ device is highly versatile and finds its use across several industries:
- Power Generation and Distribution: Stabilizes power in low-voltage distribution systems.
- Metallurgy and Mining: Helps industrial plants optimize energy consumption and improve productivity.
- Urban Infrastructure: Used in city grid networks to support stable power delivery.
- Petrochemical Plants: Ensures reliable operation of power systems in hazardous environments.
- Railway and Telecommunications: Enhances the performance of electrical networks in transportation and communication sectors.
OEM Service
Shaanxi Huadian Electric Co., Ltd. offers customized OEM solutions to meet specific requirements. From product design adjustments to tailored technical support, we collaborate closely with clients to deliver devices that match their operational needs. We ensure every device meets international quality standards and regulatory requirements, offering end-to-end manufacturing support.
FAQ
1. How does the GGJ device improve energy efficiency?
The device automatically compensates for reactive power, reducing energy loss and optimizing the overall efficiency of the power system.
2. Can the device be customized for different voltage levels?
Yes, we offer customization for various voltage levels based on specific operational needs.
3. What industries is this device best suited for?
It is ideal for power plants, metallurgy, mining, urban grids, and any industry requiring stable and efficient power management.
4. Is technical support available for installation and maintenance?
Yes, we provide comprehensive technical support, including installation guidance, operational training, and ongoing maintenance assistance.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For GGJ low voltage reactive power intelligent compensation device or to request a quote, please contact us at:
Email: [austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com]
We look forward to helping you optimize your energy efficiency and power system performance.
