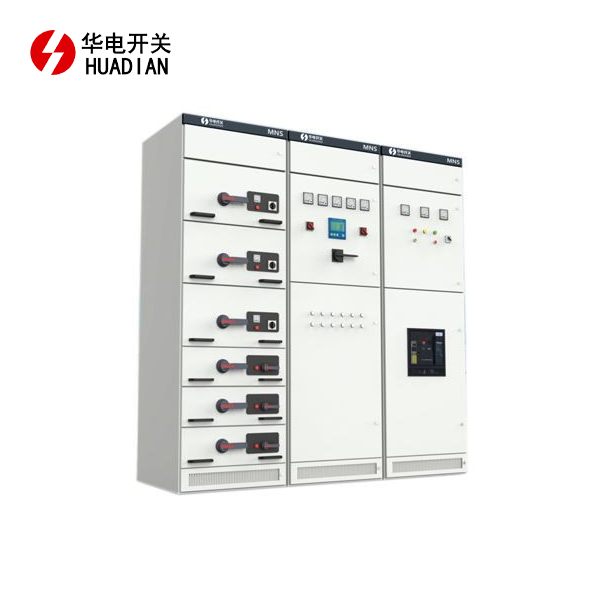

MNS low voltage withdrawable switchgear complete set
**Rated Current:** With a rated current capacity of up to 4000A, this switchgear is suitable for handling high-load conditions efficiently.
**Tripping Capacity:** The system features a tripping capacity of 50kA, providing robust protection against short-circuit faults.
**Tripping Time:** The circuit breaker achieves a swift tripping time of less than 0.1 seconds, ensuring immediate response to fault conditions.
**Operation Mode:** Available in multiple operation modes including manual, electric, and pneumatic, the MNS switchgear accommodates diverse operational needs.
**Distance:** The minimum contact separation distance after disconnection is 12mm, ensuring safety and reliability in operation.
**Delivery:** Products are available for shipping via air, sea, or courier services, ensuring timely delivery to global destinations.
**Packaging:** Each unit is securely packaged in a durable wooden crate, ensuring protection during transportation and handling.
MNS Low Voltage Withdrawable Switchgear Complete Set Introduction
The MNS low voltage withdrawable switchgear complete set is a modern, modular system designed to safely distribute electrical power in industrial settings. It features advanced technology that enhances safety and efficiency, making it ideal for complex power distribution needs in power plants, railways, petrochemical facilities, and more.With our high-quality switchgear, you can expect stable performance, reduced downtime, and optimized power distribution, ensuring your operations run smoothly.
Product Features and Advantages
- Safety First: The MNS low voltage withdrawable switchgear complete set is designed with top-tier safety features, including advanced arc protection and robust insulation, reducing risks in high-demand environments.
- Flexibility: It offers modular design options, allowing for easy expansion and customization as your power distribution needs evolve.
- Compact Design: Our switchgear saves valuable space while maintaining performance, making it perfect for facilities with limited room for large electrical installations.
- Easy Maintenance: With a withdrawable design, the system allows for quick maintenance and replacement of components without disrupting operations.
- High Reliability: Built to last, the MNS system is crafted with high-quality materials and undergoes rigorous testing to meet international standards.
Product Structure
The MNS low voltage withdrawable switchgear complete set consists of functional units housed in metal-enclosed compartments, ensuring segregation of circuits for improved safety. Each compartment is easily accessible, making repairs and component replacements straightforward. The withdrawable units make system upgrades or adjustments simple without the need to halt operations.
Product outline and installation dimensions：
（Unit:mm）
Main Technical Parameters
| Rated working voltage (V) | Rated insulation voltage (V) | Rated working current (A) | (KA)Virtual value (1s)/peak value(KA)of rated short time withstand current | Protection grade of shell IP30 IP40 | ||
| Horizontal bus bar | Vertical bus bar | Horizontal bus bar | Vertical bus bar | Outline dimension H*W*D | ||
| 380 660 | 660 1000 | 630-5000 | 800-2000 | 50-100/105-250 | 60/130-150 | 2200*600(800.1000)*800(1000) |
These parameters are designed to meet the diverse demands of industrial applications, ensuring reliable performance even in challenging environments.
Product Use Conditions
The MNS low voltage withdrawable switchgear complete set operates optimally in the following conditions:
- Installation altitude ≤ 2000 meters
- Ambient temperature between -5°C and +40°C
- Non-corrosive, dust-free, and well-ventilated environments
- Indoor use preferred, though outdoor installation is possible with additional protective measures
Product Application Scope and Field
Our MNS low voltage withdrawable switchgear is widely used across various industries, including:
- Power plants
- Metallurgy
- Petrochemical
- Railways
- Mining
- Urban construction
- Rural power grid transformation
This product's versatility makes it suitable for complex power distribution networks where safety, reliability, and performance are critical.
OEM Service
At Shaanxi Huadian, we proudly offer comprehensive OEM services to customize switchgear according to your specific needs. Our experienced team is dedicated to providing tailored solutions that meet your unique technical requirements. Whether you require custom designs, modifications, or private labeling, we work closely with you throughout the entire process to ensure your specifications are met with precision. We understand that every project is different, and our commitment to quality and innovation enables us to deliver products that enhance your operational efficiency. Trust us to provide flexible and effective solutions that align with your goals and exceed your expectations.
Frequently Asked Questions (FAQ)
Q1: What industries can benefit from the MNS low voltage withdrawable switchgear?
A: It is ideal for power plants, railways, petrochemical industries, metallurgy, and more.
Q2: What is the maintenance process like?
A: Maintenance is simple thanks to the withdrawable design, allowing quick and safe access to components.
Q3: Can the switchgear be customized?
A: Yes, we offer OEM services to customize the design and features based on your operational needs.
Q4: What certifications does the product have?
A: Our products meet the ISO9001:2000 quality system certification, ensuring compliance with international standards.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For MNS low voltage withdrawable switchgear complete set or to request a quote, please reach out to us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com.
We are ready to assist you with high-quality electrical solutions tailored to your industry needs.
