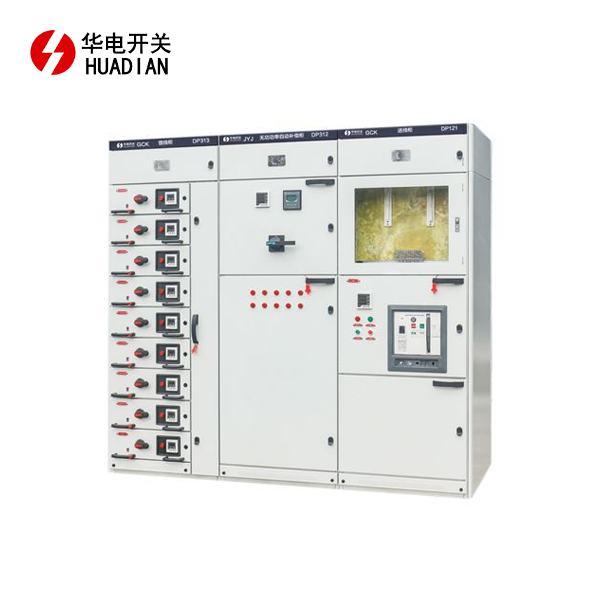

GCK low-voltage withdrawable switch cabinet complete set of switchgear
**Rated Current:** This switch cabinet supports continuous current ratings of up to 4000A, making it suitable for demanding operational conditions.
**Tripping Capacity:** The circuit breaker can effectively cut off fault currents of up to 100kA, providing robust protection against electrical faults.
**Tripping Time:** The GCK cabinet features an efficient tripping time of less than 0.1 seconds, ensuring rapid response to electrical faults.
**Operation Mode:** It offers versatile operation modes including manual, electric, and pneumatic, allowing for flexible control according to user preferences.
**Distance:** The minimum contact distance after disconnection is 25mm, ensuring safety and preventing accidental reconnection.
**Delivery:** Our products can be shipped globally using various methods, including air freight, sea freight, and express delivery options.
**Packaging:** Each unit is carefully packaged in robust wooden crates to ensure safe transit and protection against damage during shipping.
GCK low-voltage withdrawable switch cabinet complete set of switchgear Introduction
The GCK low-voltage withdrawable switch cabinet complete set of switchgear from Shaanxi Huadian Electric Co., Ltd. is a top-tier solution for electrical control and distribution in various industries. Designed with advanced technology and precision, this switchgear provides reliable performance, safety, and versatility, meeting the demands of power plants, petrochemical facilities, railways, and more. Whether you need to manage power distribution or ensure system protection, the GCK switchgear is engineered to handle complex electrical requirements.
Product Features and Advantages
- Modular Design: The GCK low-voltage withdrawable switch cabinet complete set of switchgear features a modular structure, allowing for easy maintenance, expansion, and customization to meet specific application needs.
- High Reliability: With advanced manufacturing techniques and fully automated production lines, our switchgear offers long-lasting reliability and reduces the risk of system failures.
- Enhanced Safety: The cabinet is equipped with multiple protective measures, such as overload, short-circuit, and ground fault protection, ensuring both equipment and personnel safety.
- Space Efficient: The compact design maximizes space usage, making it ideal for installations where room is limited.
- Easy Operation: Designed for user-friendly operation, the GCK switchgear comes with intuitive controls and a clear layout to simplify management.
Product Structure
The GCK low-voltage withdrawable switch cabinet is composed of several functional units, including:
- Incoming and outgoing line compartments: These are responsible for power intake and distribution.
- Busbar compartment: Safely connects electrical circuits within the switchgear.
- Switching devices: Houses essential components such as circuit breakers, contactors, and relays.
- Control unit: Manages the entire system, ensuring smooth and uninterrupted operation.
Each unit is withdrawable, allowing for easy removal and replacement without interrupting the overall operation.
Product outline and installation dimensions：
（Unit:mm）
Main Technical Parameters
| Protection grade | IP40,IP30 |
| Rated working voltage | AC,380(V) |
| Frequency | 50Hz |
| Rated insulation voltage | 660V |
| Working conditions | |
| Environment | Indoors |
| Altitude | ≤2000m |
| Ambient temperature | -5℃~+40℃ |
| The min temperature under store and transportation | -30℃ |
| Relative humidity | ≤90% |
| (kW)Capacity of control motor(kW) | 0.4-155 |
| Rated current(A) | |
| Horizontal bus bar | 1600 2000 3150 |
| Vertical bus bar | 630 800 |
| Contact connector of main circuit | 200 400 |
| Supply circuit | 1600 |
| Max current |PC cabinet | 630 |
| Power receiving circuit |MCC cabinet | 1000 1600 2000 2500 3150 |
| Rated short time withstand current(KA) | |
| Virtual value | 50 80 |
| Peak value | 105 176 |
| Line frequency withstand voltage(V/1min) | 2500 |
These parameters make the GCK switchgear highly adaptable for a wide range of industrial applications, ensuring stable power distribution and control under varying load conditions.
Product Use Conditions
The GCK low-voltage switchgear is designed for use under the following conditions:
- Temperature Range: -5°C to +40°C
- Humidity: ≤90% (non-condensing)
- Altitude: ≤2000 meters
- Vibration: Suitable for environments with minimal mechanical vibrations and shocks.
These operating conditions ensure that the switchgear performs reliably in various industrial settings, even in harsh environments.
Product Application Scope and Field
The GCK low-voltage withdrawable switch cabinet complete set of switchgear is widely used in:
- Power Plants: For managing power distribution and protection in large-scale operations.
- Metallurgy: To handle the heavy electrical loads of smelting and refining processes.
- Petrochemical Industries: For safe and efficient electrical management in hazardous environments.
- Railways: Ensuring smooth operation of electrical systems in transportation networks.
- Urban Construction and Rural Electrification: Ideal for infrastructure projects requiring reliable power distribution.
OEM Service
At Shaanxi Huadian Electric Co., Ltd., we offer comprehensive OEM services for the GCK switchgear. Our experienced R&D team can customize the product to meet specific requirements, ensuring that each unit is tailored to the unique needs of your project. From design modifications to technical support, our OEM solutions are designed to provide maximum flexibility and efficiency.
FAQ
Q1: What certifications does the GCK switchgear hold?
A1: The GCK switchgear complies with ISO9001:2000 certification, ensuring it meets international quality standards.
Q2: How often does the switchgear require maintenance?
A2: Routine inspections are recommended annually, with in-depth maintenance every three to five years, depending on usage conditions.
Q3: Can the switchgear be customized for specific projects?
A3: Yes, we offer full OEM customization options to suit various project needs.
Q4: What industries can benefit most from the GCK switchgear?
A4: It is ideal for industries such as power generation, petrochemicals, mining, and urban infrastructure.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information about GCK low-voltage withdrawable switch cabinet complete set of switchgear or to request a quote, please contact us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com.
Our team is ready to assist with any questions and provide further details on our products and services.
