Operating mechanism for ZN85-40.5T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker

Operating Mechanism for ZN85-40.5T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker's Product Introduction

Welcome to our product page for the Operating Mechanism for ZN85-40.5T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker. At Shaanxi Huadian Electric Co., Ltd., we take pride in being a leading manufacturer of advanced electrical solutions, including vacuum circuit breakers. Our commitment to quality and innovation ensures that our products meet the highest international standards, making them ideal for a wide range of applications.

Product Features and Advantages

The operating mechanism for the Operating mechanism for ZN85-40.5T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker is designed to provide reliable performance and superior efficiency. Here are some of its standout features and benefits:

• High Reliability: Engineered for durability, our circuit breakers ensure a long service life and minimal maintenance.
• Advanced Technology: Utilizing both spring type and permanent magnetic mechanisms, these breakers offer rapid operation and enhanced safety.
• Compact Design: The innovative design allows for space-saving installation without compromising performance.
• User-Friendly Operation: Easy to operate, our circuit breakers are equipped with intuitive controls for seamless functionality.
• Compliance and Safety: Meets ISO9001:2000 certification, ensuring adherence to quality management standards.

Product Structure

The operating mechanism comprises two main components: the spring type mechanism and the permanent magnetic type mechanism.

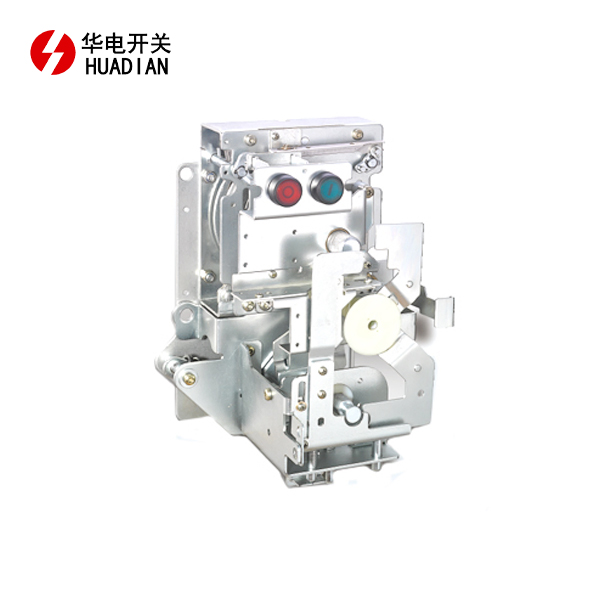

• Spring Type Mechanism: Utilizes stored mechanical energy to operate, offering quick and efficient actuation.

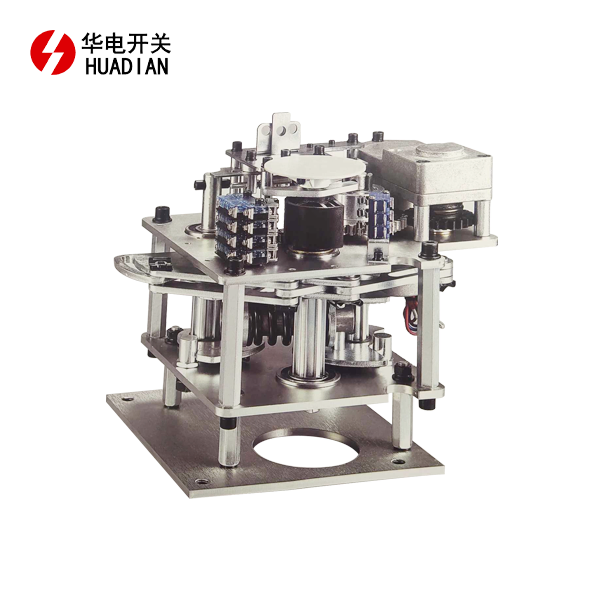

• Permanent Magnetic Type Mechanism: Provides a consistent and reliable operation through magnetic forces, ensuring excellent performance under varying conditions.

This dual-structure design ensures that users can select the best option suited for their specific operational needs.

Main Technical Parameters of the Product

• Rated Voltage: 40.5 kV
• Rated Current: Up to 1250 A
• Short-Circuit Current: Up to 31.5 kA
• Insulation Level: 95 kV
• Operating Mechanism Type: Spring Type and Permanent Magnetic Type
• Installation Type: Indoor

These parameters highlight the robust capabilities of our Operating Mechanism for ZN85-40.5T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker, making it suitable for various high-demand applications.

Product Use Conditions

Our operating mechanism is designed to operate effectively in diverse environments. Key conditions include:

• Ambient Temperature: -25°C to +40°C
• Altitude: Up to 2000 meters
• Humidity: Relative humidity not exceeding 95%
• Pollution Level: Suitable for moderately polluted environments

These conditions ensure that our circuit breakers maintain optimal performance, even in challenging situations.

Product Application Scope and Field

The ZN85-40.5T/M circuit breaker is extensively used across several industries, including:

• Power Plants: Essential for safe and efficient electrical distribution.
• Metallurgy: Protects equipment and maintains operational integrity.
• Petrochemical: Critical for safety in hazardous environments.
• Railways and Mining: Ensures reliable power supply and system protection.
• Urban Construction: Integral to modern infrastructure development.

Our product's versatility makes it a preferred choice for medium and large enterprises engaged in these sectors.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

At Shaanxi Huadian, we offer OEM services tailored to meet the unique needs of our clients. Our team collaborates closely with customers to deliver customized solutions that enhance operational efficiency and safety. With our state-of-the-art production facilities and experienced R&D team, we are committed to providing products that align perfectly with your specifications.

FAQ

1. What is the lead time for delivery?

• Our standard lead time is 4-6 weeks, depending on the order size and customization requirements.

2. Can I request a product sample?

• Yes, we offer samples for testing and evaluation. Please contact us for more details.

3. What certifications do your products have?

• Our products are ISO9001:2000 certified, ensuring compliance with international quality standards.

4. Do you provide technical support?

• Absolutely! Our team is available to assist with product application, troubleshooting, and training.

Contact Us

For more information about the Operating Mechanism for ZN85-40.5T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker or to discuss your specific requirements, please reach out to us: austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com.
