2. **Rated Current**: This circuit breaker can withstand a continuous current of up to 630 A, suitable for various operational demands.
3. **Tripping Capacity**: It features a robust tripping capacity, capable of cutting off fault currents up to 20 kA, providing enhanced protection against electrical faults.
4. **Tripping Time**: The circuit breaker ensures swift disconnection with a tripping time of less than 30 milliseconds, minimizing the risk of equipment damage.
5. **Operation Mode**: The ZW32-12M supports multiple operation modes, including manual and electric, allowing for versatile installation and control options.
6. **Distance**: After disconnection, the minimum contact distance is maintained at 10 mm, ensuring safety and reliability during operation.
7. **Delivery**: Products are delivered via express shipping or standard freight, depending on customer preferences and urgency.
8. **Packaging**: Each circuit breaker is securely packaged in a sturdy wooden crate to prevent damage during transit, ensuring it arrives in optimal condition.
--- Feel free to adjust any sections as needed!

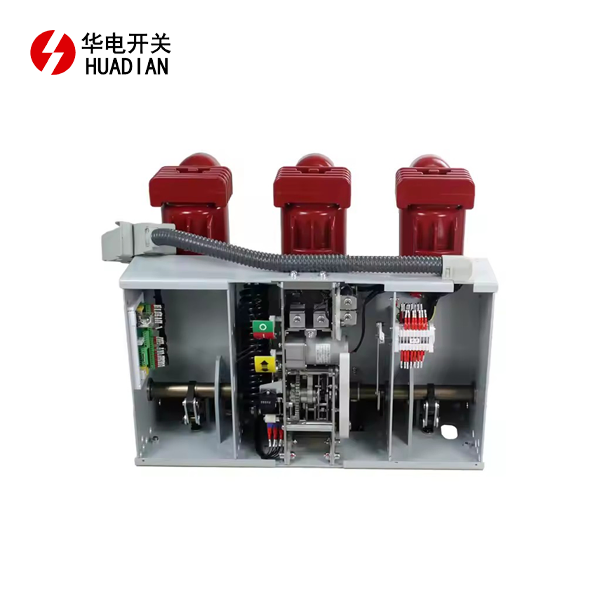

Operating Mechanism for ZW32-12M Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type
IntroductionWelcome to Shaanxi Huadian Electric Co., Ltd., your trusted partner in high-quality electrical solutions! Today, we are excited to introduce the Operating Mechanism for the ZW32-12M Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type. Designed with cutting-edge technology, this circuit breaker is engineered for reliability and efficiency, making it a perfect choice for various industrial applications.
Our commitment to quality and innovation ensures that each product meets international standards, providing you with peace of mind and safety in your electrical operations.
Product Features and Advantages
The ZW32-12M Operating Mechanism offers a multitude of features that set it apart from conventional circuit breakers:
- Permanent Magnetic Operation: Utilizes a permanent magnetic mechanism that enhances reliability and reduces maintenance needs.
- Intelligent Design: Equipped with advanced intelligent features for enhanced monitoring and control, improving overall system performance.
- Compact Size: Space-efficient design that facilitates installation in diverse environments, including outdoor settings.
- Durability: Constructed from high-quality materials to withstand harsh weather conditions, ensuring long-term reliability.
- High Break Capacity: Capable of handling high fault currents, providing superior protection to your electrical systems.
These features make the ZW32-12M not just a circuit breaker but a comprehensive solution for your electrical infrastructure.
Product Structure
The Operating Mechanism for ZW32-12M consists of several key components that work in harmony:
- Permanent Magnetic Actuator: Initiates the operation with minimal energy consumption.
- Spring Mechanism: Ensures rapid switching and reliable operation under various conditions.
- Control Unit: Interfaces with your existing systems, providing real-time data and diagnostics.
- Housing: Designed for outdoor use, providing IP protection against dust and moisture.
Each component is meticulously crafted to ensure seamless operation and longevity, making it ideal for demanding environments.
Main Technical Parameters
Here are the essential technical specifications of the ZW32-12M Operating Mechanism:
- Rated Voltage: 12 kV
- Rated Current: Up to 1250 A
- Breaking Capacity: 20 kA
- Insulation Level: 25 kV
- Operating Mechanism Type: Permanent Magnetic
- Operating Temperature: -25°C to +40°C
- Weight: Approximately 150 kg
These parameters highlight the robustness and efficiency of our product, making it suitable for a variety of applications.
Product Use Conditions
The Operating mechanism for ZW32-12M Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type is designed for use in:
- Outdoor installations: Perfect for substations, distribution networks, and renewable energy systems.
- Extreme climates: Operates effectively in both high and low temperatures, ensuring reliability in challenging environments.
- Dusty or humid conditions: Its IP protection ensures optimal performance in various environmental conditions.
This versatility makes it a preferred choice for industries like power generation, metallurgy, and urban construction.
Product Application Scope and Field
The Operating Mechanism for ZW32-12M is widely applicable across multiple sectors:
- Power Plants: Enhances the safety and reliability of energy distribution systems.
- Metallurgy and Petrochemicals: Provides robust electrical protection in heavy industrial environments.
- Railways and Mining: Ensures continuous operation in critical applications.
- Urban and Rural Construction: Supports electrical infrastructure development in both urban and rural areas.
Our circuit breakers are trusted by industry leaders for their performance and reliability.
OEM Service
At Shaanxi Huadian, we understand the diverse needs of our customers. Our OEM services offer tailored solutions, allowing you to customize the Operating Mechanism for ZW32-12M to suit your specific requirements. We collaborate closely with our partners to ensure that every aspect of the product meets your unique needs, from design to functionality.
FAQ
1. What is the lifespan of the ZW32-12M Operating Mechanism?
The ZW32-12M is designed for a long service life, typically exceeding 20 years with proper maintenance.
2. Can the product be integrated with existing systems?
Yes, the intelligent features allow for easy integration with your current electrical systems.
3. What support do you offer post-purchase?
We provide comprehensive technical support, ensuring you have the resources you need for successful implementation and operation.
4. How do I ensure the right specifications for my application?
Contact our technical support team, who will guide you in selecting the appropriate specifications based on your needs.
Contact Us
For Operating mechanism for ZW32-12M Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type, please contact us at:
Email: austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com
Our dedicated team is here to assist you with any inquiries and ensure you receive the best solutions for your electrical needs.
