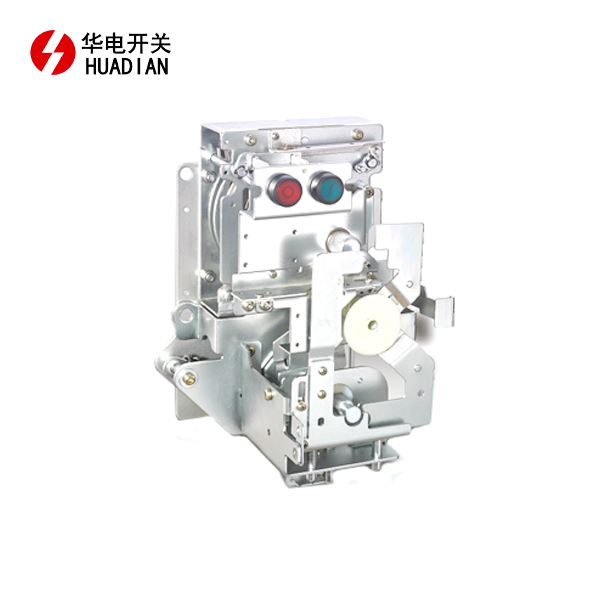

Operating mechanism for ZN63A(VS1)- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker

Operating mechanism for ZN63A(VS1)- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker Introduction

Welcome to the future of electrical protection with the Operating mechanism for ZN63A(VS1)- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker. Designed and manufactured by Shaanxi Huadian Electric Co., Ltd., this advanced mechanism ensures reliable performance in a variety of settings, making it a perfect fit for modern electrical systems. Our circuit breakers are engineered to offer maximum safety and efficiency, ensuring your operations run smoothly and securely.

Product Features and Advantages

The Operating mechanism for ZN63A(VS1)- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker boasts a range of features that set it apart from conventional circuit breakers:

• Spring and Permanent Magnetic Operation: This innovative dual operating mechanism provides fast and reliable tripping action, enhancing system safety and reducing downtime.
• High Performance: With a rated current capacity and superior interruption capability, this breaker is designed for demanding applications, ensuring optimal protection for your electrical systems.
• Compact Design: Our circuit breaker is designed to occupy minimal space, making it suitable for installations with limited room.
• Durability and Reliability: Built from high-quality materials, the circuit breaker guarantees long-lasting performance even under harsh conditions.

Product Structure

The structure of the Operating mechanism for ZN63A(VS1)- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker consists of key components that work in harmony to deliver unparalleled functionality:

• Spring Mechanism: This component stores energy and releases it when required, ensuring rapid tripping during fault conditions.
• Permanent Magnetic Type: The magnetic component enhances the mechanism's reliability and efficiency, providing consistent performance over its lifecycle.
• Control Assembly: Equipped with advanced technology, this assembly ensures accurate operation and monitoring of the circuit breaker's status.

Main Technical Parameters of the Product

Product Use Conditions

The ZN63A(VS1)-12T/M circuit breaker operates under a variety of conditions:

• Ambient Temperature: -25°C to +40°C
• Altitude: Up to 1000 meters above sea level
• Humidity: Relative humidity up to 95% (at 25°C)
• Installation Location: Indoor use is recommended for optimal performance.

Product Application Scope and Field

This circuit breaker is widely used across numerous industries, including:

• Power Plants: Essential for safeguarding generating units.
• Metallurgy: Protecting equipment from overloads.
• Petrochemicals: Ensuring safe operation in explosive environments.
• Railways: Providing reliable protection for signaling and power systems.
• Urban Construction: Supporting the electrical infrastructure of cities.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

At Shaanxi Huadian Electric Co., Ltd., we offer tailored OEM services to meet the specific needs of our clients. Whether you require unique specifications or branding, our team is dedicated to delivering customized solutions that enhance your operational efficiency.

FAQ

Q: What is the lifespan of the Operating mechanism for ZN63A(VS1)- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker ?
A: Our circuit breakers have a mechanical life of 10,000 operations and an electrical life of 2,000 operations under standard conditions.

Q: Can I use this circuit breaker outdoors?
A: The ZN63A(VS1)-12T/M is designed for indoor use to ensure optimal performance and protection.

Q: What certifications does this product hold?
A: Our circuit breakers comply with ISO9001:2000 quality system certification and meet international standards for electrical safety.
