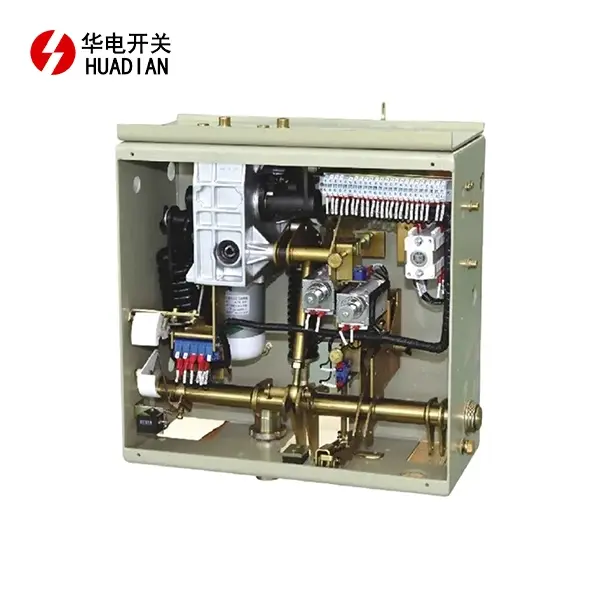

Operating mechanism for VEGM- 24T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker

Operating mechanism for VEGM- 24T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker Introduction

Huadian is professional Operating mechanism for VEGM- 24T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker manufacturers and suppliers in China, For quotation, contact us now.

Welcome to our comprehensive guide on the Operating Mechanism for VEGM-24T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker. This advanced technology is crucial in ensuring the safe and reliable operation of electrical systems across various industries. With a commitment to quality and innovation, Shaanxi Huadian Electric Co., Ltd. specializes in the research, development, and manufacturing of vacuum circuit breakers that meet the highest international standards.

Product Features and Advantages

The VEGM-24T/M operating mechanism is designed with efficiency and safety in mind. Here are some key features and advantages:

• Dual Mechanism Options: Choose between the spring type for quick operation and the permanent magnetic type for reliable performance in varied conditions.
• Robust Construction: Built to withstand harsh environments, ensuring durability and longevity.
• High Safety Standards: Incorporates multiple safety features to protect both equipment and personnel.
• Ease of Maintenance: Designed for easy access and servicing, reducing downtime and operational costs.
• Compatibility: Seamlessly integrates with existing systems, making it a versatile choice for various applications.

Product Structure

The operating mechanism consists of the following main components:

• Spring Mechanism: Utilizes mechanical energy stored in springs to facilitate rapid switching operations.
• Permanent Magnet Assembly: Provides consistent operational reliability, using permanent magnets for efficient circuit control.
• Control Unit: Features advanced control systems that ensure precise operation and monitoring of the circuit breaker.
• Safety Interlocks: Prevents accidental operation and enhances user safety.

Main Technical Parameters

Understanding the technical specifications of the Operating Mechanism for VEGM-24T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker is essential for effective application:

• Voltage Rating: Up to 24kV
• Current Rating: 630A to 2500A
• Mechanical Life: Minimum 10,000 operations
• Electrical Life: Minimum 5000 operations
• Insulation Level: 42kV
• Weight: Approximately 500 kg (varies by configuration)

Product Use Conditions

The VEGM-24T/M operating mechanism is designed for optimal performance under the following conditions:

• Ambient Temperature: -40°C to +40°C
• Humidity: Up to 95% non-condensing
• Altitude: Up to 2000 meters
• Seismic Rating: Designed to withstand seismic activities in compliance with relevant standards.

Product Application Scope and Field

Our operating mechanism is widely used across various sectors, including:

• Power Generation: Ensures reliable operation in power plants and substations.
• Metallurgy and Petrochemicals: Safeguards critical operations in high-demand environments.
• Railways and Mining: Provides robust solutions for transportation and extraction industries.
• Urban Construction: Plays a vital role in the electrical infrastructure of modern cities.
• Rural Power Grid Transformation: Facilitates improvements in rural electrical distribution.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

At Shaanxi Huadian Electric Co., Ltd., we offer tailored OEM services to meet your specific needs. Our expert team works closely with clients to design and manufacture circuit breakers that fit unique operational requirements. We ensure that our products adhere to international standards while maintaining competitive pricing and efficient delivery.

FAQ

Q1: What is the lifespan of the VEGM-24T/M operating mechanism?
A1: The mechanical life is designed for a minimum of 10,000 operations, and the electrical life is 5,000 operations.

Q2: Can this product be customized?
A2: Yes, we offer OEM services to customize the operating mechanism according to your specific requirements.

Q3: What certifications does the product have?
A3: The VEGM-24T/M operating mechanism meets ISO9001:2000 quality system certification and other relevant standards.

Q4: How can I place an order?
A4: You can contact us via email, phone, or through our official website to discuss your requirements and get a quote.
