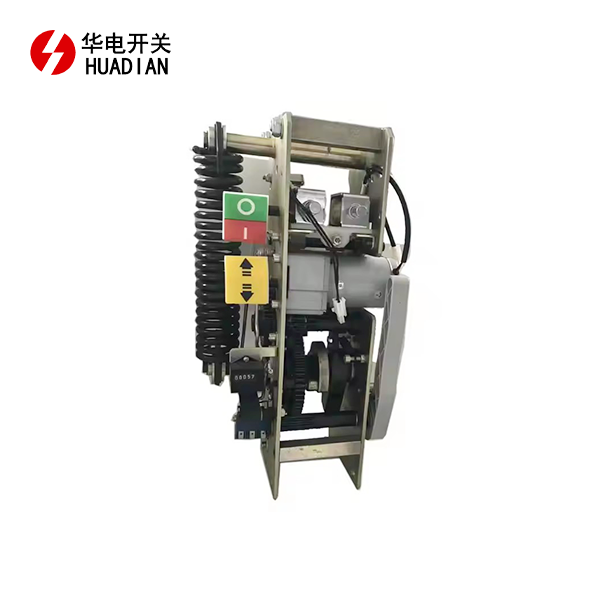

Operating mechanism for ZW20-12 Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type

Operating mechanism for ZW20-12 Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type Introduction

The ZW20-12 Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type is a state-of-the-art solution for controlling electrical circuits in outdoor environments. This breaker is engineered with advanced permanent magnetic technology, making it a reliable and high-performing choice for power distribution. Designed by Shaanxi Huadian Electric Co., Ltd., the breaker meets stringent industry standards, ensuring long-term durability, operational efficiency, and safety. It is ideal for medium to large companies seeking a robust solution to manage high-voltage networks efficiently.

Product Features and Advantages

• Permanent Magnetic Operating Mechanism: The key feature of the ZW20-12 breaker is its permanent magnetic operating mechanism, offering stable performance with minimal mechanical wear. This results in reduced maintenance costs and extended operational life.

• Intelligent Control: Equipped with an intelligent type mechanism, the breaker allows remote monitoring and control, which significantly improves efficiency in modern power management systems.

• High Reliability: Designed for harsh outdoor conditions, the breaker performs consistently in a wide range of environments, ensuring power continuity even under extreme weather.
• Energy Efficiency: With its vacuum interrupter technology, the breaker minimizes power loss during operation, contributing to an overall more energy-efficient electrical system.

Product Structure

The ZW20-12 breaker is constructed using high-grade materials to ensure longevity and operational reliability. The breaker consists of:

• Vacuum Interrupter: This component is responsible for extinguishing the arc that forms when a circuit is interrupted, ensuring safety and reducing wear on the system.
• Magnetic Actuator: The permanent magnetic actuator provides precise and efficient operation, making the breaker ideal for high-frequency switching applications.
• Control Unit: The intelligent control unit offers advanced monitoring features, allowing for real-time diagnostics and remote operation, which improves system management and reduces downtime.

Main Technical Parameters

Product Use Conditions

The ZW20-12 Outdoor Permanent Magnetic Vacuum Circuit Breaker is designed to operate in diverse outdoor environments, ensuring reliable performance in extreme weather conditions. Key operating conditions include:

• Ambient Temperature: -40°C to +40°C
• Altitude: ≤ 1000 meters
• Relative Humidity: ≤ 95% (at 25°C)
• Pollution Level: Class III

Product Application

This Operating mechanism for ZW20-12 Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type is widely used in:

• Power Plants: Ensuring safe and efficient circuit control in high-voltage environments.
• Metallurgy: Managing electrical loads in harsh industrial conditions.
• Petrochemical Plants: Offering reliable power distribution in explosive environments.
• Railways and Urban Infrastructure: Providing stable electrical control in transportation and urban utility networks.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Services

Shaanxi Huadian Electric Co., Ltd. offers OEM services tailored to your specific needs. Our team works closely with clients to provide customized solutions, ensuring that each Operating mechanism for ZW20-12 Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type meets exact operational requirements. From product design to final production, we guarantee top-tier quality and reliability for every custom project.

FAQ

1. What is the lifespan of the ZW20-12 breaker?
   The breaker is designed for a mechanical lifespan of 30,000 operations, making it suitable for long-term use in high-demand environments.

2. Can the breaker be used in extremely cold environments?
   Yes, the breaker operates efficiently in temperatures as low as -40°C, making it ideal for regions with harsh winters.

3. Does the breaker support remote control?
   Yes, the intelligent type model includes remote control and monitoring capabilities, enhancing operational efficiency.

4. Is the ZW20-12 breaker suitable for industrial applications?
   Absolutely. It is designed for use in power plants, metallurgy, petrochemicals, and other high-demand industries.

5. What kind of maintenance does this breaker require?
   The permanent magnetic operating mechanism reduces mechanical wear, requiring minimal maintenance compared to traditional breakers.

Contact Us

For more information about the Operating Mechanism for ZW20-12 Outdoor Permanent Magnetic Vacuum Circuit Breaker/Intelligent Type or to place an order, please contact us at:
Email: austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com

Shaanxi Huadian Electric Co., Ltd. is committed to providing high-quality products and exceptional customer service. Let us help you optimize your electrical systems today!
