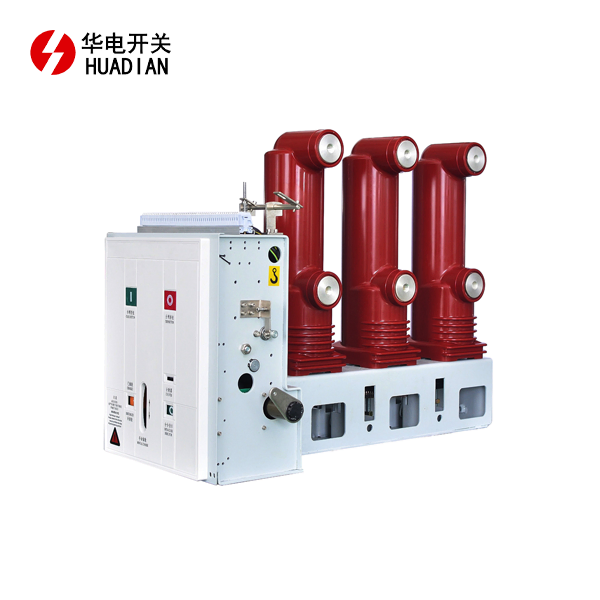

ZN85-40.5C Side-Mounted Vacuum Circuit Breaker

ZN85-40.5C Side-Mounted Vacuum Circuit Breaker Introduction

The ZN85-40.5C Side-Mounted Vacuum Circuit Breaker is a robust, reliable, and high-performance product designed by Shaanxi Huadian Electric Co., Ltd. to meet the needs of industries like power plants, petrochemicals, railways, and urban infrastructure.

This vacuum circuit breaker provides superior electrical insulation, efficient switching, and is designed for heavy-duty use. It stands out for its side-mounted design, offering seamless integration into various electrical systems and delivering safe, consistent operations under high voltage conditions.

Product Features and Advantages

• Superior Arc Quenching Technology: The ZN85-40.5C uses advanced vacuum technology to quickly extinguish arcs, enhancing operational safety and prolonging the device's lifespan.
• Compact and Space-Saving Design: With its side-mounted structure, this breaker fits into compact setups without compromising performance.
• High Durability: Made from top-tier materials, it can endure tough environments and high-frequency operations, ensuring minimal downtime.
• Easy Installation and Maintenance: The design simplifies both installation and ongoing maintenance, reducing labor and service costs.
• Compliance with International Standards: The breaker is compliant with ISO9001:2000 and other relevant certifications, ensuring reliability and safety.

Product Structure

The ZN85-40.5C Side-Mounted Vacuum Circuit Breaker is crafted with precision to offer durability and functionality. The side-mounted feature allows for easy integration into existing systems, and the vacuum interrupter guarantees effective arc control. The structural components are designed for high stability under various electrical conditions, making it an excellent choice for complex industrial applications.

Main Technical Parameters of the Product

• Rated Voltage: 40.5 kV
• Rated Current: 630A - 3150A
• Rated Short-Circuit Breaking Current: 25kA - 40kA
• Mechanical Life: 10,000 operations
• Frequency: 50/60 Hz
  These parameters highlight the ZN85-40.5C's capability to handle significant electrical loads, making it suitable for medium to large-scale industrial operations.

Product Use Conditions

The ZN85-40.5C performs optimally under the following conditions:

• Altitude: ≤ 1000 meters
• Ambient Temperature: -15°C to +40°C
• Humidity: ≤ 90%
  This vacuum circuit breaker is designed to function efficiently in various environmental conditions, providing stability and performance across different climates and settings.

Product Application Scope and Field

The ZN85-40.5C Side-Mounted Vacuum Circuit Breaker is widely used in several key industries:

• Power Generation: Suitable for power plants requiring high-stability circuit breakers to maintain uninterrupted power.
• Metallurgy: Capable of handling the heavy electrical demands of metallurgical operations.
• Urban Construction and Grid Upgrades: Ideal for large-scale urban development projects and rural grid modernization.
• Petrochemicals: Its high voltage capabilities make it perfect for the petrochemical industry’s complex electrical systems.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Services

At Shaanxi Huadian Electric Co., Ltd., we gladly offer OEM administrations to meet your particular necessities. Whether you require custom arrangements, marking, or specialized changes, our devoted Research and development group is prepared to help. We work intimately with you to guarantee our answers adjust impeccably with your specialized and functional necessities. Our cooperative methodology ensures that every item measures up to your assumptions as well as improves your effectiveness and execution in the field. Trust us to convey inventive and dependable arrangements customized to your one of a kind difficulties and targets. Your fulfillment is our need!

FAQ

1.What makes the ZN85-40.5C unique?
The side-mounted design and advanced vacuum technology provide a space-saving, high-efficiency solution for industries with demanding electrical needs.

2.How long is the lifespan of the circuit breaker?
The ZN85-40.5C Side-Mounted Vacuum Circuit Breaker is built to last, with a mechanical life of up to 10,000 operations.

3.Can the product be customized?
Yes, we offer OEM services tailored to specific industrial applications, ensuring your unique requirements are met.

4.What industries can benefit from this product?
It is ideal for power plants, urban grid projects, petrochemical industries, railways, and metallurgy.

5.How do I maintain the ZN85-40.5C?
Regular maintenance is straightforward, with easily accessible components and clear operational guidelines.
