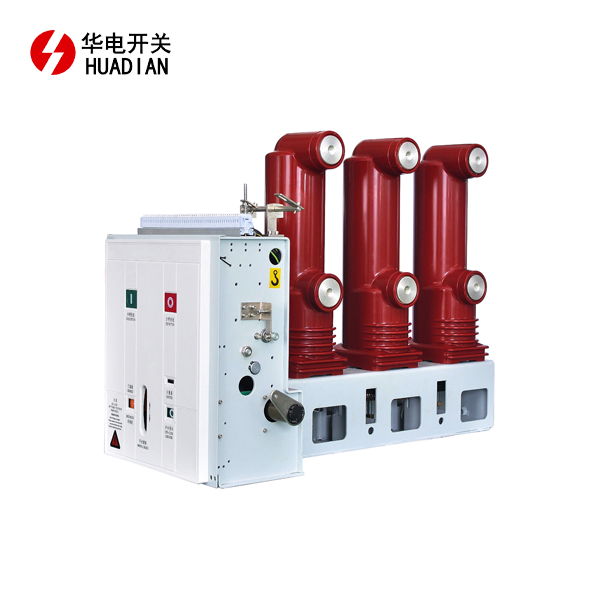

VEGM-40.5C Side-Mounted Vacuum Circuit Breaker

VEGM-40.5C Side-Mounted Vacuum Circuit Breaker Introduction

The VEGM-40.5C Side-Mounted Vacuum Circuit Breaker is an advanced electrical protection solution designed for medium to high-voltage applications. Engineered for reliability, safety, and efficiency, this vacuum circuit breaker is an ideal choice for industries requiring robust and durable protection systems. Manufactured by Shaanxi Huadian Electric Co., Ltd., a trusted name in the field, the VEGM-40.5C excels in power plants, metallurgy, petrochemicals, and many other sectors that demand consistent and secure electrical performance.

Product Features and Advantages

The VEGM-40.5C Side-Mounted Vacuum Circuit Breaker offers several key benefits that set it apart:

• High Durability: Built with top-grade materials to withstand demanding industrial environments.
• Superior Electrical Performance: Ensures effective arc extinguishing, reducing power outages and damage.
• Compact Design: The side-mounted structure saves space, making it suitable for installation in tight spaces.
• Low Maintenance: Minimal servicing is required due to the reliable vacuum technology.
• ISO Certified: Manufactured under strict ISO9001:2000 quality guidelines, guaranteeing consistent performance.

Product Structure

The VEGM-40.5C Side-Mounted Vacuum Circuit Breaker features a robust, modular structure designed for efficient installation and maintenance:

• Side-Mounted Configuration: Enhances space efficiency and makes the unit easier to integrate into existing systems.
• Vacuum Interrupter: The core component responsible for breaking the circuit, offering high insulation and rapid arc extinguishing.
• Insulated Enclosure: Provides additional safety, protecting operators from high-voltage contact.
• Mechanical and Electrical Locking Mechanisms: Ensure secure operations and prevent accidental engagement or disengagement.

Main Technical Parameters

Product Use Conditions

The VEGM-40.5C Side-Mounted Vacuum Circuit Breaker is suitable for use under the following conditions:

• Ambient Temperature: -10°C to +40°C
• Altitude: ≤ 1000 meters above sea level
• Humidity: Relative humidity ≤ 85%
• Installation Environment: Indoors or in enclosed spaces free from corrosive gases and excessive dust.

Product Application Scope and Field

This vacuum circuit breaker is widely applied in various industrial sectors, including:

• Power Plants: Ideal for switching and protecting circuits in high-voltage power generation systems.
• Metallurgy and Mining: Provides essential electrical protection in environments where durability and reliability are paramount.
• Petrochemicals: Ensures safe electrical operations in hazardous environments.
• Urban Construction: Used in municipal power grids, contributing to stable and efficient energy distribution.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

At Shaanxi Huadian Electric Co., Ltd., we offer comprehensive OEM services to meet specific customer requirements:

• Customization Options: Tailored circuit breaker designs based on your voltage, current, and space requirements.
• Technical Support: Dedicated engineers to assist with VEGM-40.5C Side-Mounted Vacuum Circuit Breaker integration and troubleshooting.
• Packaging and Branding: Custom packaging solutions and branding services to fit your business needs.

FAQ

1. What makes the VEGM-40.5C different from other vacuum circuit breakers?
The side-mounted structure allows for more efficient space utilization, and it’s built for high durability and minimal maintenance, making it ideal for heavy-duty industries.

2. Can this breaker handle frequent switching operations?
Yes, the VEGM-40.5C is designed for frequent switching and has been tested for durability and performance in continuous operational environments.

3. Does Shaanxi Huadian provide after-sales support?
Absolutely! We offer full after-sales support, including technical guidance and troubleshooting assistance.

4. Can the VEGM-40.5C be used in outdoor applications?
This model is designed for indoor or enclosed installations. For outdoor applications, protective housing or enclosures are recommended.

5. How long is the warranty period?
We offer a comprehensive one-year warranty that covers defects in materials and workmanship.
