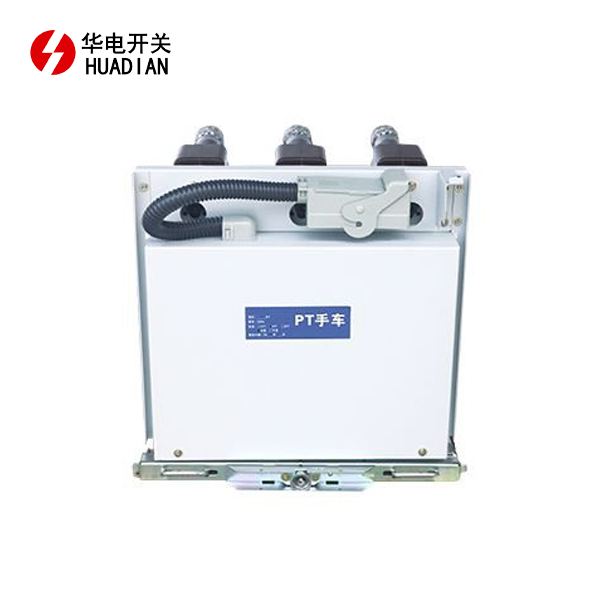

ZN63A(VS1)-24/PT Potential Transformer Handcart

ZN63A(VS1)-24/PT Potential Transformer Handcart Introduction

The ZN63A(VS1)-24/PT Potential Transformer Handcart is a specialized product designed for use in medium-voltage switchgear systems. Manufactured by Shaanxi Huadian Electric Co., Ltd., this handcart integrates advanced technology with durable materials to ensure reliable performance in electrical applications. It is specifically crafted for companies looking for stable, high-performing equipment that meets international safety and quality standards.

As a trusted name in the industry, Shaanxi Huadian delivers products that cater to industries like power plants, petrochemicals, mining, and railways, among others. With a focus on high efficiency and have long-term reliability, the ZN63A(VS1)-24/PT handcart is an excellent choice for large-scale procurement.

Product Features and Advantages

• High Performance: The ZN63A(VS1)-24/PT Potential Transformer Handcart is engineered to handle high electrical loads with maximum efficiency. It provides accurate voltage transformation for safe and stable power distribution.
• Durability: Made with top-tier materials, this handcart is resistant to wear and tear, making it suitable for long-term use in demanding environments.
• Safety Compliance: Certified with ISO9001:2000, this product meets international safety standards, ensuring secure and reliable operation.
• User-Friendly Design: The handcart is designed for ease of operation and maintenance, minimizing downtime and increasing operational efficiency.

Product Structure

The ZN63A(VS1)-24/PT Potential Transformer Handcart features a robust, compact design, integrating the potential transformer with the handcart mechanism for seamless installation in switchgear systems. Its modular structure allows for easy replacement and maintenance. This handcart is built with high-quality insulation materials to ensure safe operation even in high-voltage environments.

Main Technical Parameters of the Product

• Rated Voltage: 24kV
• Rated Current: 630A
• Frequency: 50/60Hz
• Mechanical Life: 10,000 operations
• Insulation Level: High insulation resistance to ensure stable performance under different conditions

Product Outline and Installation Dimensions:

(Unit:mm)

Product Use Conditions

The ZN63A(VS1)-24/PT Potential Transformer Handcart is designed for use in indoor environments and can withstand a wide range of temperatures and humidity levels. It operates effectively in areas with high pollution and industrial interference, making it ideal for heavy-duty applications. Ensure the handcart is installed in a dry, ventilated location to maintain optimal performance.

Product Application Scope and Field

This potential transformer handcart is widely used in medium-voltage electrical systems, specifically in industries  such as:

• Power generation and distribution
• Metallurgy and mining
• Railway and transportation infrastructure
• Petrochemical plants
• Urban construction and rural network transformation

Its versatility makes it an excellent choice for companies needing reliable equipment for voltage transformation and electrical distribution in various industrial settings.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Services

At Shaanxi Huadian, we understand the unique needs of our clients. That is why we offer customized OEM services, and allowing you to tailor the ZN63A(VS1)-24/PT handcart to meet specific requirements. Our experienced R&D team will work closely with your company to ensure that the product is manufactured to your exact specifications.

FAQ

1. What is the maximum voltage rating for the ZN63A(VS1)-24/PT Potential Transformer Handcart? The handcart has a maximum voltage rating of 24kV, making it suitable for medium-voltage applications.

2. Can this handcart be customized for specific applications? Yes, we offer OEM services to customize the handcart based on your company’s technical specifications.

3. Is the ZN63A(VS1)-24/PT handcart easy to maintain? Absolutely! The modular design ensures easy maintenance and replacement, reducing downtime and costs.

4. What certifications does this product have? The ZN63A(VS1)-24/PT handcart is ISO9001:2000 certified, guaranteeing its quality and compliance with international standards.

5. How long is the operational life of this product? The handcart has a mechanical life of up to 10,000 operations, ensuring long-term reliability.

Contact Us

If you’re interested in learning more about the ZN63A(VS1)-24/PT Potential Transformer Handcart or want to place an order, please feel free to contact us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com.
