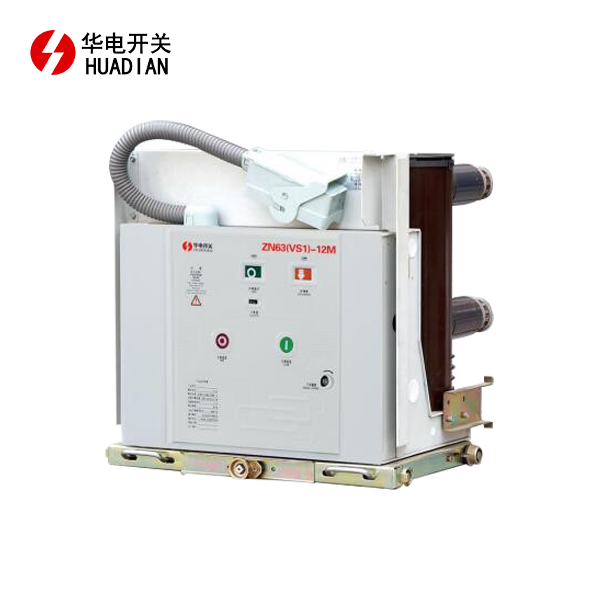

ZN63A(VS1)-24M Permanent Magnetic Vacuum Circuit Breaker
2. **Rated Current:** This circuit breaker supports a maximum continuous current of 1250 A, making it suitable for various industrial and commercial installations.
3. **Tripping Capacity:** With a robust tripping capacity of up to 31.5 kA, the ZN63A(VS1)-24M effectively interrupts fault currents, protecting your electrical systems from damage.
4. **Tripping Time:** The circuit breaker features a fast tripping time of less than 0.1 seconds, ensuring swift response to fault conditions and enhancing safety.
5. **Operation Mode:** The ZN63A(VS1)-24M operates in an electric mode, providing efficient and reliable circuit interruption with minimal user intervention.
6. **Distance:** After disconnection, the minimum contact distance is maintained at 10 mm, ensuring safety and reliability during operation.
7. **Delivery:** The product is available for shipment via express courier, sea freight, and air freight, providing flexible options to meet your delivery needs.
8. **Packaging:** Each unit is securely packaged in a wooden crate, ensuring protection during transit and safe delivery to your location.
ZN63A(VS1)-24M Permanent Magnetic Vacuum Circuit Breaker Introduction
The ZN63A(VS1)-24M Permanent Magnetic Vacuum Circuit Breaker from Shaanxi Huadian Electric Co., Ltd. is a state-of-the-art device designed for medium-voltage applications. This breaker is known for its exceptional reliability and durability, providing efficient power control and ensuring the safety of electrical systems in a variety of industries. With its permanent magnetic actuator and vacuum interrupter, the ZN63A(VS1)-24M offers superior performance, making it an ideal choice for demanding environments such as power plants, railways, and petrochemical industries.
Product Features and Advantages
- Permanent Magnetic Actuator: The ZN63A(VS1)-24M utilizes a permanent magnetic actuator that enhances operational stability, offering quick and reliable switching. This feature reduces mechanical wear, increasing the lifespan of the breaker.
- Vacuum Interruption Technology: By using vacuum interrupter technology, the breaker ensures efficient arc quenching, which minimizes power loss and enhances operational safety.
- Maintenance-Free Design: The minimal number of moving parts and the use of advanced materials result in a virtually maintenance-free product, reducing downtime and long-term operational costs.
- Energy Efficiency: The permanent magnetic mechanism reduces energy consumption, making the ZN63A(VS1)-24M an eco-friendly option.
- Compliance with International Standards: The breaker complies with ISO9001:2000 certification and other global safety standards, ensuring its suitability for international use.
Product Structure

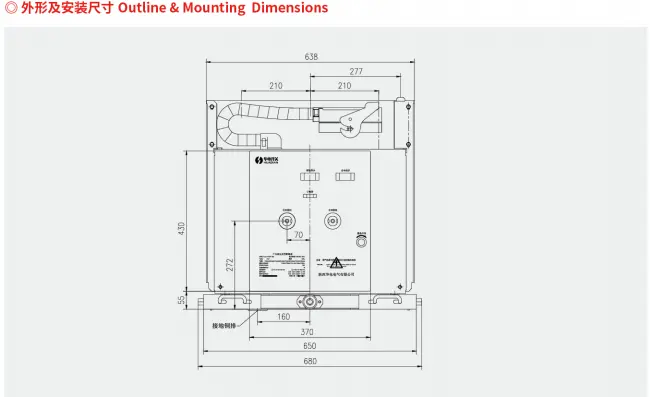

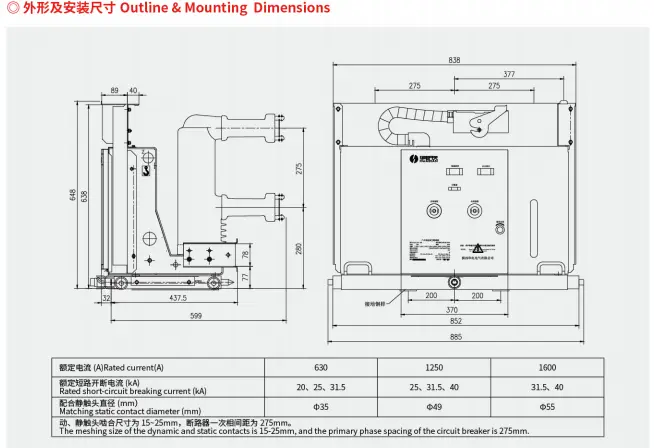

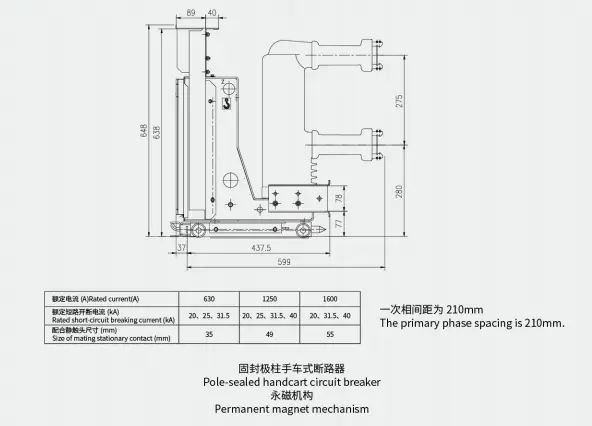

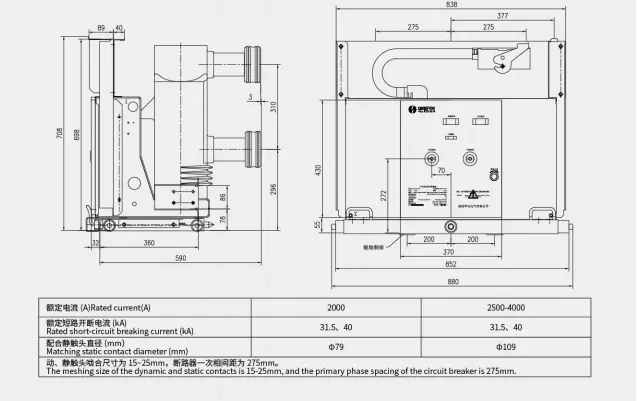

The ZN63A(VS1)-24M Permanent Magnetic Vacuum Circuit Breaker features a compact and modular design, facilitating easy integration into various electrical systems. Its structure includes:
- A vacuum interrupter that ensures reliable performance even in harsh conditions.
- A permanent magnetic actuator that enables quick switching with low power consumption.
- A robust metal-enclosed body, providing protection against environmental elements and enhancing safety during operation.
Main Technical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 24kV |
| Rated Current | Up to 1250A |
| Rated Short-Circuit Breaking Current | 31.5kA |
| Mechanical Life | 10,000 operations |
| Frequency | 50/60 Hz |
| Insulation Level | 125/50kV (lightning/impulse) |
 |
 |
 |
 |
Product Use Conditions
The ZN63A(VS1)-24M Permanent Magnetic Vacuum Circuit Breaker is designed to perform optimally under various environmental conditions. It operates effectively within temperatures ranging from -15°C to +40°C and at altitudes up to 1000 meters. Additionally, it is suited for use in areas with relative humidity levels below 90%.
Product Application Scope and Field
The ZN63A(VS1)-24M Permanent Magnetic Vacuum Circuit Breaker is versatile, making it suitable for:
- Power Plants: Ideal for controlling power flow and protecting equipment in power generation stations.
- Railways: Used for ensuring reliable power distribution and control in rail systems.
- Petrochemical Plants: Designed to withstand harsh industrial environments while providing secure electrical control.
- Mining: Offers dependable performance in underground mining operations, where power stability is crucial.
- Urban Construction: Used in substations and other infrastructure projects that require robust and reliable power management.
OEM Services
At Shaanxi Huadian Electric Co., Ltd., we provide tailored OEM services to meet the specific needs of our customers. From custom designs to flexible production schedules, we work closely with clients to deliver vacuum circuit breakers that align with their project requirements. With our fully automated production facilities and ISO9001:2000 certification, we guarantee high-quality products and timely delivery.
FAQ
Q1: What is the operational lifespan of the ZN63A(VS1)-24M breaker?
A: The breaker is designed for a mechanical life of over 10,000 operations, ensuring long-term reliability.
Q2: Can the ZN63A(VS1)-24M be used in extreme weather conditions?
A: Yes, the breaker is built to withstand temperatures ranging from -15°C to +40°C, making it suitable for a wide range of environmental conditions.
Q3: How does the permanent magnetic actuator benefit my operation?
A: The permanent magnetic actuator reduces mechanical wear, lowers maintenance needs, and improves overall operational efficiency.
Q4: What industries commonly use this type of circuit breaker?
A: The ZN63A(VS1)-24M is widely used in power plants, railways, petrochemical facilities, mining operations, and urban infrastructure projects.
Q5: Do you offer technical support for installation and maintenance?
A: Yes, we provide comprehensive technical support, including installation guidance and ongoing maintenance advice.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
