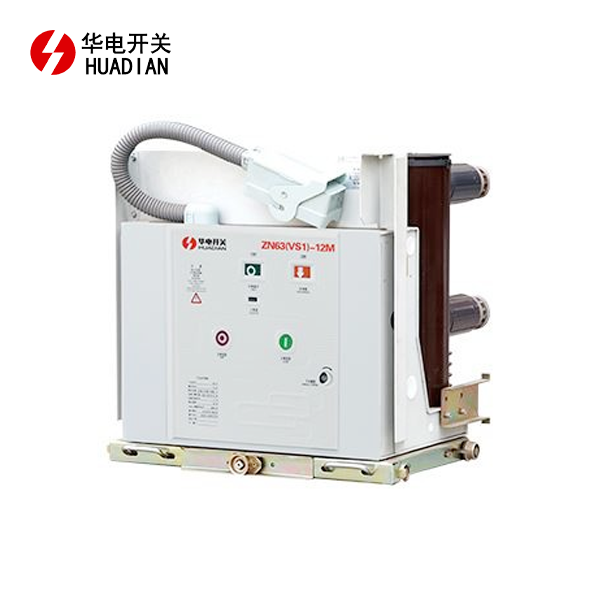

ZN63A(VS1)-12M Permanent Magnetic Vacuum Circuit Breaker

ZN63A(VS1)-12M Permanent Magnetic Vacuum Circuit Breaker Introduction

Shaanxi Huadian Electric Co., Ltd. created the cutting-edge ZN63A(VS1)-12M Permanent Magnetic Vacuum Circuit Breaker. As a cutting-edge high-tech company, we specialize in the development, production, and sale of vacuum circuit breakers.

It incorporates advanced materials and technologies to withstand harsh environments and frequent operations in industrial settings. Its intelligent monitoring system enables real - time performance assessment and predictive maintenance, minimizing downtime and maximizing productivity in complex industrial scenarios.

Product Features and Advantages

The ZN63A(VS1)-12M Permanent Magnetic Vacuum Circuit Breaker stands out with its permanent magnetic actuator technology, providing consistent mechanical operation with low maintenance requirements. The key advantages include:

• Durability: Its robust design ensures longevity in demanding environments.
• High breaking capacity: Capable of interrupting high fault currents, ensuring safe operation in case of electrical failures.
• Energy efficiency: The permanent magnetic actuator reduces energy consumption.
• Compact design: Saves space without compromising on performance.
• Low maintenance: Reduced mechanical wear translates to lower maintenance costs and longer service intervals.

Product Structure

This vacuum circuit breaker integrates several essential components that ensure optimal performance:

• Vacuum interrupter: The heart of the breaker, responsible for arc extinction.
• Permanent magnetic actuator: Ensures consistent and reliable opening and closing operations.
• Insulation components: High-quality materials provide excellent electrical insulation and withstand high voltages.
• Control cabinet: Equipped with advanced control circuits and protection devices, it precisely coordinates the operations of various components, realizes intelligent control of the breaker, and can quickly respond to abnormal conditions in the power grid, enhancing the overall safety and stability of the system.

Main Technical Parameters

These parameters ensure that the ZN63A(VS1)-12M meets the highest industry standards, making it suitable for use in various critical environments.

Product Use Conditions

The ZN63A(VS1)-12M Permanent Magnetic Vacuum Circuit Breaker is designed to operate in a wide range of environmental conditions, such as:

• Altitude: ≤ 1000m
• Ambient temperature: -25°C to +40°C
• Relative humidity: ≤ 95% at +20°C It is suitable for indoor use and offers reliable operation in conditions typical of power plants, substations, and heavy industrial areas.

Product Application Scope

The ZN63A(VS1)-12M is widely used in:

• Power plants and substations
• Metallurgy and mining industries
• Railway electrification systems
• Petrochemical plants
• Urban construction and rural network transformations
  Its versatility makes it a preferred choice for engineers seeking dependable circuit breakers for medium-voltage networks.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

Shaanxi Huadian Electric offers flexible OEM services to meet your specific project requirements. Our experienced R&D team can customize the ZN63A(VS1)-12M to your specifications, ensuring it integrates seamlessly into your electrical systems. We are committed to delivering high-quality solutions tailored to your needs. We provide comprehensive after - sales support to ensure the long - term stable operation of the customized products.

FAQ

Q1: What is the lifespan of the ZN63A(VS1)-12M?
A1: The breaker is designed for over 30,000 mechanical operations, ensuring long-term reliability.

Q2: Is the ZN63A(VS1)-12M suitable for harsh environments?
A2: Yes, its robust design and insulation materials make it highly resistant to harsh environmental conditions.

Q3: Can this breaker be used in high-altitude regions?
A3: Yes, it is designed to operate at altitudes up to 1000 meters. For higher altitudes, please contact us for customized solutions.

Q4: What maintenance is required for the permanent magnetic actuator?
A4: The actuator is virtually maintenance-free, providing a significant reduction in downtime.

Q5: How does the ZN63A(VS1)-12M improve energy efficiency?
A5: The permanent magnetic actuator reduces energy consumption compared to traditional spring-operated mechanisms.
