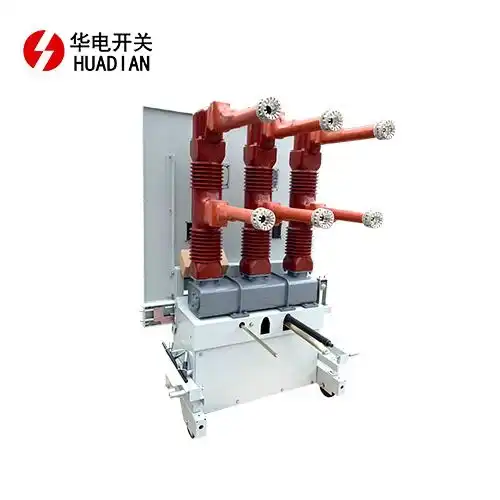

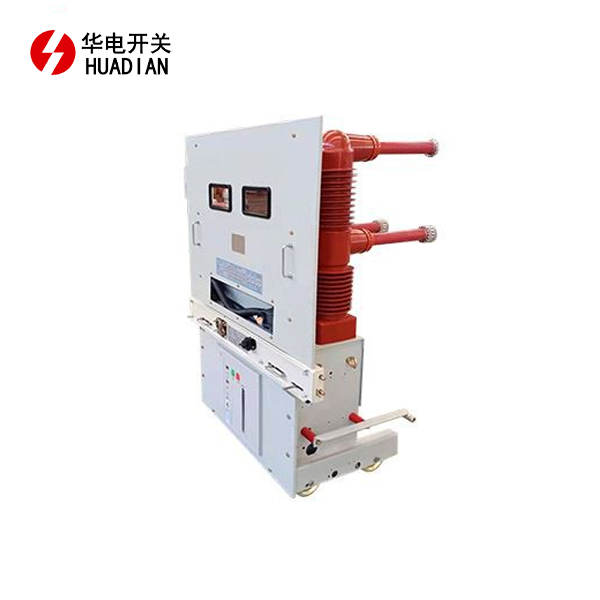

VEGM-40.5 High Voltage Sulfur Hexafluoride Circuit Breaker
**Rated Current:** This circuit breaker supports a continuous current of up to 1250 A, making it suitable for various operational demands.
**Tripping Capacity:** With a robust tripping capacity of 25 kA, the VEGM-40.5 effectively interrupts fault currents, safeguarding your electrical system.
**Tripping Time:** The circuit breaker features a rapid tripping time of less than 0.1 seconds, ensuring swift disconnection during fault conditions.
**Operation Mode:** The VEGM-40.5 operates in an electric mode, providing efficient and reliable control for high voltage applications.
**Distance:** After disconnection, the circuit breaker maintains a minimum contact distance of 10 mm, ensuring safe operation.
**Delivery:** We offer flexible delivery options, including express shipping and standard freight, to meet your project timelines.
**Packaging:** The VEGM-40.5 is securely packaged in durable wooden crates to prevent damage during transit.
--- Feel free to modify any section as needed!
VEGM-40.5 High Voltage Sulfur Hexafluoride Circuit Breaker Introduction
Welcome to Shaanxi Huadian Electric Co., Ltd., your trusted partner for high-quality circuit breaker solutions. Our VEGM-40.5 High Voltage Sulfur Hexafluoride Circuit Breaker is designed to provide outstanding performance, safety, and reliability in high-voltage applications. Whether you're looking for a solution for industrial power distribution or energy systems, this breaker offers superior features and industry-leading advantages. Explore the details below to see how our product can meet your needs.
Product Introduction
The Voltage Sulfur Hexafluoride Circuit Breaker is a cutting-edge device designed for high-voltage power distribution. Utilizing SF6 gas insulation, it boasts exceptional dielectric properties and stability, ensuring reliable performance in demanding environments. This circuit breaker is perfect for power plants, substations, and industrial applications requiring high voltage.Manufactured in our 10,000-square-meter facility, the VEGM-40.5 complies with international standards, including ISO9001:2000 certification, guaranteeing a trustworthy, high-performing product.
Product Features and Advantages
- Superior Insulation with SF6 Gas: Sulfur hexafluoride (SF6) offers excellent electrical insulation, reducing the risk of arcs and electrical faults.
- High Durability: Designed for long service life, the VEGM-40.5 can endure heavy usage in demanding environments with minimal maintenance.
- Safety-First Design: Safety mechanisms are built into every unit to prevent failures and protect the operator and equipment.
- Energy Efficiency: The low-energy consumption design ensures cost-effective operation without sacrificing performance.
- Compact Structure: Despite its advanced capabilities, the VEGM-40.5 remains compact, saving valuable space in your power system infrastructure.
Product Structure

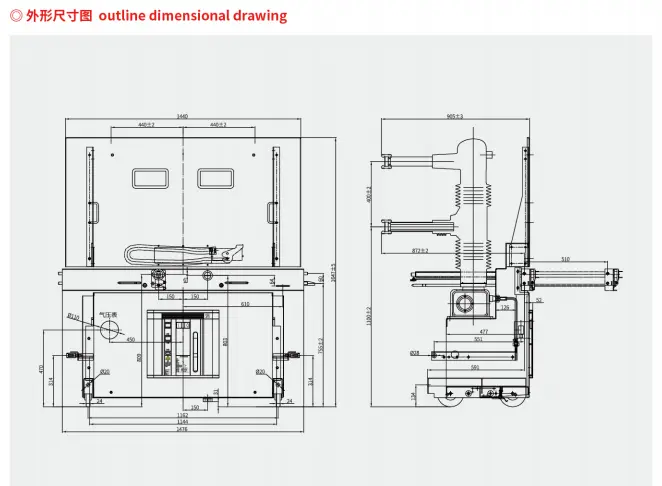

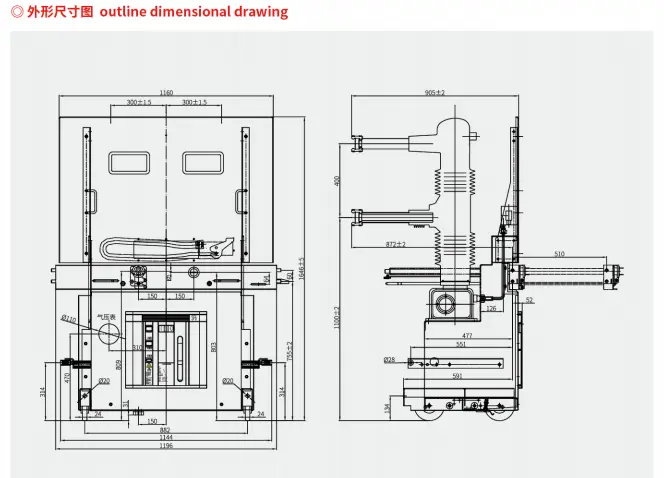

The VEGM-40.5 High Voltage Sulfur Hexafluoride Circuit Breaker features a robust, modular design that simplifies installation and maintenance. It consists of:
- Main Housing: Crafted from high-strength materials for durability and protection.
- Interrupter Unit: The heart of the breaker, designed to handle high voltage loads with precision.
- Control Mechanism: An automated system ensuring accurate and safe operation.
- Insulation Components: Using SF6 gas as the insulating medium, these components maintain optimal dielectric strength and thermal stability.

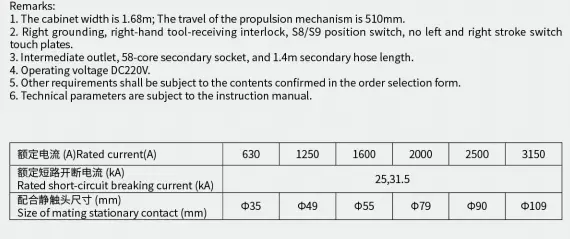

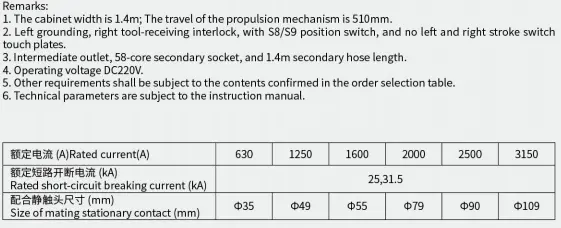

Main Technical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 40.5 kV |
| Rated Current | 630 A /1250 A /1600 A / 2000 A / 3150 A |
| Rated Short-Circuit Breaking Current | 25 kA / 31.5 kA |
| SF6 Gas Pressure | 0.3 MPa |
| Operating Mechanism | Spring / Motor Operated |
| Mechanical Endurance | 10,000 operations |
Product Use Conditions
The VEGM-40.5 High Voltage Sulfur Hexafluoride Circuit Breaker is designed to perform in a range of environmental conditions, including:
- Operating Temperature: -30°C to +40°C
- Humidity: 90% or less
- Altitude: Up to 2000 meters above sea level
- Seismic Resistance: Designed to withstand seismic activity up to 8 on the Richter scale
Product Application:
The VEGM-40.5 High Voltage Sulfur Hexafluoride Circuit Breaker is suitable for a variety of industries and applications, including:
- Power Plants: Ensures safe and reliable power distribution.
- Substations: Protects electrical networks by controlling high-voltage flows.
- Petrochemical Plants: Secures power supplies in hazardous environments.
- Metallurgy: Handles high voltage in smelting and manufacturing plants.
- Railways and Mining: Provides safe and efficient high-voltage control in demanding industries.
OEM Services
At Shaanxi Huadian Electric Co., Ltd., we offer comprehensive OEM services to customize the VEGM-40.5 Circuit Breaker to meet your specific needs. Whether you require modifications in design, performance, or features, our professional R&D team is ready to assist. We work closely with our clients to ensure that the VEGM-40.5 High Voltage Sulfur Hexafluoride Circuit Breakers align with their operational requirements.
FAQ
1. How often does the SF6 gas need to be replaced?
The SF6 gas typically lasts for many years, but regular maintenance and testing are required to ensure its performance. We recommend annual inspections.
2. Can the VEGM-40.5 handle fluctuating environmental conditions?
Yes, this circuit breaker is designed to function in a wide range of temperatures, humidity levels, and altitudes, making it ideal for diverse operating environments.
3. What kind of technical support is provided?
We offer full technical support, including installation guidance, troubleshooting, and application consulting. Our experts are available to assist you throughout the product lifecycle.
4. Is customization available for specific industry needs?
Yes, we provide OEM services to tailor the VEGM-40.5 to your unique operational demands.
5. What certifications does this product hold?
The VEGM-40.5 is certified under ISO9001:2000, ensuring it meets global quality standards.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information or to discuss your VEGM-40.5 High Voltage Sulfur Hexafluoride Circuit Breaker needs, please contact us at austinyang@hdswitchgear.com/pannie@hdswitchgear.com/rexwang@hdswitchgear.com.
