Operating mechanism for VEGM- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker

Operating mechanism for VEGM- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker Introduction

Welcome to the product details page for the Operating mechanism for VEGM- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker. This page is designed to provide you with comprehensive information about our high-quality circuit breakers that meet international standards, ensuring reliability and performance in various applications.

Product Introduction

The VEGM-12T/M Indoor Vacuum Circuit Breaker is engineered to provide exceptional performance in electrical protection. This innovative product is available in two variants: Spring Type and Permanent Magnetic Type, both of which are designed for indoor use. Whether you need a robust solution for power plants, metallurgy, petrochemical industries, or urban construction, the VEGM-12T/M circuit breaker is an ideal choice.

Product Features and Advantages

• High Reliability: Our operating mechanism ensures dependable circuit interruption, reducing the risk of electrical failures.
• Innovative Design: The VEGM-12T/M features a compact design that facilitates installation and maintenance, saving valuable space in your facility.
• Versatile Operation: The two types of mechanisms offer flexibility, allowing you to choose the best option for your specific needs.
• Safety First: Equipped with advanced safety features, this circuit breaker provides peace of mind during operation.

Product Structure

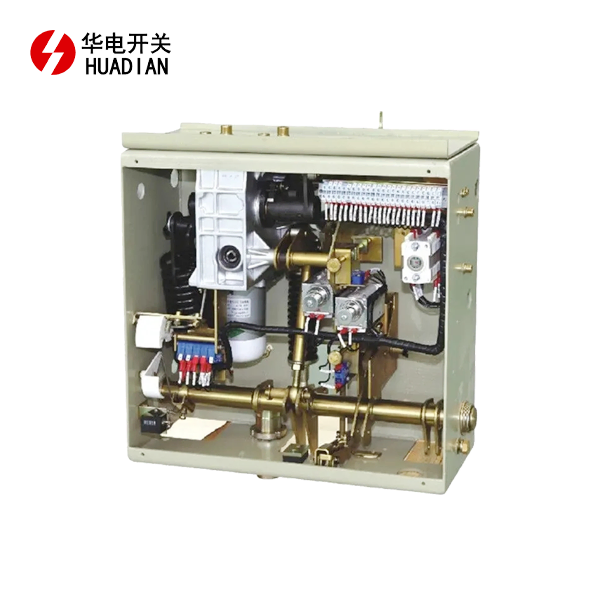

The operating mechanism of the VEGM-12T/M circuit breaker comprises several key components, including:

• Spring Mechanism: For the Spring Type, a robust spring system facilitates rapid operation during fault conditions.
• Permanent Magnet System: The Permanent Magnetic Type utilizes a magnetic mechanism to ensure reliable trip action.
• Control Circuit: An integrated control circuit allows for smooth operation and monitoring of the circuit breaker’s status.

Main Technical Parameters

• Rated Voltage: 12 kV
• Rated Current: Up to 1250 A
• Breaking Capacity: 25 kA
• Operating Mechanism: Spring Type and Permanent Magnetic Type
• Weight: Approximately 120 kg
• Dimensions: 900 mm x 400 mm x 600 mm

Product Use Conditions

The Operating mechanism for VEGM- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker is designed for the following conditions:

• Ambient Temperature: -30°C to +40°C
• Altitude: Up to 1000 meters
• Humidity: Relative humidity up to 95% at 25°C

Product Application Scope and Field

This circuit breaker is widely used in various sectors, including:

• Power Generation: Ideal for use in power plants for reliable protection of generators and transformers.
• Industrial Applications: Common in metallurgy, petrochemicals, and mining industries for robust electrical protection.
• Urban Infrastructure: Essential for urban construction and rural network transformation, ensuring efficient power distribution.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

At Shaanxi Huadian Electric Co., Ltd., we offer OEM services tailored to meet the specific needs of our customers. Whether you require customized designs or specific technical modifications, our experienced R&D team is ready to collaborate with you to achieve the perfect solution for your operational requirements.

FAQ

Q: What is the difference between the Spring Type and Permanent Magnetic Type?
A: The Spring Type utilizes a spring mechanism for faster operation, while the Permanent Magnetic Type employs a magnetic system for consistent reliability.

Q: Can I request a sample before placing a bulk order?
A: Yes, we encourage potential customers to request samples for testing and evaluation.

Q: What certifications do your products hold?
A: Our products are certified under the ISO9001:2000 quality management system, ensuring compliance with international standards.

Contact Us

For more information about the Operating mechanism for VEGM- 12T/M Spring Type and Permanent Magnetic Type Indoor Vacuum Circuit Breaker, or to discuss your specific needs, please feel free to reach out to us:

Email: austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com.

Phone: [+86-0917-6735 959 ]
Location: Baoji High-tech Development Zone, Shaanxi Province, China

Explore the exceptional capabilities of the VEGM-12T/M Indoor Vacuum Circuit Breaker and discover how it can enhance the safety and efficiency of your electrical systems. We are committed to providing high-quality products and excellent customer support, ensuring your satisfaction with every purchase.
