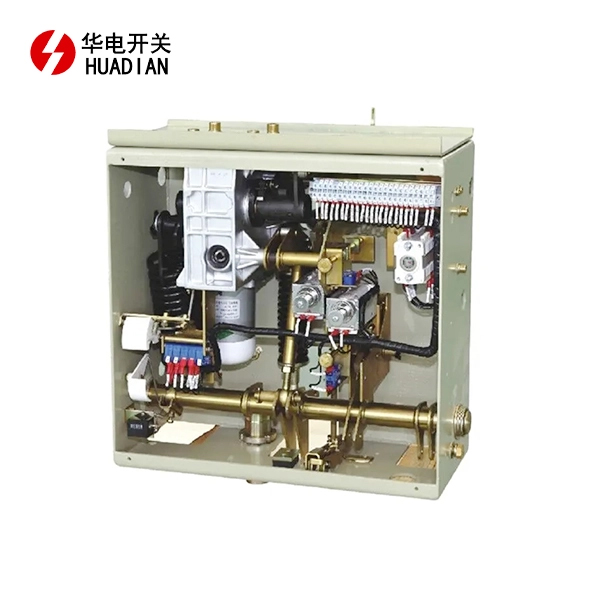

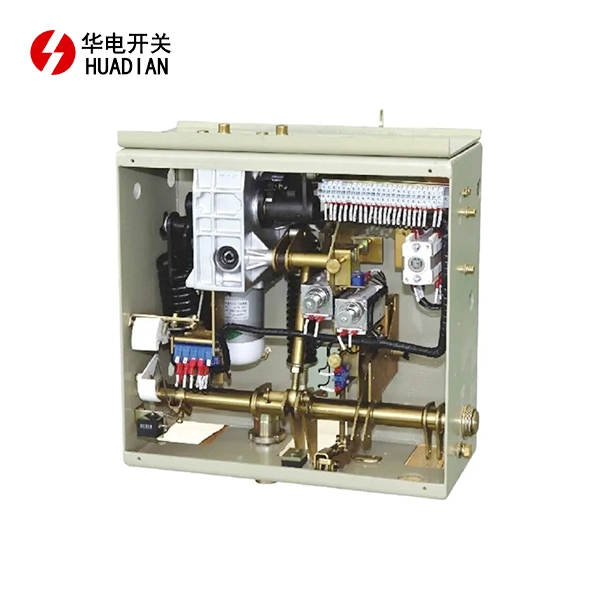

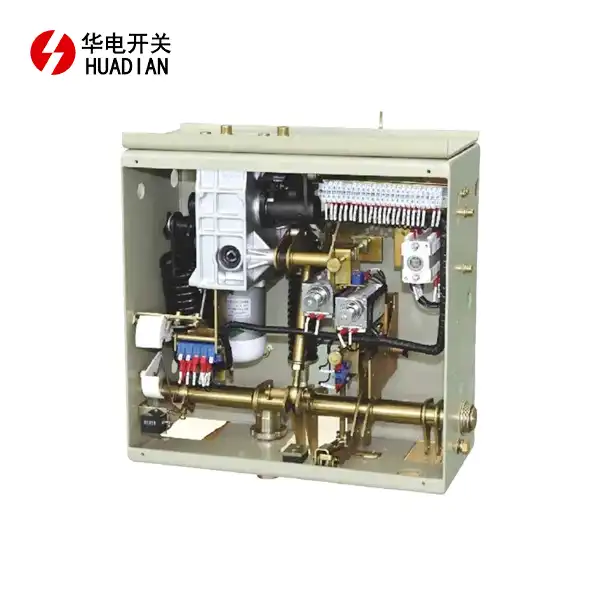

Operating mechanism for HSF6-40.5 Indoor High Voltage Sulfur Hexafluoride Circuit Breaker

Operating Mechanism for HSF6-40.5 Indoor High Voltage Sulfur Hexafluoride Circuit Breaker's Product Introduction

Welcome to the ultimate solution for your high-voltage needs: the Operating Mechanism for HSF6-40.5 Indoor High Voltage Sulfur Hexafluoride Circuit Breaker. Designed by Shaanxi Huadian Electric Co., Ltd., this state-of-the-art circuit breaker utilizes sulfur hexafluoride (SF6) gas for insulation and arc extinguishing, ensuring superior performance in demanding environments. Our product not only meets international quality standards but also reflects our commitment to innovation and excellence in the field of electrical equipment.

Product Features and Advantages

The Operating mechanism for HSF6-40.5 Indoor High Voltage Sulfur Hexafluoride Circuit Breaker boasts several features that set it apart from competitors:

• High Insulation Strength: Utilizing SF6 gas, this circuit breaker provides exceptional insulation, making it ideal for indoor applications where space is limited.
• Reliable Arc Quenching: The SF6 technology ensures efficient arc extinguishing, significantly reducing the risk of equipment damage and enhancing safety.
• Compact Design: Its small footprint allows for easy installation in confined spaces, making it perfect for urban construction and rural network transformation.
• Durability: Built with high-quality materials, our circuit breaker is designed to withstand harsh operating conditions, ensuring long-term reliability.
• Easy Maintenance: The design facilitates straightforward maintenance procedures, reducing downtime and operational costs.

Product Structure

The Operating Mechanism for HSF6-40.5 is composed of several key components:

• Insulating Chamber: Houses the SF6 gas, providing superior insulation and arc extinction capabilities.
• Operating Mechanism: This includes a spring mechanism that enables fast and efficient switching operations.
• Control System: A fully automated control system that integrates seamlessly with our other products, ensuring smooth operation.
• Testing Equipment: Our products undergo rigorous testing in our fully equipped laboratory to ensure compliance with ISO9001:2000 and other quality standards.

Main Technical Parameters of the Product

• Rated Voltage: 40.5 kV
• Rated Current: 1250 A
• Short-Circuit Withstand Current: 25 kA
• Mechanical Life: 10,000 operations
• Operating Mechanism Type: Spring-operated
• Insulation Medium: Sulfur hexafluoride (SF6)

Product Use Conditions

Our Operating Mechanism for HSF6-40.5 Indoor High Voltage Sulfur Hexafluoride Circuit Breaker is designed to operate effectively under the following conditions:

• Ambient Temperature: -40°C to +40°C
• Altitude: Up to 1000 meters
• Humidity: 5% to 95% (non-condensing)
• Installation Location: Indoor use only

Product Application Scope and Field

The Operating Mechanism for HSF6-40.5 is widely utilized across various sectors, including:

• Power Plants: Ensuring reliable power generation and distribution.
• Metallurgy and Petrochemicals: Providing safety and efficiency in high-stakes environments.
• Railways: Supporting essential transport infrastructure with dependable electrical systems.
• Urban Construction: Facilitating modern development projects with advanced electrical solutions.
• Rural Network Transformation: Enhancing electricity distribution in rural areas, improving overall connectivity and service.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

Shaanxi Huadian Electric Co., Ltd. offers comprehensive OEM services to meet your specific requirements. We work closely with our partners to customize the Operating Mechanism for HSF6-40.5, ensuring it aligns perfectly with your needs and specifications. Our professional R&D team is ready to collaborate with you, providing tailored solutions that maximize efficiency and performance.

FAQ

1. What is the main advantage of using SF6 technology in circuit breakers?

SF6 gas provides excellent insulation and arc-extinguishing properties, making it ideal for high-voltage applications. This results in increased safety and reliability.

2. What kind of maintenance is required for the HSF6-40.5 Circuit Breaker?

The circuit breaker is designed for easy maintenance. Regular inspections and tests should be performed to ensure optimal performance, but complex procedures are minimal.

3. Can the HSF6-40.5 be customized for specific applications?

Yes, we offer OEM services to tailor the circuit breaker to meet your specific operational needs.

4. What certifications does this product hold?

The HSF6-40.5 Circuit Breaker has passed ISO9001:2000 quality system certification, ensuring it meets international quality and safety standards.

5. What is the delivery time for bulk orders?

Delivery times vary based on the order volume and customization requirements, but we strive to meet your production needs promptly.
