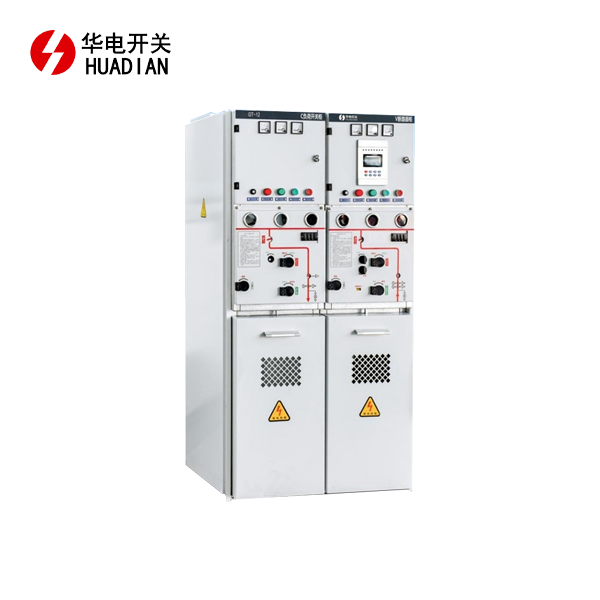

GT □ 12-630 fully sealed solid insulated ring network switchgear

GT □ 12-630 fully sealed solid insulated ring network switchgear Introduction

The GT □ 12-630 fully sealed solid insulated ring network switchgear is a state-of-the-art solution for medium-voltage power distribution networks. Manufactured by Shaanxi Huadian Electric Co., Ltd., this switchgear is designed to meet the demands of modern industries, providing high reliability, safety, and efficiency. With cutting-edge insulation technology, this product ensures long-term operational safety and minimal maintenance, making it an ideal choice for a wide range of industrial applications.

Product Features and Advantages

1. Fully Sealed and Insulated:The GT □ 12-630 fully sealed solid insulated ring network switchgear features a fully sealed design that effectively protects internal components from environmental factors such as dust, moisture, and pollutants. This robust construction significantly enhances product durability and operational safety, ensuring reliable performance in various conditions and extending the overall lifespan of the equipment for long-term use.

2. Compact and Space-Saving:Its compact design makes the GT □ 12-630 switchgear ideal for installation in areas with limited space, which is particularly crucial in urban and industrial environments where space constraints are common. This efficient footprint allows for easy integration into existing infrastructure, optimizing the use of available space while maintaining performance and functionality.

3. High Safety Standards:Equipped with advanced protection features, the GT □ 12-630 switchgear guarantees the safety of both the electrical system and personnel. Its design includes multiple safety mechanisms that comply with international safety standards, providing reliable fault detection and isolation to prevent accidents, thereby enhancing overall operational security in various applications.

4. Low Maintenance:The solid insulation technology utilized in the GT □ 12-630 switchgear significantly reduces the need for regular maintenance, allowing businesses to lower operational costs. This innovative approach not only enhances system reliability but also minimizes downtime, ensuring continuous operation and contributing to overall efficiency in electrical systems.

Product Structure

The GT □ 12-630 fully sealed solid insulated ring network switchgear features a modular design, which simplifies installation and future upgrades. The primary components include:

• Main switch: Reliable vacuum circuit breaker for switching and protection.
• Fully insulated busbars: Ensures safety and prevents electrical failures.
• Protection relays: For precise fault detection and system protection.
• Sealed housing: Prevents environmental factors from affecting the internal components.

Main Technical Parameters

• Rated Voltage: 12kV
• Rated Current: 630A
• Breaking Current: 20kA
• Frequency: 50Hz
• Insulation Level: 42kV (lightning impulse withstand voltage)

Product Use Conditions

The GT □ 12-630 fully sealed solid insulated ring network switchgear is designed for both indoor and outdoor use under the following conditions:

• Ambient temperature: -25°C to +40°C
• Altitude: Up to 1000m
• Humidity: ≤ 95%
• Installation environment: Non-corrosive and non-flammable gases, minimal dust

This product performs reliably in various harsh environments, ensuring continuous operation and safety.

Product Application Scope and Field

The GT □ 12-630 switchgear is widely used in industries requiring reliable power distribution, such as:

• Power plants
• Petrochemical industries
• Mining
• Urban infrastructure
• Railway systems
• Rural power grid modernization

Its robust design and flexible application range make it suitable for industries with critical power needs.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

At Shaanxi Huadian Electric Co., Ltd., we offer OEM services to tailor the GT □ 12-630 switchgear to your specific requirements. Our experienced R&D team is ready to work with you to develop customized solutions that fit your project’s unique needs.

FAQ

1. What is the lifespan of the GT □ 12-630 switchgear?
   The switchgear is designed for a lifespan of over 20 years under normal operating conditions.

2. Can it be used in extreme weather conditions?
   Yes, the product is designed to operate in a wide range of temperatures and humid conditions.

3. What kind of maintenance does it require?
   Thanks to its fully sealed design, the GT □ 12-630 requires minimal maintenance compared to traditional switchgears.

Contact Us

For more information or to request a quote, please contact us at:
Email: [austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com]

At Shaanxi Huadian Electric Co., Ltd., we are committed to delivering high-quality and reliable electrical solutions. Reach out today to discuss how our GT □ 12-630 fully sealed solid insulated ring network switchgear can meet your business needs.
