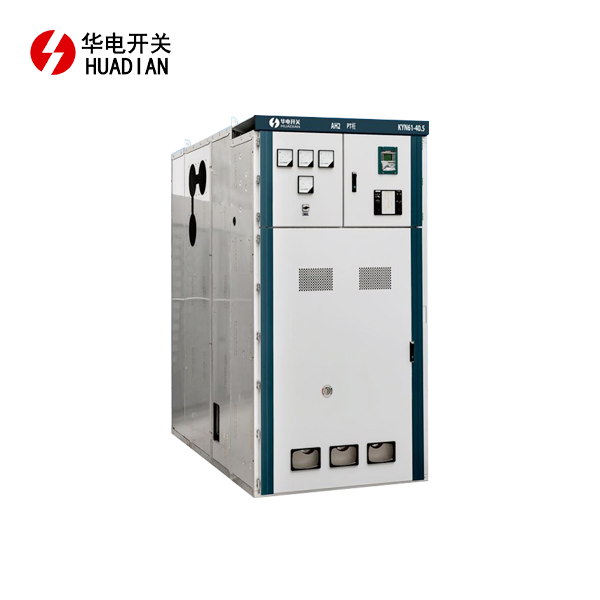

KYN61-40.5(Z) Armored removable AC metal enclosed switch cabinet
2. **Rated Current**: This switch cabinet supports a maximum continuous current of up to 1250A, making it suitable for various operational needs under normal conditions.
3. **Tripping Capacity**: With a robust tripping capacity, the KYN61-40.5(Z) can effectively cut off fault currents up to 31.5 kA, providing enhanced protection for your electrical systems.
4. **Tripping Time**: The circuit breaker operates with a swift tripping time, ensuring rapid disconnection of current to minimize potential damage and enhance safety.
5. **Operation Mode**: The KYN61-40.5(Z) features multiple operation modes, including manual, electric, and pneumatic, allowing for flexible and convenient control based on your requirements.
6. **Distance**: After disconnection, the circuit breaker maintains a minimum contact distance to ensure safety and prevent arcing during operation.
7. **Delivery**: Our product is available for worldwide shipping, with various delivery options to accommodate your project timelines and requirements.
8. **Packaging**: Each KYN61-40.5(Z) switch cabinet is securely packaged in durable outer materials, ensuring protection during transit and delivery.
KYN61-40.5(Z) Armored removable AC metal enclosed switch cabinet Introduction
The KYN61-40.5(Z) Armored removable AC metal enclosed switch cabinet is a high-performance, reliable, and safe switchgear solution designed for medium-voltage power distribution. Developed by Shaanxi Huadian Electric Co., Ltd., this switch cabinet is ideal for medium and large companies requiring secure and efficient power distribution systems. The KYN61-40.5(Z) is engineered to meet international standards, ensuring durability, low maintenance, and optimal performance across various industries, including power plants, petrochemical facilities, and urban construction projects.
Product Features and Advantages
- Advanced Safety Mechanisms: The KYN61-40.5(Z) is equipped with state-of-the-art safety features, including arc-proof designs and automatic interlock systems, minimizing risks during operation and maintenance.
- Modular Design: The armored and removable design allows for easy installation, maintenance, and upgrades, providing operational flexibility for medium to large power distribution systems.
- High-Quality Components: All internal components are made of high-grade materials, ensuring long-lasting durability and excellent electrical performance.
- Compliance with ISO9001: This product adheres to the ISO9001:2000 quality system certification, ensuring high manufacturing standards and consistent product quality.
Product Structure
The KYN61-40.5(Z) Armored removable AC metal enclosed switch cabinet is designed with an armored removable structure, ensuring reliable protection against external environmental factors such as dust, moisture, and mechanical damage. It includes:
- Enclosure: Durable, corrosion-resistant metal-enclosed housing with enhanced protection against harsh conditions.
- Vacuum Circuit Breaker: High-performance VCB with superior interrupting capacity and minimal maintenance needs.
- Busbar System: Fully insulated and enclosed busbar for enhanced safety and efficiency.
- Protection and Control Units: Integrated intelligent control systems for real-time monitoring and efficient fault detection.
Main Technical Parameters
|
Name |
Unit |
Value |
|
Rated voltage |
kV |
40.5 |
|
Rated frequency |
Hz |
50 |
|
Rated power frequency withstand voltage |
kV |
95/1min |
|
Rated lightning impulse withstand voltage |
kV |
185 |
|
Rated current |
A |
125016002000 |
|
Rated short-time withstand current |
kA |
202531.5 |
|
Rated short-time breaking current |
kA |
202531.5 |
|
Rated peak withstand current |
kA |
506380 |
|
Rated short-circuit duration |
ms |
4 |
|
Opening time |
ms |
30≤t≤60 |
|
Closing time |
S |
50≤t≤100 |
|
Rated short-circuit breaking current times |
times |
20 |
|
Mechanical life |
times |
10000 |
Product Use Conditions
The KYN61-40.5(Z) switch cabinet is designed to operate under various environmental conditions, including:
- Ambient temperature: -15°C to +40°C
- Relative humidity: ≤90%
- Altitude: ≤1000 meters above sea level
- Free from excessive vibration, corrosive gases, or conductive dust
Product Application Scope and Field
This switchgear is widely used in power transmission and distribution for industrial and commercial sectors, including:
- Power plants
- Petrochemical industries
- Railways and mining operations
- Urban infrastructure projects
- Rural power grid upgrades
OEM Services
Shaanxi Huadian Electric Co., Ltd. offers comprehensive OEM services for the KYN61-40.5(Z) Armored removable AC metal enclosed switch cabinet. We can customize the design, branding, and technical specifications to meet your unique requirements. Our team works closely with you to ensure the product aligns perfectly with your operational needs.
FAQ
1. What makes the KYN61-40.5(Z) cabinet safe for operators?
The switchgear incorporates arc-proof technology and an interlock system that prevents human error during maintenance or operation, ensuring operator safety.
2. Can this switchgear handle high short-circuit currents?
Yes, the KYN61-40.5(Z) can handle up to 31.5kA short-circuit breaking current, making it suitable for high-demand environments.
3. What industries are best suited for this product?
This switchgear is ideal for industries like power generation, petrochemical, urban development, and transportation sectors where reliable power distribution is critical.
4. Does this product comply with international safety standards?
Yes, it is certified under ISO9001:2000, ensuring it meets rigorous quality and safety standards.
5. Can the product be customized?
Yes, we offer OEM services to tailor the product to your specific needs, including branding, technical features, and design.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
