ZN63A(VS1)-12/YD Electric Handcart

**ZN63A(VS1)-12/YD Electric Handcart Product Description** 1. **Rated Voltage**: The handcart can withstand a maximum operating voltage of 12kV.
2. **Rated Current**: It supports a continuous current capacity of up to 630A under normal conditions.
3. **Tripping Capacity**: The handcart can interrupt fault currents up to 20kA, ensuring safe operation.
4. **Tripping Time**: The device can cut off the current within milliseconds for fast response during faults.
5. **Operation Mode**: Operates electrically for smooth and efficient performance.
6. **Distance**: Features a contact distance of 210mm for reliable disconnection.
7. **Delivery**: Available via air, sea, or land transport to accommodate global shipping needs.
8. **Packaging**: Secured in robust wooden crates to ensure safe delivery.

Download

Product Description

Product Introduction:ZN63A(VS1)-12/YD Electric Handcart

Shaanxi Huadian Electric Co., Ltd. created the cutting-edge vacuum circuit breaker solution known as the ZN63A(VS1)-12/YD Electric Handcart. It is made with cutting-edge technology and is good for medium and large businesses that need equipment for their electrical systems that is reliable and works well. Power plants, metallurgy, the petrochemical industry, and urban infrastructure are all excellent applications for this electric handcart.

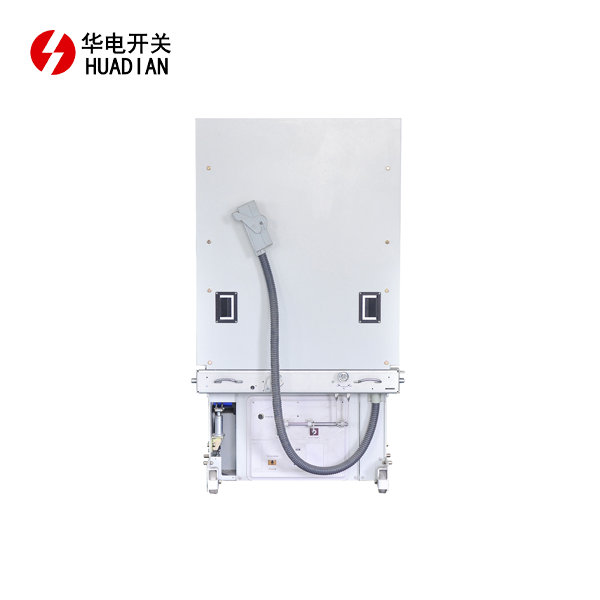

product-1-1

Features and Advantages

High reliability: With a robust design and advanced vacuum interrupter, the ZN63A(VS1)-12/YD Electric Handcart ensures long service life and operational stability.
Compact and modular design: The compact structure allows for easy integration into different systems, offering flexibility in installation and maintenance.
Low maintenance: Designed with minimal moving parts, reducing the need for regular upkeep, thus saving time and costs for users.
Energy-efficient: The vacuum technology ensures low energy consumption, helping industries reduce their overall energy usage.
ISO-certified: Manufactured under the ISO9001:2000 quality management system, ensuring compliance with international standards for performance and safety.
Intelligent Monitoring and Diagnostics: Integrated with intelligent monitoring systems, it can continuously track and analyze the performance and health status of the circuit breaker in real-time. This enables proactive maintenance planning and early detection of potential issues, significantly enhancing system reliability and reducing unexpected downtime.
Environmental Adaptability: This VCB is designed to perform reliably in a wide range of environmental conditions, including extreme temperatures, high humidity, and dusty or corrosive atmospheres. Its robust construction and protective coatings ensure stable operation and long-term durability even in harsh industrial environments.

Product Structure

The ZN63A(VS1)-12/YD Electric Handcart consists of:

A vacuum interrupter that ensures reliable arc-extinguishing performance.
A robust metal frame offering high mechanical strength and resistance to harsh environmental conditions.
Modular design components that allow for easy disassembly and reassembly during maintenance.
Safety features including interlocks and trip mechanisms for added user protection.

Main Technical Parameters

Parameter	Value
Rated Voltage	12kV
Rated Current	Up to 3150A
Rated Short-circuit Current	31.5kA
Mechanical Life	20,000 operations
Electrical Life	10,000 operations under full load

Product Use Conditions

The ZN63A(VS1)-12/YD Electric Handcart is designed for indoor use under the following conditions:

Ambient temperature: -15°C to +40°C
Humidity: ≤95% (at 25°C)
Altitude: ≤1000 meters
No severe vibration or corrosion from chemical substances
Suitable for use in moderate seismic areas

Application Scope and Field

This product is widely used in:

Power plants: Ensuring safe and stable power distribution.
Metallurgy and mining: Providing reliable circuit protection in harsh industrial environments.
Petrochemical industries: Offering efficient protection for electrical equipment.
Urban construction and rural network transformation: Supporting large-scale infrastructure projects by providing stable circuit protection.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Services

Shaanxi Huadian Electric Co., Ltd. offers customizable OEM services to meet your specific needs. We collaborate closely with our clients, providing tailored solutions based on your project requirements. From minor modifications to full-scale production adjustments, our OEM services ensure you get exactly what you need for your electrical systems.

FAQ

1.What is the delivery time for the ZN63A(VS1)-12/YD Electric Handcart?
The delivery time typically ranges from 4 to 6 weeks, depending on the order volume and customization requirements.

2.Does this product meet international standards?
Yes, the product is ISO9001:2000 certified and complies with all relevant industry standards.

3.What are the maintenance requirements?
This handcart requires minimal maintenance due to its advanced vacuum interrupter technology. Periodic inspections are recommended, but extensive maintenance is generally unnecessary.

4.Can you customize this product?
Yes, we provide OEM services to customize the product based on your specifications and application needs.

5.How do I place an order?
Orders can be placed through our official website, or you can contact our sales team directly via email.
