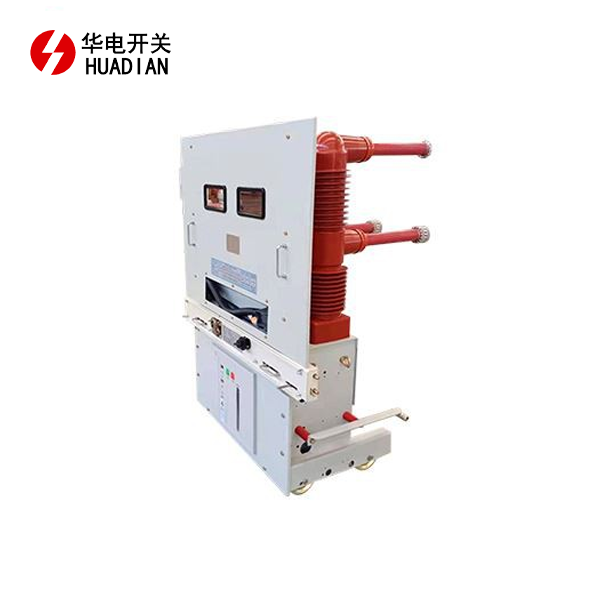

VEGM-40.5 Fast Circuit Breaker
2. **Rated Current**: This circuit breaker can handle continuous currents up to 1250 A, making it ideal for demanding operational environments.
3. **Tripping Capacity**: With a tripping capacity of up to 31.5 kA, the VEGM-40.5 efficiently interrupts high fault currents to protect your electrical systems.
4. **Tripping Time**: The circuit breaker features a fast tripping time of less than 30 milliseconds, ensuring rapid disconnection during fault conditions.
5. **Operation Mode**: The VEGM-40.5 operates in both manual and electric modes, providing flexibility for various installation scenarios.
6. **Distance**: After disconnection, the minimum contact distance is 10 mm, ensuring safe isolation between contacts.
7. **Delivery**: We offer reliable delivery options, including air and sea freight, to ensure timely arrival at your designated location.
8. **Packaging**: Each VEGM-40.5 Fast Circuit Breaker is securely packaged in a robust outer carton to protect it during transit.
--- Feel free to adjust any details as necessary!
VEGM-40.5 Fast Circuit Breaker Introduction
The VEGM-40.5 Fast Circuit Breaker is a high-performance solution designed for industrial power systems. It is engineered for quick response, superior safety, and seamless integration into various high-voltage environments. Built with advanced vacuum circuit breaker technology, the VEGM-40.5 offers a reliable and efficient way to protect your equipment and ensure uninterrupted power supply in demanding applications like power plants, railways, and petrochemical facilities.
Product Features and Advantages
- Fast Response Time: The VEGM-40.5 is optimized for rapid disconnection, minimizing system damage during faults.
- High Durability: Built with robust materials, this circuit breaker ensures a long service life with minimal maintenance needs.
- Enhanced Safety: Vacuum insulation technology reduces the risk of fire and explosions, enhancing operational safety.
- Energy Efficient: The breaker’s design reduces energy loss, making it a cost-effective choice for large-scale operations.
- Compact and Space-Saving: Its compact structure allows for easy installation in limited spaces, offering flexibility in system design.
Product Structure
The VEGM-40.5 Fast Circuit Breaker is designed with a compact and modular structure. Its core components include:
-
Vacuum Interrupters: These devices are specifically engineered to effectively interrupt high-voltage electrical currents, ensuring minimal wear on the components. This design helps maintain operational efficiency and prolongs the lifespan of the interrupter, making it suitable for demanding environments.
Arc Extinguishing Chamber: This chamber is constructed with advanced materials that facilitate rapid and effective suppression of electrical arcs. The use of these high-performance materials ensures that the chamber can quickly extinguish arcs, thereby enhancing safety and reliability during operation.
Manual and Automatic Control Options: The system offers versatile operation modes, featuring both manual and automatic control options. This flexibility allows users to select the most appropriate method of operation based on the specific requirements of the electrical system, accommodating a variety of scenarios and enhancing user convenience.
Main Technical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 40.5 kV |
| Rated Current | Up to 3150 A |
| Rated Short-Circuit Breaking Current | 31.5 kA |
| Operating Mechanism | Spring / Permanent Magnet |
| Mechanical Endurance | 20,000 cycles |
Product Use Conditions
The VEGM-40.5 Fast Circuit Breaker is designed for use in harsh environments where reliability is critical. It can operate effectively in:
- Temperature Range: -25°C to +40°C
- Altitude: Up to 1000 meters without derating
- Humidity: Operates efficiently in environments with up to 90% relative humidity.
Product Application Scope
The VEGM-40.5 is ideal for industries requiring reliable high-voltage power management, including:
- Power Plants: Ensures smooth operation and protection of critical equipment.
- Metallurgy: Helps maintain uninterrupted power supply for smelting and processing.
- Petrochemical: Provides safety and reliability in hazardous environments.
- Railways: Keeps transport systems running smoothly with rapid fault isolation.
OEM Services
We offer OEM customization to meet the specific needs of your business. From technical adjustments to personalized branding, we ensure the VEGM-40.5 fits seamlessly into your operational framework. Contact our team for tailored solutions that enhance your system's efficiency and reliability.
FAQ
Q1: What makes the VEGM-40.5 different from other circuit breakers?
A1: The VEGM-40.5 Fast Circuit Breaker is designed for fast response, high reliability, and energy efficiency. Its vacuum insulation ensures superior safety compared to traditional breakers.
Q2: Can I request custom specifications for large-scale projects?
A2: Yes, we provide OEM services to cater to specific project needs. Contact us for more details.
Q3: Is technical support available after purchase?
A3: Absolutely. Our dedicated team offers technical support and guidance throughout the installation and operational phases.
Q4: How do I ensure compatibility with my existing systems?
A4: Our technical team can assist in evaluating your system requirements and ensuring that the VEGM-40.5 is a perfect fit.
Q5: What certifications does this product comply with?
A5: The VEGM-40.5 is compliant with ISO9001:2000 standards and other relevant international certifications.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information about the VEGM-40.5 Fast Circuit Breaker, custom orders, or to request a quote, please contact us at
austinyang@hdswitchgear.com/pannie@hdswitchgear.com/rexwang@hdswitchgear.com .
