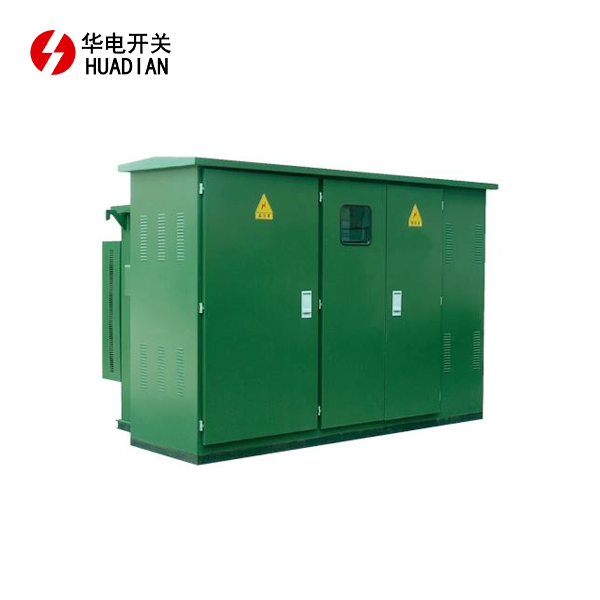

YB6 Intelligent integrated substation

YB6 Intelligent Integrated Substation Introduction

The YB6 Intelligent Integrated Substation, developed by Shaanxi Huadian Electric Co., Ltd., is a state-of-the-art, high-performance substation designed to meet the demands of modern power distribution systems. This advanced substation combines functionality, safety, and intelligent monitoring to provide reliable and efficient power solutions for various industries. With its compact design and robust technology, the Intelligent Integrated Substation is the perfect choice for medium and large companies seeking to improve their energy management systems.

Product Features and Advantages

The Intelligent Integrated Substation stands out for its intelligent control and monitoring system, which allows for real-time data analysis, fault detection, and remote operation. Key features include:

• Compact Design: The substation’s compact size optimizes space usage, making it ideal for urban and industrial applications where space is limited.
• High Reliability: Built with premium materials and advanced technology, the YB6 Intelligent integrated substation provides stable and continuous operation, reducing downtime and maintenance costs.
• Intelligent Monitoring: Integrated sensors and monitoring devices allow for continuous performance tracking, early detection of issues, and reduced risk of equipment failure.
• Energy Efficiency: The substation is designed to minimize energy loss, contributing to a more efficient and sustainable energy system.
• Safety and Protection: Equipped with high-level protective systems that ensure safety for both the equipment and operators.

Product Structure

The Substation consists of several essential components that work in synergy to ensure optimal performance:

• Primary Equipment: Includes transformers, switchgear, and breakers that handle the core operations of power distribution.
• Intelligent Control System: An advanced monitoring system that oversees real-time data, operational control, and fault detection.
• Cooling and Ventilation Systems: Integrated cooling technology to ensure the system operates within safe temperature ranges, even in harsh environmental conditions.
• Protective Devices: Multiple layers of protection, including surge arresters, grounding systems, and insulation measures, safeguard against electrical faults and overloading.

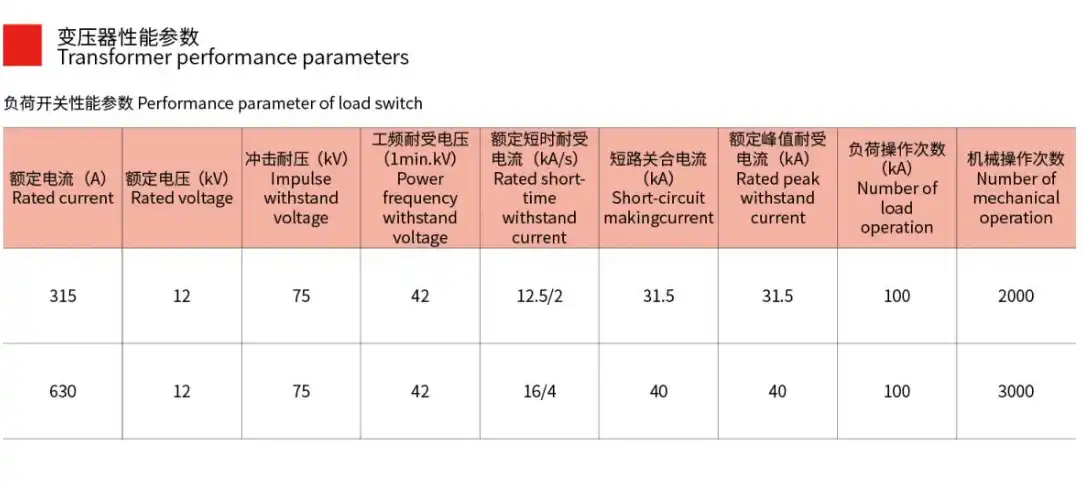

Main Technical Parameters of the Product

Main circuit：

（Unit:mm）

Product Use Conditions

The YB6 Intelligent Integrated Substation is designed for use in various environments and conditions. It operates efficiently in both urban and rural settings, industrial plants, and power distribution networks. Ideal use conditions include:

• Temperature Range: -25°C to +40°C
• Altitude: Up to 1000 meters
• Humidity: Up to 95% relative humidity
• Non-corrosive environments: The equipment is designed for environments with minimal chemical or salt corrosion exposure.

Product Application Scope and Field

The Intelligent Integrated Substation is highly versatile and suitable for a wide range of industries:

• Power Plants: Efficiently manages power distribution in both small and large power plants.
• Metallurgy and Mining: Ensures stable and reliable power supply for heavy industrial machinery.
• Urban and Rural Infrastructure: Ideal for use in urban power grids and rural network transformations, providing consistent and reliable energy distribution.
• Petrochemical and Railways: Serves as a key component in the energy management of petrochemical facilities and railway systems.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

At Shaanxi Huadian Electric Co., Ltd., we offer comprehensive OEM services to meet your specific project needs. Our team of experts can customize the YB6 Intelligent Integrated Substation to fit your unique specifications, ensuring seamless integration into your existing power infrastructure. We also provide after-sales support and technical assistance to ensure the longevity and reliability of our products.

FAQ

1. What are the advantages of the Intelligent Integrated Substation?

   • The YB6 offers intelligent monitoring, high reliability, and energy efficiency, making it ideal for modern power distribution needs.

2. Can the YB6 Substation be used in harsh environments?

   • Yes, the YB6 is built with robust materials and can operate in temperatures ranging from -25°C to +40°C with a high degree of protection (up to IP65).

3. Is the substation customizable?

   • Absolutely! We offer OEM services to tailor the YB6 to your specific requirements.

4. What industries can benefit from the YB6 Substation?

   • Power plants, metallurgy, petrochemicals, mining, railways, and urban infrastructure projects all benefit from the reliability and efficiency of the YB6.

5. Does Shaanxi Huadian provide technical support?

   • Yes, we provide full technical support, from installation to troubleshooting and maintenance.
