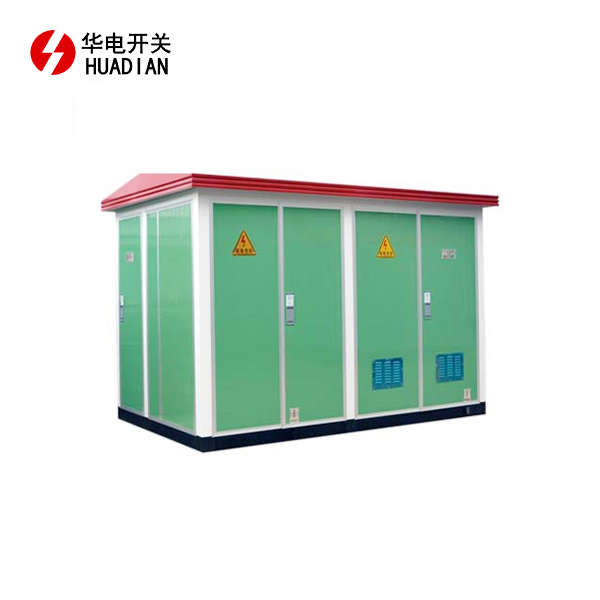

YB Intelligent Prefabricated Substation
**Rated Current:** With a rated current capacity of up to 1250 A, this substation efficiently handles significant electrical loads under normal working conditions.
**Tripping Capacity:** The tripping capacity of the substation is engineered to interrupt fault currents up to 25 kA, providing robust protection against electrical faults.
**Tripping Time:** The substation features a fast tripping time of less than 0.1 seconds, ensuring rapid disconnection in the event of a fault, enhancing system safety.
**Operation Mode:** This intelligent substation supports multiple operation modes, including manual and electric, allowing for flexible control based on operational needs.
**Distance:** The minimum contact distance after disconnection is 20 mm, ensuring safe operation and maintenance of the substation.
**Delivery:** The YB Intelligent Prefabricated Substation is available for delivery via sea, air, or road, depending on customer requirements and location.
**Packaging:** Each substation is securely packaged in a weather-resistant container to protect against environmental factors during transportation.
--- Feel free to adjust any specifications as needed!
Welcome to Shaanxi Huadian Electric Co., Ltd., where innovation meets efficiency. We take pride in providing high-quality products, such as the YB Intelligent Prefabricated Substation, designed to offer reliable performance across various industries. With decades of experience and an ISO9001:2000-certified production process, our substations are built to meet global standards.
YB Intelligent Prefabricated Substation Introduction
The YB Intelligent Prefabricated Substation is a state of the art answer for medium-voltage power conveyance. This across the board substation coordinates electrical hardware into a pre-assembled nook, offering a reduced, productive, and safe answer for power frameworks in metropolitan and rustic regions. It essentially works on power conveyance, diminishing the intricacy of establishment and upkeep, making it ideal for applications in power plants, rail routes, and modern offices.
Product Features and Advantages
- Compact Design: The Intelligent Prefabricated Substation is designed to save space and streamline the installation process. Its compact, modular construction enables it to fit in confined spaces.
- High Efficiency: Equipped with advanced technology, it ensures optimal performance in power distribution, minimizing energy loss and ensuring stable output.
- Enhanced Safety: The YB Intelligent Prefabricated Substation features high-quality insulation and protection measures, safeguarding both operators and equipment from electrical faults.
- Ease of Installation: The prefabricated design allows for quicker installation and commissioning, reducing downtime and labor costs.
- Environmentally Friendly: Built with eco-friendly materials and energy-efficient technology, it minimizes the environmental impact of power distribution.
Product Structure
The Intelligent Prefabricated Substation includes three main sections:
- High Voltage Cabinet: Designed to handle incoming high voltage safely and efficiently.
- Transformer: Steps down the voltage to a usable level for medium and low voltage applications.
- Low Voltage Cabinet: Controls and distributes the power to various loads.
The unit is housed in a durable, weather-resistant enclosure, ensuring it can withstand harsh outdoor environments, such as high heat, cold, and moisture.
Main Technical Parameters
| Item | High Voltage Electrical Equipment | Unit | Transformer | Low Voltage Electrocal Equipment | ||
| Rated Voltage | 7.2 , 12 | kV | 6/0.4 , 10/0.4 |
0.4 |
||
| Rated Capacity | / | kVA |
Type1: 200-1250 Type2: 50 - 400 |
/ | ||
| Rated Current | 200 - 630 | A | / | 100 - 3000 | ||
| Rated Breaking current | Load switch 400 - 630A | A | / | 15 - 63 | ||
| Rated Breaking current | Combined electrical equipment is dependent on fuse | kA | / | 15 - 63 | ||
|
Rated short time withstand current |
20 * (2) | kA (xs) | 200 - 400kVA | 15 * 1 | ||
| Rated short time withstand current | (12.5 * 4) | kA (xs) | 400kVA | 30 * 1 | ||
|
Rated peak withstand current |
31.5 , 50 | kA | 200 - 400 | 30 - 63 | ||
| Rated Closing Current | 31.5 , 50 | kA | / | / | ||
| Frequency withstand voltage | to earth: 32 , 48 | kV | oil immersion:35/5min | ≤300V: 2kV | ||
| Frequency withstand voltage | Isolated farcture: 34 , 48 | kV |
dry typ : 20/35 |
300,600V: 2.5kv | ||
| Tunderstroke impact | to earth: 60 , 75 | kV | 75 | / | ||
|
Tunderstork impact |
Isolated facture: 75 , 85 | kV | 75 | / | ||
| Noise level | / | dB | oil immersion: ≤55 | / | ||
| Noise level | / | dB | dry type: ≤65 | / | ||
|
Portection grade |
/ | / | IP32D | / | ||
Product Use Conditions
The YB Intelligent Prefabricated Substation is designed for outdoor use in various climatic conditions, from high temperatures to freezing environments. It can be installed in industrial zones, mining areas, and urban residential areas, offering robust performance in challenging settings. Operating altitude can be customized to meet specific project needs, ensuring flexibility in deployment.
Product Application Scope and Field
This substation is widely used in multiple sectors, such as:
- Power Plants: Efficient power distribution for large-scale facilities.
- Metallurgy and Petrochemical: Reliable energy supply for heavy-duty industrial processes.
- Railway Systems: Stable power distribution for train stations and railway networks.
- Urban and Rural Power Grid: Ideal for rural network transformation and urban infrastructure development.
OEM Service
At Shaanxi Huadian Electric Co., Ltd., we offer full OEM services to meet the unique specifications of our clients. Our state-of-the-art manufacturing facilities allow us to customize YB Intelligent Prefabricated Substations to suit specific project requirements. Whether you need a particular capacity, protection level, or configuration, we can design and manufacture products that align with your needs.
FAQ
1. What is the delivery time for a Intelligent Prefabricated Substation?
The delivery time typically ranges from 30 to 60 days, depending on customization and order volume.
2. What certifications does the product meet?
Our substations are manufactured according to ISO9001:2000 quality standards and comply with relevant industry certifications.
3. Can the substation be installed in extreme climates?
Yes, our Intelligent Prefabricated Substations are designed for harsh environments, including extreme heat, cold, and humid conditions.
4. Do you provide technical support after installation?
Yes, we offer comprehensive technical support, including installation guidance and post-installation maintenance services.
5. What payment methods do you accept?
We accept bank transfers, credit cards, and other flexible payment methods to suit your preferences.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information about our YB Intelligent Prefabricated Substation or to inquire about our OEM services, feel free to reach out to us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com. We look forward to assisting you with your power distribution needs.
