What is the difference between a Side-Mounted Vacuum Circuit Breaker and a vacuum circuit breaker?

In the world of electrical power distribution, circuit breakers play a crucial role in protecting equipment and ensuring safe operations. Among the various types of circuit breakers available, vacuum circuit breakers have gained significant popularity due to their efficiency and reliability. However, within this category, there's a specialized variant known as the side-mounted vacuum circuit breaker. This article will delve into the key differences between a standard vacuum circuit breaker and a side-mounted vacuum circuit breaker, with a particular focus on the ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker.

Understanding Vacuum Circuit Breakers

The Basics of Vacuum Circuit Breakers

Vacuum circuit breakers are advanced switching devices used in medium-voltage power systems. They utilize vacuum as the arc-quenching medium, offering superior performance compared to traditional oil or air circuit breakers. The core principle behind vacuum circuit breakers is the rapid recovery of dielectric strength in a vacuum after current interruption.

Key Components of Vacuum Circuit Breakers

A typical vacuum circuit breaker consists of several essential components, including vacuum interrupters, operating mechanisms, and insulating structures. The vacuum interrupter houses fixed and movable contacts within a highly evacuated chamber, ensuring efficient arc extinction during circuit breaking operations.

Advantages of Vacuum Circuit Breakers

Vacuum circuit breakers offer numerous benefits, such as high interrupting capacity, minimal maintenance requirements, and compact design. Their ability to operate in various environmental conditions and their long service life make them a preferred choice in many electrical applications.

Introducing Side-Mounted Vacuum Circuit Breakers

Concept of Side-Mounted Design

Side-mounted vacuum circuit breakers, as the name suggests, feature a unique configuration where the vacuum interrupters are positioned on the side of the breaker assembly. This design approach offers several advantages in terms of installation flexibility and space utilization.

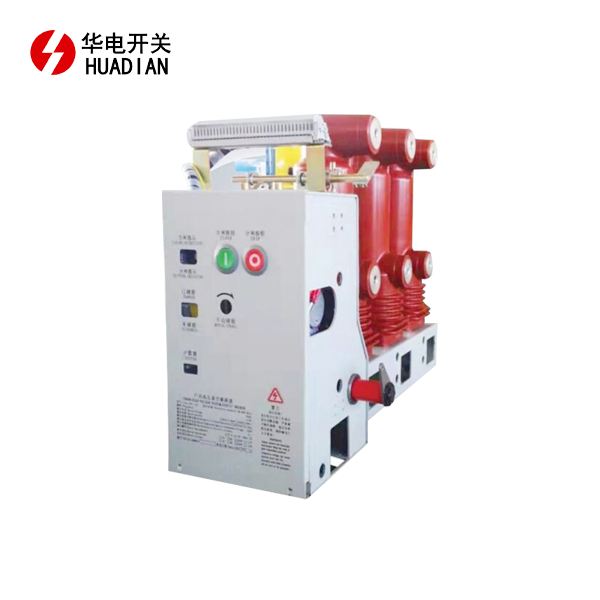

The ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker

The ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker is a prime example of this innovative design. Manufactured by Shaanxi Huadian Electric Co., Ltd., this circuit breaker combines the benefits of vacuum technology with the advantages of side-mounted configuration.

Features and Specifications

The ZN63A(VS1)-12C boasts impressive specifications, including a rated voltage of 12kV and a rated current of up to 3150A. Its side-mounted design allows for easy integration into switchgear assemblies, making it an ideal choice for various industrial and utility applications.

Comparing Side-Mounted and Standard Vacuum Circuit Breakers

Installation and Space Considerations

One of the primary differences between side-mounted and standard vacuum circuit breakers lies in their installation requirements. Side-mounted variants, like the ZN63A(VS1)-12C, offer greater flexibility in terms of space utilization. Their compact design allows for installation in areas with height restrictions or where vertical space is at a premium.

Maintenance and Accessibility

Side-mounted vacuum circuit breakers often provide improved accessibility for maintenance and inspection. The lateral arrangement of components can simplify the process of replacing vacuum interrupters or conducting routine checks, potentially reducing downtime and maintenance costs.

Performance Characteristics

While both standard and side-mounted vacuum circuit breakers utilize the same fundamental principles, there can be subtle differences in their performance characteristics. The ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker, for instance, may offer specific advantages in terms of short-circuit breaking capacity or operating speed due to its optimized design.

Applications and Industry Adoption

Suitable Industries for Side-Mounted Vacuum Circuit Breakers

Side-mounted vacuum circuit breakers find applications across various industries, including power generation, distribution networks, and large-scale industrial facilities. Their compact design makes them particularly useful in retrofit projects where space constraints are a significant factor.

Case Studies and Success Stories

Numerous case studies have demonstrated the successful implementation of side-mounted vacuum circuit breakers in challenging environments. For example, a major petrochemical plant in Asia achieved significant space savings and improved reliability by adopting ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breakers in their electrical distribution system.

Future Trends and Innovations

The field of vacuum circuit breaker technology continues to evolve, with ongoing research focused on enhancing performance, reducing size, and improving environmental sustainability. Side-mounted designs are likely to play a crucial role in these advancements, offering new possibilities for efficient power distribution solutions.

Choosing Between Side-Mounted and Standard Vacuum Circuit Breakers

Factors to Consider

When deciding between side-mounted and standard vacuum circuit breakers, several factors should be taken into account. These include available space, installation requirements, specific performance needs, and long-term maintenance considerations. The ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker, for instance, may be the optimal choice in scenarios where vertical space is limited or where ease of maintenance is a priority.

Cost-Benefit Analysis

While side-mounted vacuum circuit breakers may have a higher initial cost compared to standard models, they often provide long-term benefits in terms of space savings, reduced installation complexity, and potentially lower maintenance costs. A thorough cost-benefit analysis should consider these factors over the expected lifecycle of the equipment.

Expert Recommendations

Consulting with experienced electrical engineers and circuit breaker specialists is crucial when making a selection. These experts can provide valuable insights into the specific advantages of side-mounted designs like the ZN63A(VS1)-12C and help determine the most suitable option for a given application.

Conclusion

The distinction between side-mounted vacuum circuit breakers and standard vacuum circuit breakers lies primarily in their physical configuration and installation flexibility. While both types utilize vacuum technology for efficient arc quenching, ZN63A(VS1)-12C Side-Mounted Vacuum Circuit Breaker offer unique advantages in terms of space utilization and accessibility. As the electrical industry continues to evolve, understanding these differences becomes crucial for making informed decisions in power distribution system design and upgrades. The choice between side-mounted and standard vacuum circuit breakers ultimately depends on specific project requirements, space constraints, and long-term operational considerations.
