What are the advantages of using a High Voltage Vacuum Load Switch and Fuse Combination?

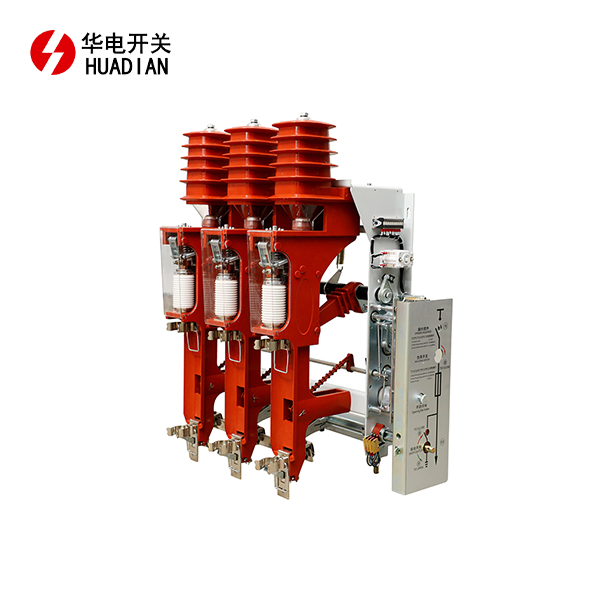

High voltage vacuum load switch and fuse combinations, such as the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances, offer numerous advantages in electrical power distribution systems. These devices combine the functionality of a vacuum load switch with a fuse, providing enhanced protection and operational flexibility. The primary benefits include improved safety, reduced maintenance requirements, and increased system reliability. By integrating a vacuum interrupter with a fuse in a compact unit, these combinations offer superior arc extinction capabilities and fast fault clearing times. This design not only protects equipment from overcurrents and short circuits but also allows for efficient load switching operations, making them ideal for various industrial and utility applications.

Enhanced Safety Features of High Voltage Vacuum Load Switch and Fuse Combinations

Arc Quenching Capabilities

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances excel in arc quenching capabilities. The vacuum interrupter technology employed in these devices provides superior arc extinction properties. When the contacts separate, the arc is quickly extinguished within the vacuum chamber, preventing the ionization of surrounding air. This rapid arc extinction minimizes the risk of flashovers and reduces wear on the contacts, ultimately extending the device's lifespan.

Fail-Safe Operation

One of the key safety features of the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances is its fail-safe operation. In the event of a fault or overload condition, the fuse element will melt, automatically disconnecting the circuit. This rapid response helps prevent damage to downstream equipment and reduces the risk of electrical fires. The vacuum load switch component ensures that the disconnection occurs in a controlled manner, further enhancing safety.

Visible Isolation

High voltage vacuum load switch and fuse combinations often incorporate visible isolation features. This allows operators to visually confirm the open or closed state of the switch, enhancing safety during maintenance procedures. The FZRN25A-12D typically includes clear indicators or viewing windows that provide a direct line of sight to the switch contacts, eliminating any uncertainty about the device's status.

Operational Efficiency and Reliability Improvements

Reduced Maintenance Requirements

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances are designed for minimal maintenance. The vacuum interrupter technology eliminates the need for oil or gas insulation, reducing the potential for leaks and contamination. This design significantly decreases the frequency of routine maintenance tasks, leading to lower operational costs and increased system uptime. The sealed vacuum chamber also protects the contacts from environmental factors, further reducing wear and extending the device's service life.

Compact Design and Space Efficiency

One of the notable advantages of using a high voltage vacuum load switch and fuse combination is its compact design. The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances integrates multiple functions into a single unit, saving valuable space in switchgear installations. This space efficiency is particularly beneficial in retrofit applications or where real estate is at a premium. The reduced footprint also simplifies installation and allows for more flexible substation layouts, potentially reducing overall infrastructure costs.

Improved Coordination with Protection Systems

The combination of a vacuum load switch with a fuse in the FZRN25A-12D allows for improved coordination with other protection devices in the electrical system. The fast-acting fuse provides primary protection against short circuits and overloads, while the vacuum switch offers load breaking capabilities. This dual functionality enhances the overall protection scheme, allowing for better selectivity and coordination with upstream and downstream protective devices. The result is a more reliable and robust electrical distribution system.

Environmental and Economic Benefits

Eco-Friendly Operation

High voltage vacuum load switch and fuse combinations, like the FZRN25A-12D, offer significant environmental benefits. The vacuum interrupter technology eliminates the need for oil or SF6 gas insulation, both of which can have negative environmental impacts. Vacuum switches are inherently more environmentally friendly, as they do not release harmful substances during operation or disposal. This aligns with global efforts to reduce greenhouse gas emissions and promotes sustainable practices in the electrical industry.

Long-Term Cost Savings

While the initial investment in FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances may be higher than traditional switchgear, the long-term cost savings are substantial. The reduced maintenance requirements, longer service life, and improved reliability contribute to lower total cost of ownership. Additionally, the compact design can lead to reduced installation and infrastructure costs. Over the lifecycle of the equipment, these factors result in significant economic benefits for utilities and industrial users.

Enhanced Power Quality

The use of vacuum interrupter technology in the FZRN25A-12D contributes to enhanced power quality. The fast switching capabilities of vacuum interrupters help minimize voltage transients during switching operations. This reduction in switching surges leads to improved power quality for connected loads, which is particularly important for sensitive electronic equipment and industrial processes. The result is increased reliability and efficiency of the entire electrical system.

Conclusion

The advantages of using a high voltage vacuum load switch and fuse combination, such as the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances, are numerous and significant. These devices offer enhanced safety features, improved operational efficiency, and environmental benefits that make them an excellent choice for modern electrical distribution systems. By combining the functionalities of a vacuum load switch and a fuse in a compact, low-maintenance package, these appliances provide superior protection, reliability, and flexibility. As the electrical industry continues to evolve, the adoption of such advanced technologies will play a crucial role in building more resilient, efficient, and sustainable power networks.

Contact Us

Are you interested in upgrading your electrical distribution system with state-of-the-art High Voltage Vacuum Load Switch and Fuse Combinations? Contact Shaanxi Huadian Electric Co., Ltd. today to learn more about our FZRN25A-12D and other innovative electric appliances. Our team of experts is ready to help you find the perfect solution for your needs. Reach out to us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com for more information or to request a quote.
