How does a high voltage vacuum breaker work?

In the realm of electrical power systems, safety and reliability are paramount. High Voltage (HV) vacuum circuit breakers play a crucial role in protecting electrical networks from faults and overloads. These sophisticated devices are designed to interrupt high-voltage currents swiftly and efficiently, preventing damage to expensive equipment and ensuring the stability of power distribution systems. Let's delve into the inner workings of HV vacuum circuit breakers and explore the science behind their operation.

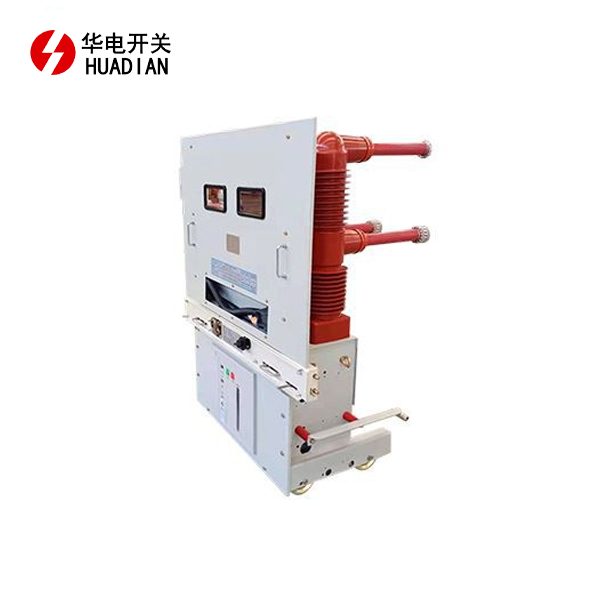

The Fundamentals of HV Vacuum Circuit Breakers

Basic Principles and Components

HV vacuum circuit breakers operate on a simple yet ingenious principle: interrupting electrical current in a vacuum environment. The main components of an HV vacuum circuit breaker include:

- Vacuum interrupter: A sealed chamber containing fixed and movable contacts

- Operating mechanism: A system that controls the movement of contacts

- Insulating enclosure: Provides insulation and protection for internal components

The vacuum interrupter is the heart of the breaker, where the actual current interruption occurs. It consists of a sealed chamber that houses a pair of electrical contacts – one fixed and one movable. The chamber is evacuated to create a high-vacuum environment, which serves as an excellent insulating medium.

The Role of Vacuum in Circuit Breaking

The use of vacuum in circuit breaking offers several advantages:

- Superior dielectric strength: Vacuum provides excellent insulation properties

- Rapid arc extinction: The absence of gas molecules facilitates quick arc quenching

- Minimal contact erosion: Reduced material transfer between contacts during operation

These properties make vacuum an ideal medium for interrupting high-voltage currents, allowing for compact and efficient circuit breaker designs.

The Operating Mechanism

The operating mechanism of an HV vacuum circuit breaker is responsible for controlling the movement of the contacts. It typically employs a spring-charged system or a hydraulic mechanism to ensure rapid and precise contact separation when triggered. This quick response is crucial for minimizing damage during fault conditions.

The Current Interruption Process

Contact Separation and Arc Formation

When a fault is detected in the electrical system, the HV vacuum circuit breaker receives a signal to open. The operating mechanism is activated, causing the movable contact to separate from the fixed contact. As the contacts begin to part, an electrical arc is formed between them.

Arc Characteristics in Vacuum

The arc formed in a vacuum environment has unique characteristics:

- Diffuse nature: The arc is not confined to a single point but spreads across the contact surface

- Low current density: The diffuse nature of the arc results in lower current density at the contact surface

- Rapid cooling: The absence of gas molecules allows for quick cooling of the arc

These characteristics contribute to the efficient interruption of current and reduced wear on the contacts.

Current Zero and Arc Extinction

As the alternating current approaches its natural zero-crossing point, the arc begins to lose stability. In a vacuum environment, the arc extinguishes rapidly at this point due to the absence of ionized gas molecules. This quick extinction is crucial for preventing re-ignition of the arc and ensuring successful current interruption.

Post-Arc Recovery

After the arc is extinguished, the vacuum between the contacts quickly recovers its dielectric strength. This rapid recovery is essential for preventing re-ignition of the arc and maintaining the open state of the circuit breaker. The high dielectric strength of the vacuum ensures that the breaker can withstand the system voltage and prevent current flow even after interruption.

Advanced Features and Technologies

Synchronous Switching

Modern HV vacuum circuit breakers often incorporate synchronous switching technology. This feature allows the breaker to time its operation precisely with the current zero-crossing, minimizing switching transients and reducing stress on the system components.

Contact Materials and Design

The choice of contact materials plays a crucial role in the performance of HV vacuum circuit breakers. Advanced alloys are used to minimize contact erosion and maintain consistent performance over time. The design of the contacts also incorporates features to control the arc and improve current interruption capabilities.

Monitoring and Diagnostics

Many contemporary HV vacuum circuit breakers are equipped with advanced monitoring and diagnostic systems. These systems provide real-time data on the breaker's condition, allowing for predictive maintenance and improved reliability.

Challenges and Future Developments

While HV vacuum circuit breakers offer numerous advantages, they also face some challenges:

Voltage Limitations

Current technology limits the use of vacuum interrupters to voltages up to about 145 kV. Research is ongoing to extend this range to higher voltages, potentially expanding the applications of vacuum breakers in ultra-high voltage systems.

Multiple Break Contacts

For higher voltage applications, multiple break contacts are often used in series. This design adds complexity to the breaker and requires precise coordination between the multiple vacuum interrupters.

Chopping Current

Vacuum interrupters can sometimes exhibit a phenomenon known as "current chopping," where the current is interrupted before its natural zero-crossing. This can lead to overvoltages in certain applications. Ongoing research aims to mitigate this effect through improved contact materials and designs.

Future developments in HV vacuum circuit breaker technology are focused on addressing these challenges and further improving their performance. Areas of research include:

- Advanced contact materials: Development of new alloys to reduce contact erosion and improve current interruption capabilities

- Smart diagnostics: Integration of AI and machine learning for predictive maintenance and fault detection

- Higher voltage ratings: Pushing the boundaries of vacuum interruption technology to higher voltage levels

- Improved synchronous switching: Enhancing the precision of point-on-wave switching to minimize transients

Conclusion

HV vacuum circuit breakers represent a significant advancement in electrical protection technology. Their ability to swiftly and reliably interrupt high-voltage currents in a compact, low-maintenance package makes them an invaluable component of modern power systems. As electrical grids continue to evolve and integrate more renewable energy sources, the role of HV vacuum circuit breakers in ensuring system stability and safety will only grow in importance.
