How Instrumentation Cables Ensure Precise Monitoring and Control in Industrial Environments?

Instrumentation cables play a pivotal role in ensuring precise monitoring and control in industrial environments by providing reliable and accurate signal transmission. These specialized cables are designed to withstand harsh conditions while maintaining signal integrity, allowing for real-time data collection and analysis from various sensors and instruments. By utilizing high-quality shielding, insulation, and conductor materials, instrumentation cables minimize interference, reduce signal loss, and enhance overall system performance. This enables industrial processes to operate with greater efficiency, safety, and reliability, ultimately contributing to improved productivity and reduced downtime in complex industrial settings.

The Anatomy of Instrumentation Cables

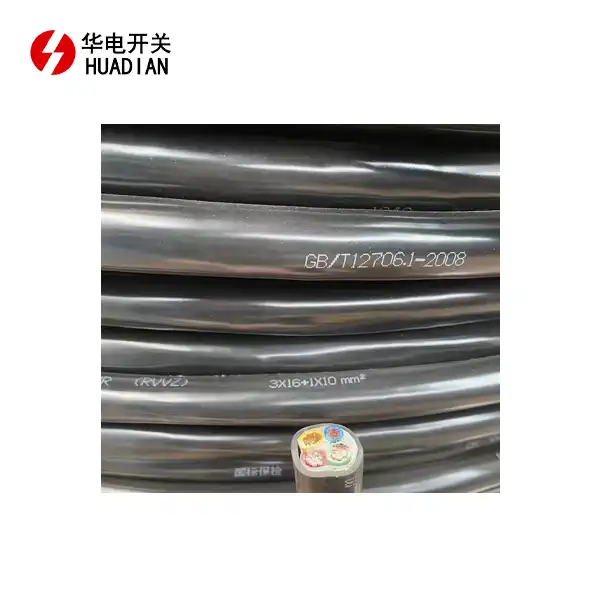

Core Conductors: The Heart of Signal Transmission

At the center of every instrumentation cable lies its core conductors. These conductors are typically made of high-purity copper or, in some cases, silver-plated copper to enhance conductivity. The size and number of conductors vary depending on the specific application requirements. Multi-core cables are common in industrial settings, allowing for the transmission of multiple signals through a single cable, thereby reducing installation complexity and costs.

The conductors are meticulously designed to maintain signal integrity over long distances. Stranded conductors are often preferred for their flexibility, making them ideal for installations that require frequent movement or bending. Solid conductors, on the other hand, offer better electrical performance and are suitable for fixed installations where flexibility is not a primary concern.

Insulation: Safeguarding Signal Integrity

Surrounding the conductors is a layer of insulation, crucial for maintaining signal integrity and preventing short circuits. The choice of insulation material is determined by factors such as operating temperature, chemical resistance, and electrical properties. Common insulation materials include polyethylene (PE), polyvinyl chloride (PVC), and fluoropolymers like PTFE (Teflon).

Advanced insulation materials, such as cross-linked polyethylene (XLPE), offer enhanced temperature resistance and electrical properties, making them suitable for demanding industrial environments. The thickness and composition of the insulation layer are carefully calculated to balance factors like signal attenuation, capacitance, and overall cable diameter.

Shielding: Combating Electromagnetic Interference

One of the most critical components of instrumentation cables is the shielding layer. This layer protects the transmitted signals from electromagnetic interference (EMI) and radio frequency interference (RFI), which are prevalent in industrial settings due to the presence of heavy machinery and electrical equipment.

Various shielding techniques are employed, including braided shields, foil shields, and combination shields. Braided shields, made of woven copper or aluminum strands, offer excellent flexibility and up to 95% coverage. Foil shields, consisting of a thin layer of aluminum bonded to a polyester film, provide 100% coverage but are less flexible. Combination shields, which utilize both braided and foil layers, offer the best of both worlds, providing superior EMI/RFI protection.

Types of Instrumentation Cables and Their Applications

Thermocouple Extension Cables

Thermocouple extension cables are specialized instrumentation cables designed to transmit signals from temperature sensors to monitoring and control equipment. These cables are constructed using conductors made of the same materials as the thermocouple they are connected to, ensuring accurate temperature measurements by maintaining the same thermoelectric properties throughout the entire circuit.

The choice of conductor materials depends on the specific thermocouple type, such as Type K (chromel-alumel), Type J (iron-constantan), or Type T (copper-constantan). These cables are often color-coded for easy identification and are available in various configurations to suit different industrial applications, including high-temperature environments and corrosive atmospheres.

RTD (Resistance Temperature Detector) Cables

RTD cables are used in conjunction with resistance temperature detectors, which offer high accuracy and stability in temperature measurement. These cables typically feature copper conductors with a high purity level to minimize resistance and ensure precise readings. The number of conductors in RTD cables can vary, with 2-wire, 3-wire, and 4-wire configurations available to suit different measurement requirements and compensate for lead wire resistance.

RTD cables are often designed with robust insulation and shielding to withstand industrial environments while maintaining signal integrity. They find extensive use in applications requiring precise temperature control, such as pharmaceutical manufacturing, food processing, and petrochemical industries.

Coaxial Instrumentation Cables

Coaxial instrumentation cables are engineered for applications that demand high-frequency signal transmission with minimal interference. These cables consist of a central conductor surrounded by a dielectric insulator, a conductive shield, and an outer jacket. The coaxial design provides excellent electromagnetic shielding, making these cables ideal for transmitting sensitive analog and digital signals in noisy industrial environments.

Coaxial instrumentation cables are commonly used in data acquisition systems, process control equipment, and high-frequency measurement applications. They offer low signal attenuation, high bandwidth, and superior noise rejection, ensuring accurate data transmission over long distances in complex industrial settings.

Advancements in Instrumentation Cable Technology

Fire-Resistant and Low-Smoke Zero Halogen (LSZH) Cables

As safety standards in industrial environments become increasingly stringent, manufacturers are developing instrumentation cables with enhanced fire-resistant properties. These cables are designed to maintain circuit integrity during fire incidents, ensuring critical systems remain operational in emergency situations. Fire-resistant instrumentation cables often incorporate materials such as mica tape wrapping and special flame-retardant jackets to achieve higher fire ratings.

Low-Smoke Zero Halogen (LSZH) cables represent another significant advancement in instrumentation cable technology. These cables are formulated to emit minimal smoke and no halogenated compounds when exposed to fire, reducing the risk of toxic fume inhalation and corrosive damage to equipment. LSZH instrumentation cables are particularly valuable in enclosed spaces and critical infrastructure applications where evacuation times and equipment protection are paramount.

Fiber Optic Instrumentation Cables

The integration of fiber optic technology into instrumentation cables has revolutionized signal transmission in industrial environments. Fiber optic instrumentation cables offer numerous advantages over traditional copper-based cables, including immunity to electromagnetic interference, higher bandwidth, and the ability to transmit signals over much longer distances without signal degradation.

These cables utilize glass or plastic fibers to transmit data using pulses of light, making them ideal for applications in environments with high levels of electrical noise or where intrinsic safety is a concern. Fiber optic instrumentation cables are increasingly being adopted in industries such as oil and gas, power generation, and chemical processing, where they provide reliable, high-speed data transmission for critical monitoring and control systems.

Smart Instrumentation Cables with Integrated Diagnostics

The advent of Industry 4.0 and the Industrial Internet of Things (IIoT) has spurred the development of smart instrumentation cables with built-in diagnostic capabilities. These innovative cables incorporate sensors and monitoring systems within the cable structure itself, allowing for real-time monitoring of cable performance and environmental conditions.

Smart instrumentation cables can detect issues such as mechanical stress, temperature fluctuations, and moisture ingress, providing early warning of potential cable failures. This predictive maintenance approach enables proactive cable management, reducing unplanned downtime and improving overall system reliability. As industrial processes become increasingly automated and interconnected, smart instrumentation cables are poised to play a crucial role in ensuring seamless data flow and system integrity.

Conclusion

Instrumentation cables are the unsung heroes of industrial monitoring and control systems, providing the critical link between sensors, instruments, and control equipment. Their ability to ensure precise, reliable signal transmission in challenging environments is fundamental to the efficient and safe operation of modern industrial processes. As technology continues to advance, instrumentation cables are evolving to meet the growing demands of Industry 4.0, offering enhanced performance, safety features, and intelligent capabilities. By selecting the appropriate instrumentation cables for specific applications and leveraging the latest advancements in cable technology, industries can optimize their operations, improve safety, and drive innovation in an increasingly connected world.
