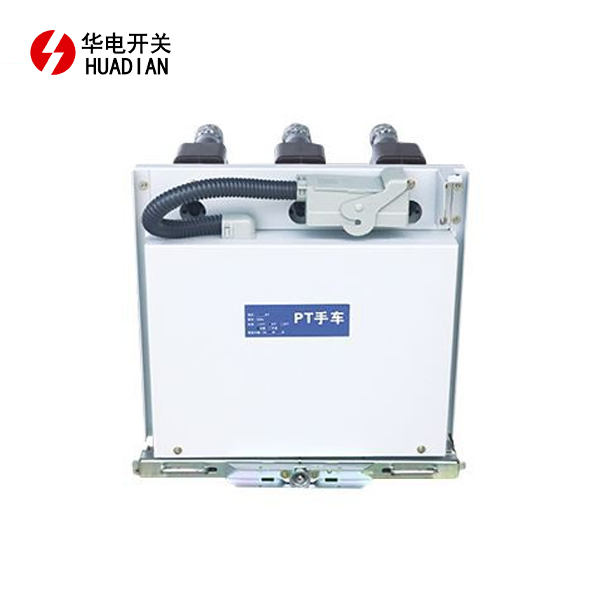

ZN63A(VS1)-12/PT Potential Transformer Handcart

Product Introduction:ZN63A(VS1)-12/PT Potential Transformer Handcart

An innovative solution for medium-voltage systems, the ZN63A(VS1)-12/PT Potential Transformer Handcart is widely utilized in power plants, substations, and other industrial settings. It guarantees optimal performance, dependability, and user-friendliness.

 Shaanxi Huadian Electric Co., Ltd. 's ZN63A(VS1)-12/PT Potential Transformer Handcart complies with international standards, delivers high-quality performance to large industries in search of sturdy and effective equipment. Its well - designed connection interfaces enable seamless integration with other electrical equipment in the system for enhanced functionality.

Product Features and Advantages

• High Reliability: The ZN63A(VS1)-12/PT is engineered for high performance and long-term stability, ensuring minimal downtime.
• Safety Features: Designed with built-in safety mechanisms to prevent electrical faults and protect equipment.
• Easy Maintenance: Modular design allows for easy access and maintenance, reducing the time and cost associated with upkeep.
• Compact Design: Space-saving design suitable for installations where space is a constraint.
• International Compliance: Certified under ISO9001:2000, ensuring that the product meets stringent international quality standards.

Product Structure

The ZN63A(VS1)-12/PT Potential Transformer Handcart has a sturdy construction and a vacuum circuit breaker system integrated into it. Its modular construction, which includes a handcart, potential transformer, and simple moving parts, makes installation and operation simple. The handcart system makes it portable and simple to transport, while the sturdy framework guarantees durability.

Main Technical Parameters

• Rated Voltage: 12 kV
• Rated Current: 630A-1250A
• Breaking Capacity: 20kA
• Insulation Level: 42 kV (1 min power frequency), 75 kV (lightning impulse)
• Cycle Life: Up to 10,000 operations
• Environmental Conditions: Operational temperature range from -25°C to +40°C

Product Use Conditions

The ZN63A(VS1)-12/PT Potential Transformer Handcart can be used in indoor settings with temperatures between -40°C and -25°C. It is made to work well in places with up to 95% relative humidity. It should be installed in a location free of corrosive gases and excessive dust for optimal performance. Also, regular inspections and proper maintenance in these conditions will further extend its lifespan and ensure reliable operation.

Product Application Scope and Field

This product is widely applicable across various industries, including:

• Power generation and distribution facilities
• Metallurgical industries
• Petrochemical plants
• Railways
• Mining
• Urban construction projects
• Rural network transformations

It is particularly effective in environments requiring reliable voltage transformation for medium-voltage systems, ensuring safe and continuous operations in critical industrial settings.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Services

Shaanxi Huadian Electric Co., Ltd. offers customizing the ZN63A(VS1)-12/PT Potential Transformer Handcart to meet your specific requirements through our OEM services. Our team of experts will collaborate with you to produce a product that meets all of your requirements, including custom dimensions, performance specifications, or branding. Without sacrificing quality, our production capacity ensures timely delivery of large orders. We also provide comprehensive after - sales support to ensure the long - term stable operation of the customized handcart, including maintenance guidance, spare parts supply, and technical consultation, building a solid partnership with our clients.

FAQ

1.What is the delivery time for bulk orders?
Typically, delivery for bulk orders takes 4-6 weeks, depending on the quantity and customization requirements.

2.Is technical support provided?
Yes, we offer comprehensive technical support, including installation guidance and post-sales assistance.

3.Can the handcart be used in outdoor settings?
No, the product is designed for indoor use. Outdoor use may compromise its performance.

4.What certifications does this product hold?
The product is ISO9001:2000 certified, ensuring that it meets international quality and safety standards.

5.What is the warranty period?
We offer a standard one-year warranty, with extended warranties available upon request.
