What voltage levels are supported by the 12~40.5kV Contact Box Series?

The 12~40.5kV contact box series supports a wide range of voltage levels, specifically designed for medium-voltage applications. These robust contact boxes are engineered to handle voltages from 12kV up to 40.5kV, making them versatile solutions for various electrical distribution systems. The series incorporates advanced insulation technologies and high-quality materials to ensure reliable performance across this voltage spectrum. Whether you're dealing with industrial power systems, utility substations, or renewable energy installations, the 12~40.5kV contact box series offers a comprehensive solution for your medium-voltage switchgear needs.

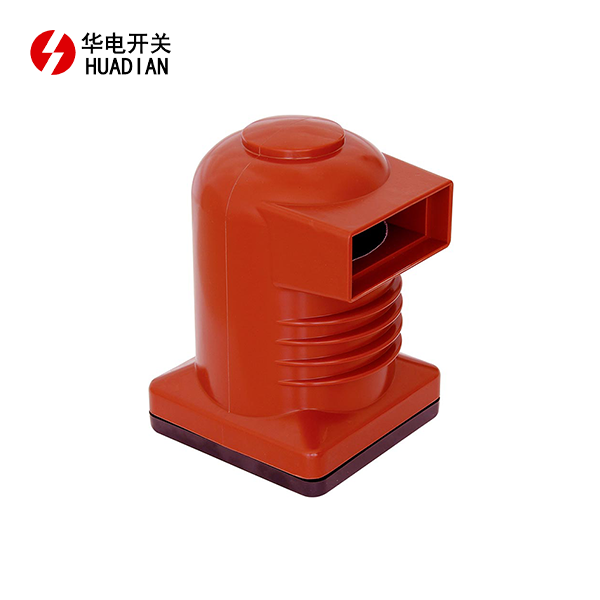

Understanding the 12~40.5kV Contact Box Series

Key Features of the Contact Box Series

The 12~40.5kV contact box series boasts an array of impressive features that set it apart in the medium-voltage switchgear market. These contact boxes are engineered with precision, utilizing cutting-edge technology to ensure optimal performance and longevity. One notable feature is the advanced arc quenching mechanism, which swiftly extinguishes electrical arcs during switching operations, enhancing safety and reducing wear on the contacts.

Moreover, the series incorporates high-grade insulation materials, such as epoxy resin, which provides excellent dielectric strength and thermal stability. This robust insulation system ensures reliable operation even in harsh environmental conditions. The contact boxes also feature a compact design, allowing for easy integration into existing switchgear assemblies and optimizing space utilization in substations and distribution centers.

Applications in Various Industries

The versatility of the 12~40.5kV contact box series makes it an ideal choice for a wide range of industries and applications. In the power generation sector, these contact boxes play a crucial role in switchgear systems for both conventional and renewable energy plants. They are particularly well-suited for wind farms and solar power installations, where reliable medium-voltage switching is essential for efficient energy distribution.

In the industrial sector, the 12~40.5kV contact box series finds applications in manufacturing facilities, mining operations, and petrochemical plants. These environments often require robust switchgear solutions capable of withstanding harsh conditions and maintaining consistent performance. The series' ability to handle voltages up to 40.5kV makes it an excellent choice for large-scale industrial power distribution systems.

Compliance with International Standards

To ensure the highest levels of safety and reliability, the 12~40.5kV contact box series is designed and manufactured in compliance with stringent international standards. These include IEC 62271-100 for high-voltage switchgear and controlgear, as well as IEEE C37.04 and C37.09 for circuit breakers. Adherence to these standards guarantees that the contact boxes meet or exceed global requirements for performance, safety, and durability.

Furthermore, the series undergoes rigorous testing procedures, including dielectric strength tests, temperature rise tests, and mechanical endurance tests. These comprehensive evaluations ensure that each contact box maintains its integrity and functionality throughout its operational lifecycle, providing users with peace of mind and reliable performance in critical electrical systems.

Technical Specifications and Performance

Voltage Ratings and Insulation Levels

The 12~40.5kV contact box series is meticulously designed to accommodate a broad spectrum of voltage ratings within the medium-voltage range. The series offers multiple voltage class options, typically including 12kV, 17.5kV, 24kV, 36kV, and 40.5kV. Each voltage class is engineered with specific insulation levels to ensure optimal performance and safety.

For instance, the 12kV class may have a rated lightning impulse withstand voltage of 75kV, while the 40.5kV class could withstand impulses up to 185kV. These high insulation levels are achieved through the use of advanced materials and precision engineering, ensuring that the contact boxes can withstand transient overvoltages and maintain system integrity.

Current Ratings and Breaking Capacity

The current-carrying capacity of the 12~40.5kV contact box series is equally impressive, catering to a wide range of load requirements. Typical rated normal currents can range from 630A to 4000A, depending on the specific model and application. This flexibility allows system designers to select the most appropriate contact box for their specific power distribution needs.

In terms of breaking capacity, the series demonstrates remarkable performance. Short-circuit breaking currents can range from 20kA to 63kA, with some high-performance models capable of handling even higher fault currents. This robust breaking capacity ensures that the contact boxes can effectively interrupt fault currents, protecting downstream equipment and maintaining system stability during abnormal conditions.

Mechanical and Electrical Endurance

The longevity and reliability of the 12~40.5kV contact box series are underscored by its exceptional mechanical and electrical endurance. These contact boxes are designed to withstand thousands of operations without significant degradation in performance. Mechanical endurance tests often demonstrate the ability to perform 10,000 or more open-close cycles, showcasing the durability of the operating mechanism.

Electrical endurance is equally impressive, with the contact boxes capable of maintaining their rated breaking and making capacities over numerous operations under load and fault conditions. This high level of endurance translates to reduced maintenance requirements and increased operational reliability, making the 12~40.5kV contact box series a cost-effective solution for long-term deployment in critical electrical infrastructure.

Innovations and Future Developments

Smart Integration and Monitoring

The evolution of the 12~40.5kV contact box series is closely aligned with the growing trend of smart grid technologies. Recent innovations have focused on integrating advanced monitoring and diagnostic capabilities into these contact boxes. This includes the incorporation of sensors that can continuously monitor temperature, pressure, and contact wear, providing real-time data on the health and performance of the switchgear.

These smart features enable predictive maintenance strategies, allowing operators to anticipate potential issues before they escalate into failures. By leveraging data analytics and machine learning algorithms, the next generation of contact boxes can offer unprecedented levels of reliability and operational efficiency. This proactive approach to maintenance not only reduces downtime but also extends the overall lifespan of the switchgear equipment.

Environmentally Friendly Solutions

As environmental concerns continue to shape the energy sector, the development of eco-friendly switchgear solutions has become a priority. The 12~40.5kV contact box series is at the forefront of this trend, with ongoing research focused on reducing the environmental impact of these critical components. One significant area of development is the exploration of alternative insulation mediums that can replace traditional SF6 gas, known for its high global warming potential.

Innovative solutions such as vacuum interrupters and solid insulation technologies are being incorporated into the design of contact boxes, offering comparable performance with a significantly reduced environmental footprint. These advancements not only align with global sustainability goals but also anticipate future regulatory requirements, ensuring that the 12~40.5kV Contact Box Series remains a viable and compliant solution for years to come.

Enhanced Safety Features

Safety remains a paramount concern in the design and development of medium-voltage switchgear. The latest iterations of the 12~40.5kV contact box series incorporate advanced safety features that go beyond traditional protective measures. These include arc-resistant designs that contain and channel the energy of potential internal arcs away from personnel, significantly reducing the risk of injury in the event of a fault.

Additionally, the integration of interlocking mechanisms and fail-safe controls ensures that operation sequences are performed correctly, preventing dangerous misoperations. Some models also feature remote operation capabilities, allowing personnel to control the switchgear from a safe distance. These enhanced safety features not only protect personnel but also contribute to the overall reliability and operational continuity of electrical systems.

Conclusion

The 12~40.5kV contact box series stands as a testament to the advancements in medium-voltage switchgear technology. Its ability to support a wide range of voltage levels, from 12kV to 40.5kV, coupled with its robust design and innovative features, makes it an indispensable component in modern electrical distribution systems. As the energy landscape continues to evolve, these contact boxes are poised to play a crucial role in ensuring the reliability, efficiency, and safety of power networks across various industries. With ongoing developments in smart technology, environmental sustainability, and enhanced safety features, the future of the 12~40.5kV contact box series looks promising, offering solutions that will meet the challenges of tomorrow's electrical infrastructure.

Contact Us

Are you looking to enhance your medium-voltage switchgear with reliable, high-performance contact boxes? Shaanxi Huadian Electric Co., Ltd. offers cutting-edge solutions tailored to your specific needs. For more information about our 12~40.5kV Contact Box Series and how it can benefit your electrical systems, please contact us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com. Our team of experts is ready to assist you in finding the perfect switchgear solution for your project.
