What is the difference between an RCCB and a small leakage circuit breaker?

The primary distinction between a residual current circuit breaker (RCCB) and a small leakage circuit breaker lies in their functionality and design. An RCCB is specifically designed to protect against residual current faults, disconnecting the circuit when it detects an imbalance between the incoming and outgoing currents. On the other hand, a small leakage circuit breaker combines the functions of an RCCB with those of a traditional circuit breaker, offering protection against both residual current faults and overcurrent situations. This dual functionality makes small leakage circuit breakers more versatile and increasingly popular in modern electrical installations, especially in residential and light commercial applications.

The Basics of RCCBs and Small Leakage Circuit Breakers

Defining RCCBs: Purpose and Functionality

Residual Current Circuit Breakers (RCCBs) are crucial components in electrical safety systems. These devices monitor the flow of electricity through a circuit, detecting any imbalance between the current entering and leaving the system. When an RCCB identifies a discrepancy, typically caused by current leakage to ground, it swiftly interrupts the power supply, mitigating the risk of electric shock and fire hazards.

RCCBs operate on the principle of differential current sensing. They continuously compare the current flowing through the live conductor with that returning through the neutral conductor. If the difference exceeds a predetermined threshold, usually 30mA for domestic applications, the RCCB trips, disconnecting the circuit. This rapid response is essential for protecting individuals from potentially fatal electric shocks.

Small Leakage Circuit Breakers: A Comprehensive Solution

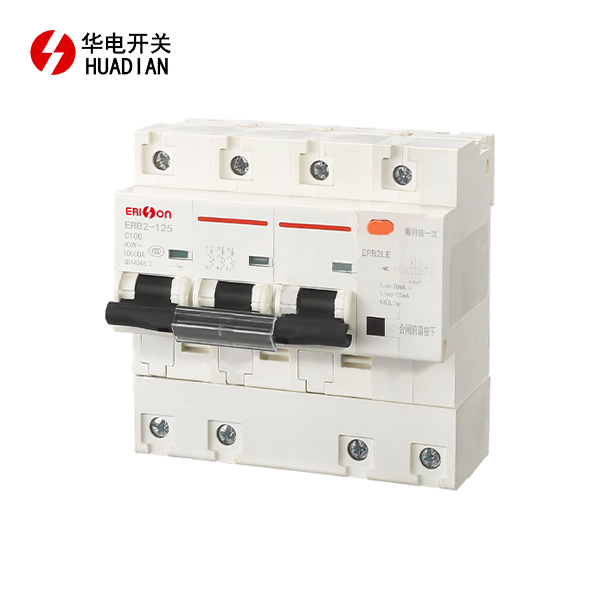

Small leakage circuit breakers, also known as Residual Current Circuit Breaker with Overcurrent Protection (RCBO), represent an evolution in electrical safety devices. These innovative units combine the functionalities of an RCCB with those of a Miniature Circuit Breaker (MCB). This integration results in a single device capable of providing protection against both residual current faults and overcurrent situations.

The small leakage circuit breaker incorporates two distinct mechanisms within its compact housing. The residual current detection component operates similarly to an RCCB, monitoring for current imbalances. Simultaneously, the overcurrent protection mechanism functions like a traditional circuit breaker, responding to excessive current flow caused by overloads or short circuits.

Key Differences in Design and Application

While both RCCBs and small leakage circuit breakers serve to enhance electrical safety, their design and application differ significantly. RCCBs are typically installed as standalone devices, often protecting multiple circuits or an entire distribution board. They excel in scenarios where residual current protection is the primary concern, such as in bathrooms or outdoor areas prone to moisture.

Conversely, small leakage circuit breakers are designed for individual circuit protection. Their compact size and dual functionality make them ideal for modern consumer units, where space is often at a premium. By combining residual current and overcurrent protection, these devices streamline installation processes and reduce the overall footprint of electrical panels.

Technical Specifications and Performance Characteristics

Sensitivity and Trip Times

The sensitivity of RCCBs and small leakage circuit breakers is a critical factor in their performance. Standard RCCBs typically offer sensitivities ranging from 10mA to 300mA, with 30mA being the most common for general-purpose applications. Small leakage circuit breakers often match these sensitivity levels but may also provide adjustable settings to accommodate specific installation requirements.

Trip times for both devices are remarkably swift, with typical response times measured in milliseconds. This rapid action is crucial for preventing sustained exposure to dangerous fault currents. Small leakage circuit breakers may exhibit slightly longer trip times due to the coordination required between their residual current and overcurrent protection mechanisms.

Current Ratings and Breaking Capacity

RCCBs are available in various current ratings, typically ranging from 16A to 125A. These ratings indicate the maximum continuous current the device can safely handle under normal operating conditions. The breaking capacity of RCCBs, which denotes their ability to interrupt fault currents, is generally lower than that of dedicated circuit breakers.

Small leakage circuit breakers, encompassing the functionality of MCBs, offer a broader range of current ratings and breaking capacities. Current ratings commonly span from 6A to 63A, catering to diverse circuit requirements. The breaking capacity of these devices can be significantly higher than that of standard RCCBs, often reaching 6kA or more, enhancing their suitability for a wider array of applications.

Environmental Considerations and Reliability

Both RCCBs and small leakage circuit breakers must withstand various environmental challenges to maintain their reliability. Factors such as temperature fluctuations, humidity, and electromagnetic interference can impact device performance. Manufacturers employ advanced materials and design techniques to ensure these protective devices operate consistently across diverse conditions.

Small leakage circuit breakers, with their integrated design, often demonstrate enhanced resistance to environmental stressors. The compact nature of these devices minimizes exposure to external factors, potentially leading to improved long-term reliability. However, this integration also means that a failure in either the residual current or overcurrent protection mechanism necessitates the replacement of the entire unit.

Installation, Maintenance, and Cost Considerations

Installation Procedures and Compatibility

The installation of RCCBs typically involves connecting the device to the main distribution board or as a separate unit protecting multiple circuits. This process requires careful consideration of load balancing and selectivity to ensure effective protection without unnecessary tripping. RCCBs are generally compatible with a wide range of electrical systems, making them versatile options for retrofitting existing installations.

Small leakage circuit breakers, designed for individual circuit protection, offer a more streamlined installation process. Their compact size and dual functionality allow for direct replacement of traditional MCBs in consumer units. This plug-and-play approach simplifies upgrades and reduces installation time. However, care must be taken to ensure the selected device matches the specific requirements of the circuit it's protecting, including current rating and breaking capacity.

Maintenance Requirements and Lifespan

Maintenance of RCCBs primarily involves regular testing to ensure their continued functionality. Most devices incorporate a test button that simulates a fault condition, allowing users to verify the RCCB's tripping mechanism. Industry standards recommend monthly testing for optimal safety assurance. The lifespan of an RCCB can extend to 20 years or more with proper maintenance and usage within specified parameters.

Small leakage circuit breakers share similar maintenance requirements to RCCBs, with the added consideration of their overcurrent protection functionality. Regular testing of both the residual current and overcurrent mechanisms is essential. The integrated nature of these devices may result in a slightly shorter overall lifespan compared to separate RCCB and MCB combinations, typically ranging from 15 to 20 years.

Cost Analysis: Initial Investment vs. Long-term Value

The initial cost of RCCBs is generally lower than that of small leakage circuit breakers, making them an attractive option for budget-conscious installations. However, when considering the combined cost of separate RCCBs and MCBs required for comprehensive protection, the price differential narrows significantly.

Small leakage circuit breakers, while commanding a higher upfront cost, offer long-term value through their integrated functionality. The reduced space requirements, simplified installation, and comprehensive protection can lead to cost savings over time. Additionally, the potential for reduced maintenance and replacement costs due to the consolidated design further enhances their economic appeal.

Conclusion

In conclusion, the choice between RCCBs and small leakage circuit breakers depends on specific application requirements and installation constraints. RCCBs excel in providing dedicated residual current protection for multiple circuits, while small leakage circuit breakers offer a compact, all-in-one solution for individual circuit safety. As electrical systems continue to evolve, the integrated approach of small leakage circuit breakers is gaining traction, particularly in residential and light commercial settings. Understanding the nuances between these devices empowers engineers and consumers to make informed decisions, ensuring optimal electrical safety and efficiency in their installations.
