What is the lifespan of a DFW10-12 Cable Branch Box?

The DFW10-12 cable branch box, a crucial component in electrical distribution systems, boasts an impressive lifespan of approximately 20 to 30 years under normal operating conditions. This longevity is attributed to its robust construction, high-quality materials, and advanced design features. The DFW10-12 is engineered to withstand various environmental factors and electrical stresses, ensuring reliable performance over extended periods. However, it's important to note that proper maintenance, regular inspections, and adherence to manufacturer guidelines can significantly influence and potentially extend the operational life of this essential electrical equipment.

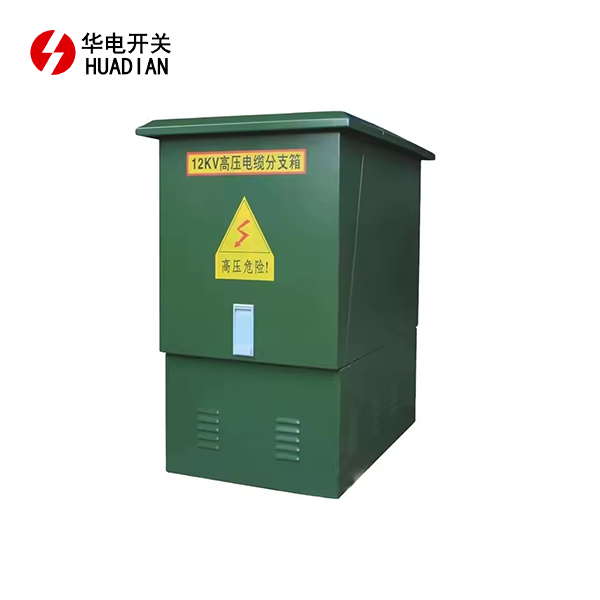

What is the DFW10-12 Cable Branch Box?

Key Features and Specifications

The DFW10-12 cable branch box is a versatile and indispensable component in electrical distribution networks. It's designed to facilitate the branching of main power cables into multiple secondary circuits, ensuring efficient power distribution across various applications. This particular model is rated for 10kV voltage systems and can accommodate up to 12 outgoing circuits, making it suitable for a wide range of industrial and commercial settings.

One of the standout features of the DFW10-12 is its compact design, which allows for easy installation in confined spaces. Despite its space-saving dimensions, it doesn't compromise on functionality or safety. The box is constructed using high-grade materials that offer excellent insulation properties and mechanical strength, contributing to its long operational life.

Construction and Materials

The durability of the DFW10-12 cable branch box is largely attributed to its robust construction and carefully selected materials. The outer enclosure is typically made from corrosion-resistant stainless steel or galvanized steel, providing excellent protection against environmental factors such as moisture, dust, and UV radiation.

Internally, the box utilizes high-quality insulating materials such as epoxy resin or XLPE (cross-linked polyethylene) to ensure reliable electrical insulation and heat resistance. These materials are chosen for their excellent dielectric properties and ability to withstand thermal cycling, which is crucial for maintaining the box's integrity over its operational lifespan.

Safety Features

Safety is paramount in electrical distribution systems, and the DFW10-12 cable branch box incorporates several features to ensure safe operation. It includes reliable earthing systems, overcurrent protection mechanisms, and insulation monitoring devices. These safety features not only protect the equipment and connected circuits but also contribute to the overall longevity of the branch box by preventing damage from electrical faults.

The box is designed with IP65 or higher ingress protection ratings, ensuring it remains dust-tight and protected against water jets. This level of protection is crucial for maintaining the internal components in optimal condition, thereby extending the operational life of the equipment.

Factors Affecting the Lifespan of DFW10-12 Cable Branch Box

Environmental Conditions

The environment in which a DFW10-12 cable branch box operates plays a significant role in determining its lifespan. Extreme temperatures, high humidity, corrosive atmospheres, and exposure to UV radiation can all impact the box's durability. In harsh environments, such as coastal areas or industrial settings with corrosive chemicals, the lifespan may be reduced unless additional protective measures are implemented.

Temperature fluctuations can cause thermal stress on the materials, potentially leading to degradation over time. Similarly, high humidity levels can promote corrosion and affect the insulation properties of internal components. It's crucial to consider these factors when installing the DFW10-12 and implement appropriate protective measures to mitigate environmental impacts.

Electrical Stress

The electrical stress experienced by the DFW10-12 cable branch box is another critical factor influencing its lifespan. Regular exposure to voltage surges, harmonics, or overloading can accelerate the aging process of insulation materials and other components. Proper sizing and selection of the branch box for the specific application are essential to ensure it operates within its designed electrical parameters.

Implementing surge protection devices and maintaining balanced loads across the circuits can help reduce electrical stress and extend the operational life of the DFW10-12. Regular monitoring of electrical parameters and prompt addressing of any anomalies are crucial practices in preserving the box's integrity.

Maintenance Practices

The maintenance regimen employed for the DFW10-12 cable branch box significantly impacts its lifespan. Regular inspections, cleaning, and preventive maintenance can identify and address potential issues before they escalate into major problems. This proactive approach can substantially extend the operational life of the equipment.

Maintenance activities typically include visual inspections for signs of physical damage or corrosion, checking and tightening of electrical connections, and testing of insulation resistance. Thermal imaging can be employed to detect hot spots that may indicate developing issues. Adhering to manufacturer-recommended maintenance schedules and procedures is crucial for maximizing the lifespan of the DFW10-12.

Extending the Lifespan of DFW10-12 Cable Branch Box

Proper Installation Techniques

The longevity of a DFW10-12 cable branch box begins with proper installation. Ensuring correct mounting, adequate ventilation, and appropriate cable entries are crucial steps in the installation process. Proper sealing of cable entries and maintaining the integrity of the box's ingress protection are essential for preventing moisture and contaminant ingress, which can significantly impact the box's lifespan.

It's also important to consider the specific environmental conditions at the installation site. In areas prone to flooding or high humidity, elevated mounting or additional protective enclosures may be necessary. Similarly, in locations with extreme temperature variations, thermal management solutions might be required to maintain optimal operating conditions for the branch box.

Regular Inspections and Preventive Maintenance

Implementing a robust inspection and maintenance program is key to extending the lifespan of the DFW10-12 cable branch box. Regular visual inspections can help identify early signs of wear, corrosion, or damage. These inspections should cover both external and internal components, checking for signs of overheating, loose connections, or degradation of insulation materials.

Preventive maintenance activities might include cleaning of the enclosure, tightening of electrical connections, and replacement of worn gaskets or seals. Periodic testing of insulation resistance and earth continuity can help detect developing issues before they lead to equipment failure. By addressing minor issues promptly, major failures can be averted, thus extending the operational life of the branch box.

Upgrading and Retrofitting

As technology advances, opportunities may arise to upgrade or retrofit existing DFW10-12 cable branch boxes to enhance their performance and extend their lifespan. This could involve replacing older components with newer, more efficient ones or adding modern monitoring and protection systems.

For instance, upgrading to more advanced insulation materials or implementing smart monitoring systems can significantly improve the box's reliability and operational life. However, any upgrades or modifications should be carefully evaluated and implemented by qualified professionals to ensure they do not compromise the integrity or safety of the equipment.

Conclusion

The DFW10-12 cable branch box is a robust and essential component in electrical distribution systems, designed to provide reliable service for 20 to 30 years under normal conditions. However, its actual lifespan can be significantly influenced by various factors including environmental conditions, electrical stress, and maintenance practices. By understanding these factors and implementing proper installation, regular maintenance, and timely upgrades, the operational life of the DFW10-12 can be optimized and potentially extended beyond its expected lifespan. This not only ensures continuous and reliable electrical distribution but also provides a cost-effective solution for long-term infrastructure planning.
