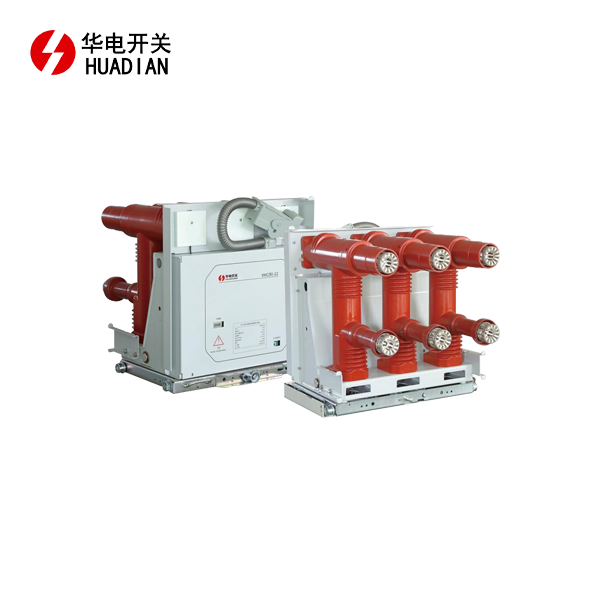

Exploring the VHC(R)-12 Series: The Ultimate Vacuum Contactor-Fuse Combination Electric Appliance for Modern Applications

In the ever-evolving landscape of electrical engineering, innovative solutions are constantly emerging to meet the demands of modern applications. Among these cutting-edge technologies, the VHC(R)-12 Series Vacuum Contactor-fuse Combination Electric Appliance stands out as a game-changer in the field of power distribution and control. This remarkable device combines the reliability of vacuum contactors with the protective capabilities of fuses, offering a comprehensive solution for various industrial and commercial settings.

Understanding the VHC(R)-12 Series: A Technological Marvel

The Fundamentals of Vacuum Contactor Technology

At the heart of the VHC(R)-12 Series lies the vacuum contactor, a sophisticated switching device that operates in a vacuum-sealed environment. This design eliminates the need for arc-extinguishing media, resulting in a more compact, efficient, and environmentally friendly solution. The vacuum interrupter technology ensures rapid arc extinction, minimizing wear and tear on the contacts and extending the operational lifespan of the device.

Fuse Integration: Enhancing Protection and Versatility

The VHC(R)-12 Series takes protection to the next level by incorporating fuse technology. This integration allows for precise current limitation and fault isolation, safeguarding downstream equipment from potentially catastrophic events. The carefully selected fuses work in harmony with the vacuum contactor, providing a coordinated approach to circuit protection that is both reliable and responsive.

Advanced Control and Monitoring Features

Beyond its core functionality, the VHC(R)-12 Series Vacuum Contactor-fuse Combination Electric Appliance boasts an array of advanced control and monitoring features. These include real-time status indicators, remote operation capabilities, and compatibility with modern industrial communication protocols. Such features empower operators with unprecedented levels of control and insight into their electrical systems, facilitating proactive maintenance and optimized performance.

Applications and Benefits of the VHC(R)-12 Series

Industrial Power Distribution Systems

In industrial settings, the VHC(R)-12 Series plays a crucial role in ensuring reliable power distribution across various critical processes and equipment. Its robust design, coupled with a high interrupting capacity, makes it highly effective for controlling heavy-duty motors, transformers, and other high-power loads. The device's ability to endure frequent switching operations without compromising performance ensures its reliability in demanding environments, such as manufacturing plants, oil refineries, and chemical processing facilities, where operational continuity and safety are paramount.

Renewable Energy Integration

As the world transitions to sustainable energy, the VHC(R)-12 Series plays a pivotal role in integrating renewable energy sources into traditional power grids. Its rapid switching capabilities and advanced protection mechanisms are essential for handling the fluctuating power outputs of solar and wind farms. By quickly responding to changes in power generation, the VHC(R)-12 Series helps stabilize the grid, smooth out voltage fluctuations, and ensure a reliable, continuous power supply to end-users, making it an essential component in modern energy systems.

Commercial Building Infrastructure

In commercial buildings, where uptime and safety are critical, the VHC(R)-12 Series Vacuum Contactor-fuse Combination Electric Appliance provides a reliable and efficient solution for power distribution. Its compact design allows for easy integration into space-constrained environments, while its low maintenance requirements and long lifespan make it a cost-effective choice for facility managers. Additionally, its ability to seamlessly integrate with building management systems (BMS) enhances the functionality of smart building solutions, enabling better energy monitoring, predictive maintenance, and optimized operational performance.

Technical Specifications and Design Considerations

Electrical Ratings and Performance Metrics

The VHC(R)-12 Series is designed to operate at voltages up to 12kV, with current ratings tailored to meet a wide range of application requirements. Its impressive interrupting capacity, typically ranging from 25kA to 40kA, ensures robust protection against short circuits and overloads. The device's fast opening and closing times, often measured in milliseconds, contribute to its exceptional performance in critical power switching scenarios.

Mechanical Durability and Environmental Resilience

Built to withstand the rigors of industrial environments, the VHC(R)-12 Series Vacuum Contactor-fuse Combination Electric Appliance boasts impressive mechanical durability. Its sealed vacuum interrupter design protects critical components from dust, moisture, and other contaminants, ensuring consistent performance even in harsh conditions. The device's compact form factor and flexible mounting options make it suitable for a variety of installation scenarios, from switchgear cabinets to outdoor enclosures.

Safety Features and Compliance Standards

Safety is a paramount concern in electrical systems, and the VHC(R)-12 Series addresses this with a comprehensive suite of safety features. These include interlocking mechanisms to prevent inadvertent operation, visible isolation indicators, and fail-safe designs that ensure the device defaults to a safe state in the event of a malfunction. Moreover, the VHC(R)-12 Series is engineered to comply with international standards such as IEC 62271-100, guaranteeing its performance and safety across global markets.

Conclusion

The VHC(R)-12 Series Vacuum Contactor-fuse Combination Electric Appliance represents a significant leap forward in power distribution and control technology. Its innovative design, combining the strengths of vacuum contactors and fuses, offers unparalleled protection, reliability, and efficiency for modern electrical systems. As industries continue to evolve and demand more from their power infrastructure, the VHC(R)-12 Series stands ready to meet these challenges head-on, providing a versatile and robust solution for a wide array of applications.
