What is the difference between CT and potential transformer Handcart?

In the world of electrical power systems, current transformers (CTs) and potential transformers (PTs) play crucial roles in measurement and protection. While both are essential components, they serve different purposes and have distinct characteristics. This article will delve into the key differences between CT and PT handcarts, with a special focus on the VEGM-12/PT Potential Transformer Handcart.

Understanding Current Transformers (CTs)

Purpose and Function of CTs

Current transformers are designed to measure high-magnitude alternating currents in power systems. They step down the primary current to a standardized secondary current, typically 5A or 1A, which can be safely measured by instruments and relays. CTs are indispensable for monitoring power consumption, fault detection, and protection of electrical equipment.

CT Construction and Design

CTs consist of a primary winding, which is usually a single turn of heavy conductor, and a secondary winding with multiple turns of fine wire. The primary winding is connected in series with the circuit being measured, while the secondary winding is connected to measuring instruments or protective relays. The core material is typically high-permeability silicon steel laminations to minimize losses.

Applications of CT Handcarts

CT handcarts are mobile units that house current transformers and associated equipment. They are used in substations and industrial settings for temporary measurements, testing, and maintenance purposes. These handcarts allow technicians to easily transport and set up CTs where needed, providing flexibility in electrical system monitoring and troubleshooting.

Exploring Potential Transformers (PTs)

Purpose and Function of PTs

Potential transformers, also known as voltage transformers (VTs), are designed to step down high voltages to safer, measurable levels. They provide a precise voltage ratio, allowing accurate measurement of system voltages for metering, protection, and control purposes. PTs are essential for monitoring power quality, voltage regulation, and synchronization in electrical grids.

PT Construction and Design

PTs typically have a primary winding connected across the high-voltage line and a secondary winding that produces a proportional, lower voltage. The windings are insulated from each other and the core, with the level of insulation determined by the system voltage. PTs often incorporate multiple secondary windings for different applications, such as metering and protection.

Applications of PT Handcarts

PT handcarts, like the VEGM-12/PT Potential Transformer Handcart, are mobile units designed to house and transport potential transformers. These handcarts are invaluable in substations and industrial environments where temporary voltage measurements or equipment testing is required. They offer a convenient and safe way to deploy PTs without the need for permanent installation.

Key Differences between CT and PT Handcarts

Measurement Parameters

The fundamental difference between CT and PT handcarts lies in the electrical parameters they measure. CT handcarts are equipped to measure current, while PT handcarts, such as the VEGM-12/PT Potential Transformer Handcart, are designed to measure voltage. This distinction is crucial in determining which type of handcart is appropriate for a specific measurement task.

Connection Methods

CT handcarts are connected in series with the circuit being measured, as current transformers require the full load current to pass through their primary winding. In contrast, PT handcarts are connected in parallel across the voltage source. The VEGM-12/PT Potential Transformer Handcart, for instance, would be connected across the high-voltage line to measure the system voltage.

Safety Considerations

Both CT and PT handcarts require careful handling, but they present different safety concerns. CT handcarts must never have their secondary circuit opened while current is flowing in the primary, as this can lead to dangerously high voltages. PT handcarts, including the VEGM-12/PT Potential Transformer Handcart, must be properly grounded and insulated to prevent electric shock hazards associated with high voltages.

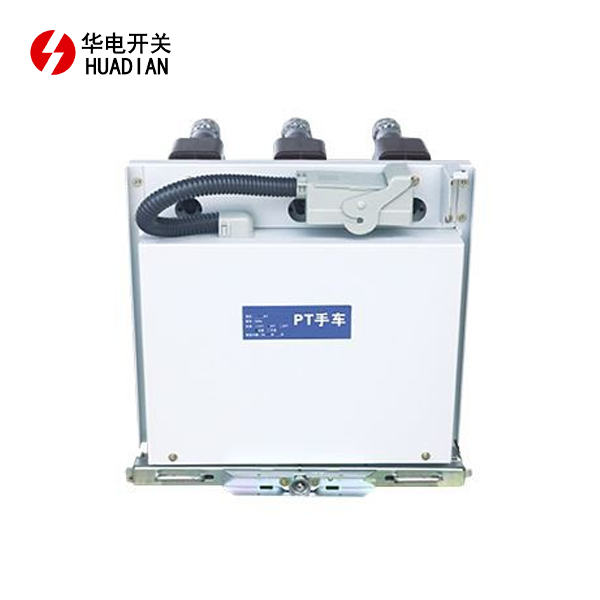

The VEGM-12/PT Potential Transformer Handcart: A Closer Look

Features and Specifications

The VEGM-12/PT Potential Transformer Handcart is a state-of-the-art mobile voltage measurement solution. It is designed for medium-voltage applications up to 12 kV, offering precise voltage transformation for metering and protection purposes. The handcart typically includes safety interlocks, earthing switches, and surge arresters to ensure safe operation in various electrical environments.

Benefits of Using VEGM-12/PT

One of the key advantages of the VEGM-12/PT Potential Transformer Handcart is its portability. It allows for quick deployment and relocation of voltage measurement equipment without the need for permanent installation. This flexibility is particularly valuable during maintenance, commissioning, or temporary monitoring of electrical systems. The handcart's robust construction ensures reliability and longevity in demanding industrial and utility settings.

Maintenance and Calibration

To ensure accurate measurements and safe operation, the VEGM-12/PT Potential Transformer Handcart requires regular maintenance and calibration. This includes checking insulation integrity, verifying transformation ratios, and ensuring all safety features are functioning correctly. Proper maintenance not only extends the life of the equipment but also guarantees the reliability of voltage measurements critical for system protection and control.

Choosing Between CT and PT Handcarts

Assessing Measurement Needs

When deciding between CT and PT handcarts, the primary consideration is the type of measurement required. If current monitoring is the main objective, a CT handcart is the appropriate choice. For voltage measurements, particularly in medium-voltage systems, the VEGM-12/PT Potential Transformer Handcart or similar PT handcarts are ideal. In some cases, both types may be necessary for comprehensive system analysis.

System Voltage Considerations

The voltage level of the electrical system is a crucial factor in selecting the appropriate handcart. CT handcarts are available for a wide range of current ratings, while PT handcarts like the VEGM-12/PT are designed for specific voltage ranges. It's essential to choose a handcart that matches the system voltage to ensure accurate measurements and safe operation.

Portability and Ease of Use

Both CT and PT handcarts offer portability, but their size and weight can vary. The VEGM-12/PT Potential Transformer Handcart is designed for ease of transportation and setup, making it suitable for applications requiring frequent relocation. When choosing between handcart types, consider the frequency of movement and the accessibility of measurement points in your electrical system.

Conclusion

Understanding the differences between CT and PT handcarts is crucial for effective electrical system management. While CT handcarts excel in current measurement, PT handcarts like the VEGM-12/PT Potential Transformer Handcart are indispensable for voltage monitoring. Each type serves a unique purpose in ensuring the safety, efficiency, and reliability of power systems. By carefully considering your measurement needs, system specifications, and operational requirements, you can select the most appropriate handcart solution for your electrical infrastructure.
