What is a High Voltage Vacuum Load Switch and Fuse Combination?

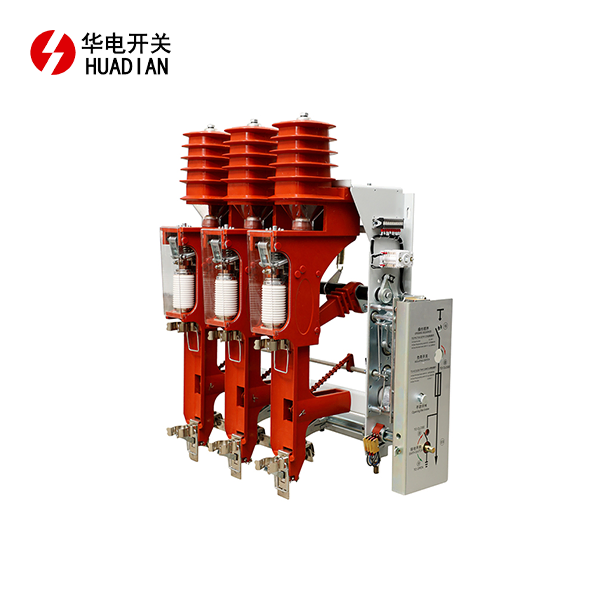

A High Voltage Vacuum Load Switch and Fuse Combination is a specialized electrical device that combines the functionalities of a vacuum load switch and a fuse in a single unit. This innovative apparatus is designed to provide efficient load switching capabilities and robust overcurrent protection for high voltage electrical systems. The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliance exemplifies this technology, offering enhanced safety, reliability, and performance in power distribution networks. By integrating these two crucial components, this device streamlines installations, reduces maintenance requirements, and optimizes space utilization in electrical substations and industrial settings.

Components and Functionality of High Voltage Vacuum Load Switch and Fuse Combinations

Vacuum Interrupter Technology

The heart of the High Voltage Vacuum Load Switch and Fuse Combination lies in its vacuum interrupter technology. This advanced component utilizes a sealed vacuum chamber to extinguish arcs that form during switching operations. The vacuum environment provides superior dielectric strength and arc-quenching capabilities, enabling the device to handle high voltage loads efficiently. In the FZRN25A-12D model, the vacuum interrupter ensures rapid and reliable switching, minimizing wear and extending the operational lifespan of the equipment.

Fuse Integration

Integrated within the same housing as the vacuum switch, the fuse component of the High Voltage Vacuum Load Switch and Fuse Combination serves as a crucial protective element. This fuse is specifically designed to operate at high voltages and is capable of interrupting fault currents quickly and safely. The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliance incorporates high-rupturing capacity fuses that provide excellent current-limiting characteristics, enhancing the overall protection of the electrical system against overloads and short circuits.

Mechanical Operating Mechanism

The mechanical operating mechanism in a High Voltage Vacuum Load Switch and Fuse Combination is engineered for reliability and precision. This system controls the opening and closing of the vacuum interrupter, ensuring smooth and consistent operation. In the FZRN25A-12D, the mechanism is designed to withstand numerous operations without deterioration, providing long-term dependability. The operating mechanism also incorporates safety interlocks and position indicators, enhancing the overall safety and ease of use of the device.

Applications and Benefits of FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination

Power Distribution Networks

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliance finds extensive application in power distribution networks. Its compact design and integrated functionality make it ideal for use in substations, where space is often at a premium. The device's ability to switch loads efficiently and provide overcurrent protection in a single unit simplifies network design and improves overall reliability. In distribution systems, the FZRN25A-12D can be used for sectionalizing, isolating faulty sections, and managing load transfers, contributing to enhanced grid stability and reduced downtime.

Industrial Facilities

Industrial facilities with high power requirements benefit significantly from the implementation of the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliance. The device's robust construction and high voltage handling capabilities make it suitable for heavy-duty industrial applications. In manufacturing plants, chemical processing facilities, and large-scale industrial complexes, the FZRN25A-12D provides reliable load switching and critical overcurrent protection for expensive equipment and machinery. Its vacuum technology ensures minimal maintenance requirements, reducing operational costs and improving productivity in industrial settings.

Renewable Energy Integration

As the global shift towards renewable energy continues, the FZRN25A-12D plays a crucial role in integrating these new power sources into existing grids. Wind farms and solar power plants require reliable switching and protection devices to manage the variable nature of renewable energy generation. The High Voltage Vacuum Load Switch and Fuse Combination's fast response times and high-performance characteristics make it well-suited for these applications. The FZRN25A-12D can effectively handle the switching operations required for connecting or disconnecting renewable energy sources from the grid, ensuring smooth integration and protecting expensive inverter equipment.

Technical Specifications and Safety Features of FZRN25A-12D

Voltage and Current Ratings

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliance is designed to operate at high voltage levels typically found in medium-voltage distribution systems. Its nominal voltage rating is 12 kV, making it suitable for a wide range of applications in power distribution networks and industrial facilities. The device boasts a rated current of 630 A, allowing it to handle substantial load currents efficiently. These ratings ensure that the FZRN25A-12D can meet the demands of modern electrical systems while providing a safety margin for unexpected load variations.

Interrupting Capacity

One of the key features of the FZRN25A-12D is its impressive interrupting capacity. The vacuum interrupter technology, combined with the high-rupturing capacity fuse, enables the device to safely interrupt fault currents up to 25 kA. This high interrupting capacity ensures that the FZRN25A-12D can effectively protect electrical systems from potentially catastrophic short-circuit events. The fast-acting nature of the vacuum interrupter and fuse combination minimizes the duration of fault currents, reducing the risk of equipment damage and enhancing overall system reliability.

Safety Interlocks and Indicators

Safety is paramount in high voltage electrical systems, and the FZRN25A-12D incorporates several features to ensure safe operation and maintenance. The device is equipped with mechanical interlocks that prevent unauthorized or accidental operation of the switch when the fuse compartment is open. Clear position indicators provide visual confirmation of the switch status, reducing the risk of operational errors. Additionally, the FZRN25A-12D features an earth switch mechanism, allowing for safe grounding of the equipment during maintenance procedures. These safety features, combined with the inherent arc-quenching properties of the vacuum interrupter, make the FZRN25A-12D a secure choice for high voltage applications.

Conclusion

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliance represents a significant advancement in electrical power distribution technology. By combining efficient load switching capabilities with robust overcurrent protection in a single, compact unit, it offers numerous benefits for power networks, industrial facilities, and renewable energy installations. Its advanced vacuum interrupter technology, high-performance fuse integration, and comprehensive safety features make it a reliable and versatile solution for modern electrical systems. As power distribution networks continue to evolve and face new challenges, devices like the FZRN25A-12D will play a crucial role in ensuring safe, efficient, and reliable electrical power delivery.
