Are Copper-Aluminium Static Contacts Pone to Corrosion?

Copper-aluminium static contacts, widely used in electrical systems, are indeed susceptible to corrosion under certain conditions. However, this proneness to corrosion is not as severe as one might initially assume. The combination of copper and aluminium in these contacts creates a unique alloy that offers both conductivity and durability. While corrosion can occur, especially in humid or saltwater environments, modern manufacturing techniques and protective coatings have significantly mitigated this issue. The key to preventing corrosion lies in proper design, material selection, and maintenance. When engineered correctly and used in appropriate applications, copper-aluminium static contacts can provide reliable performance with minimal corrosion concerns.

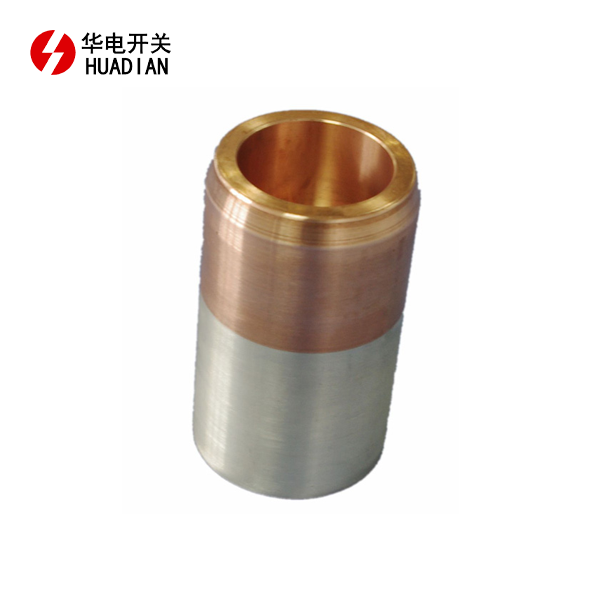

Understanding Copper-Aluminium Static Contacts

Composition and Properties of Copper-Aluminium Alloys

Copper-aluminium static contacts are composed of a carefully engineered alloy that combines the beneficial properties of both metals. This amalgamation results in a material that boasts excellent electrical conductivity, inherited from copper, and enhanced strength and lightweight characteristics, courtesy of aluminium. The specific ratio of copper to aluminium can vary depending on the intended application, but typically ranges from 70-90% copper and 10-30% aluminium.

The unique properties of this alloy include:

- High electrical conductivity

- Improved mechanical strength compared to pure copper

- Reduced weight, making it ideal for certain applications

- Enhanced resistance to wear and tear

These properties make copper-aluminium static contacts a popular choice in various electrical systems, particularly in high-voltage applications where performance and reliability are paramount.

Applications in Electrical Systems

Copper-aluminium static contacts find extensive use in a wide array of electrical systems and components. Their versatility and performance characteristics make them indispensable in numerous applications, including:

- Circuit breakers and switchgear

- Power distribution systems

- Transformers

- Industrial machinery

- Automotive electrical systems

- Renewable energy installations

In these applications, copper-aluminium static contacts serve as crucial components, facilitating the flow of electricity while withstanding the mechanical stresses associated with frequent operation. Their ability to handle high currents and voltages makes them particularly valuable in power transmission and distribution networks.

Advantages Over Single-Metal Contacts

Copper-aluminium static contacts offer several advantages over their single-metal counterparts:

- Cost-effectiveness: By incorporating aluminium, these contacts can be more economical than pure copper alternatives, without significantly compromising performance.

- Weight reduction: The inclusion of aluminium reduces the overall weight of the contact, which can be beneficial in applications where weight is a concern, such as in aerospace or automotive industries.

- Improved heat dissipation: The alloy's thermal properties often result in better heat dissipation compared to pure copper, enhancing the contact's performance in high-current applications.

- Enhanced mechanical properties: The addition of aluminium improves the contact's resistance to deformation and wear, potentially extending its operational lifespan.

These advantages have contributed to the widespread adoption of copper-aluminium static contacts across various industries, making them a staple in modern electrical engineering.

Corrosion Mechanisms in Copper-Aluminium Contacts

Galvanic Corrosion

Galvanic corrosion is a significant concern when dealing with copper-aluminium static contacts. This type of corrosion occurs due to the electrochemical potential difference between copper and aluminium. In the presence of an electrolyte, such as moisture or certain atmospheric contaminants, a galvanic cell can form between the two metals.

In this scenario:

- Aluminium, being more anodic, tends to corrode preferentially

- Copper acts as the cathode, remaining relatively unaffected

- The rate of corrosion can be accelerated in the presence of certain environmental factors

To mitigate galvanic corrosion, designers often employ strategies such as using protective coatings, ensuring proper sealing against moisture, or introducing a third metal with an intermediate electrochemical potential to act as a buffer between copper and aluminium.

Environmental Factors Affecting Corrosion

Several environmental factors can exacerbate the corrosion of copper-aluminium static contacts:

- Humidity: High moisture levels in the air can accelerate corrosion by providing the necessary electrolyte for electrochemical reactions.

- Temperature fluctuations: Rapid changes in temperature can lead to condensation, introducing moisture to the contact surface.

- Atmospheric pollutants: Industrial environments with high levels of sulfur dioxide or other corrosive gases can significantly increase corrosion rates.

- Saltwater exposure: Coastal areas or marine applications expose contacts to salt spray, which is highly corrosive to many metals, including copper-aluminium alloys.

- UV radiation: In outdoor applications, prolonged exposure to sunlight can degrade protective coatings, leaving the contacts more vulnerable to corrosion.

Understanding these environmental factors is crucial for designing effective protection strategies and determining the suitability of copper-aluminium static contacts for specific applications.

Impact of Corrosion on Contact Performance

Corrosion can have several detrimental effects on the performance of copper-aluminium static contacts:

- Increased contact resistance: As corrosion progresses, it forms a layer of oxides or other compounds on the contact surface, increasing electrical resistance and reducing efficiency.

- Mechanical degradation: Corrosion can weaken the structural integrity of the contact, potentially leading to mechanical failure under stress.

- Reduced heat dissipation: Corrosion products often have lower thermal conductivity, impeding the contact's ability to dissipate heat effectively.

- Intermittent connections: In severe cases, corrosion can cause intermittent or complete loss of electrical connection, leading to system failures.

These impacts underscore the importance of proper corrosion prevention and maintenance strategies in ensuring the longevity and reliability of copper-aluminium static contacts in electrical systems.

Corrosion Prevention and Mitigation Strategies

Protective Coatings and Surface Treatments

One of the most effective ways to prevent corrosion in copper-aluminium static contacts is through the application of protective coatings and surface treatments. These methods create a barrier between the metal surface and the corrosive environment, significantly reducing the risk of degradation.

Common protective measures include:

- Anodizing: An electrochemical process that creates a durable, corrosion-resistant oxide layer on the aluminium surface.

- Nickel plating: A thin layer of nickel applied to the contact surface, providing excellent corrosion resistance and maintaining good conductivity.

- Tin plating: Particularly effective in preventing galvanic corrosion between copper and aluminium.

- Polymer coatings: Specialized polymer coatings can offer both corrosion protection and enhanced lubricity for moving contacts.

The choice of coating or surface treatment depends on the specific application, environmental conditions, and performance requirements of the copper-aluminium static contact.

Design Considerations for Corrosion Resistance

Effective corrosion prevention begins at the design stage. Engineers can incorporate several design features to enhance the corrosion resistance of copper-aluminium static contacts:

- Proper material selection: Choosing the right copper-aluminium alloy composition for the specific application and environment.

- Sealed enclosures: Designing enclosures that minimize exposure to moisture and corrosive atmospheres.

- Drainage and ventilation: Incorporating features that prevent water accumulation and allow for proper air circulation.

- Galvanic isolation: Using insulating materials to separate dissimilar metals and prevent galvanic corrosion.

- Stress reduction: Minimizing mechanical stress points that could lead to stress corrosion cracking.

These design considerations, when implemented thoughtfully, can significantly extend the lifespan and reliability of copper-aluminium static contacts in various electrical systems.

Maintenance and Inspection Protocols

Regular maintenance and inspection are crucial for detecting and addressing corrosion issues in copper-aluminium static contacts before they lead to system failures. A comprehensive maintenance protocol should include:

- Periodic visual inspections: Regular checks for signs of corrosion, discoloration, or degradation of protective coatings.

- Electrical testing: Measuring contact resistance and other electrical parameters to detect early signs of performance degradation.

- Cleaning procedures: Proper cleaning techniques to remove contaminants without damaging the contact surface or protective coatings.

- Environmental monitoring: Tracking humidity levels, temperature fluctuations, and presence of corrosive agents in the operating environment.

- Documentation and trending: Maintaining detailed records of inspections and measurements to identify long-term trends and predict potential issues.

By implementing these maintenance and inspection protocols, operators can ensure the longevity and reliability of copper-aluminium static contacts in their electrical systems, minimizing downtime and maximizing performance.

Conclusion

Copper-aluminium static contacts, while prone to corrosion under certain conditions, remain a valuable component in electrical systems due to their unique combination of properties. Understanding the mechanisms of corrosion, implementing effective prevention strategies, and maintaining rigorous inspection protocols are key to maximizing their performance and longevity. As technology advances, we can expect further improvements in alloy compositions and protective measures, enhancing the corrosion resistance of these crucial components. By carefully considering environmental factors and design elements, engineers can continue to rely on copper-aluminium static contacts for reliable and efficient electrical connections across a wide range of applications.
