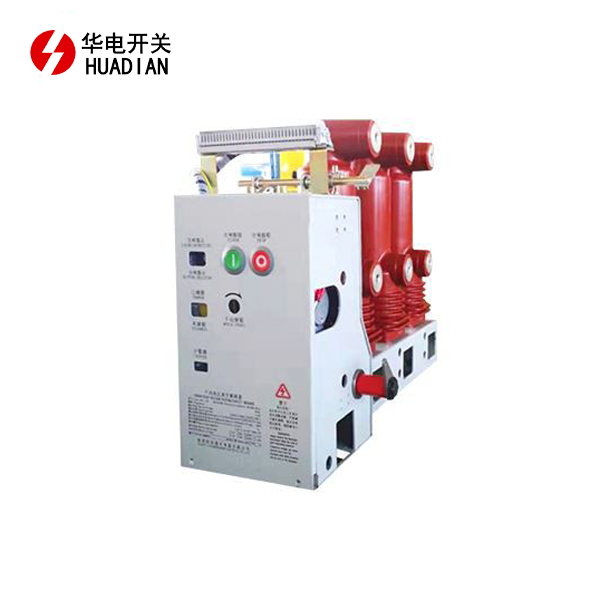

ZN63A(VS1)-24C Side-Mounted Vacuum Circuit Breaker

ZN63A(VS1)-24C Side-Mounted Vacuum Circuit Breaker Introduction

Welcome to Shaanxi Huadian Electric Co., Ltd., a leading manufacturer of vacuum circuit breakers, dedicated to providing reliable and efficient solutions for medium and large businesses. Our ZN63A(VS1)-24C Side-Mounted Vacuum Circuit Breaker is engineered to meet the highest industry standards, offering safety, durability, and top-tier performance.

Product Introduction

The ZN63A(VS1)-24C Side-Mounted Vacuum Circuit Breaker is designed for use in medium-voltage power systems, providing a dependable and high-performing solution for controlling and protecting electrical circuits. Built for applications in power plants, railways, and industrial sectors, this circuit breaker ensures minimal maintenance, long service life, and safe operation.

Product Features and Advantages

• High Durability: The ZN63A(VS1)-24C Side-Mounted Vacuum Circuit Breaker uses high-quality vacuum interrupters that ensure excellent arc-quenching capabilities, reducing wear and extending product life.
• Compact Design: Its side-mounted structure is space-efficient, allowing easy integration into existing electrical systems.
• Safety First: Equipped with reliable protection mechanisms, it reduces the risk of electrical faults, ensuring operational safety.
• Low Maintenance: Engineered for long-term use, the ZN63A(VS1)-24C requires minimal maintenance, reducing downtime and saving on operational costs.
• Environmentally Friendly: With a vacuum-based interruption system, the product is eco-friendly, producing no harmful gases.

Product Structure

The ZN63A(VS1)-24C features a robust construction, comprising the following:

• Vacuum Interrupter: Positioned to ensure rapid arc quenching during circuit interruptions.
• Side-Mount Mechanism: The compact, side-mounted design enhances versatility, making it suitable for tight installations.
• Control Unit: An advanced control system ensures smooth operation and precise interruption timing.
• Insulation System: Built with superior insulating materials to prevent electrical leakages and withstand high voltages.

Main Technical Parameters

Product Use Conditions

The ZN63A(VS1)-24C Side-Mounted Vacuum Circuit Breaker is designed to operate under the following conditions:

• Ambient Temperature: -10°C to +40°C
• Altitude: ≤1000m
• Relative Humidity: 85% or less
• Pollution Level: Suitable for use in areas with pollution degree II

Product Application Scope and Field

This vacuum circuit breaker is widely applicable across various industries:

• Power Generation: Protects medium-voltage systems in power plants.
• Metallurgy and Mining: Ensures safe power distribution in heavy industrial environments.
• Railway Systems: Reliable for use in railway substation networks.
• Petrochemical: Used in harsh environments where robust and reliable electrical protection is required.
• Urban and Rural Grid Transformation: Aids in modernizing power grids with safe, efficient performance.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Services

At Shaanxi Huadian Electric Co., Ltd., we are proud to offer comprehensive OEM services that enable us to customize the ZN63A(VS1)-24C Side-Mounted Vacuum Circuit Breaker to your exact specifications. Our expert team collaborates closely with you throughout the entire process, ensuring that every detail aligns perfectly with your unique operational needs and requirements. Whether you need specific technical adjustments, design modifications, or additional features, we are committed to delivering a product that not only meets but exceeds your expectations. We understand that each application is different, and we strive to provide tailored solutions that enhance your efficiency and reliability. Contact us today to learn more about our custom solutions and how we can support your business objectives with our innovative products.

Frequently Asked Questions (FAQ)

Q1: What is the lifespan of the ZN63A(VS1)-24C circuit breaker?
A: With proper maintenance, the circuit breaker can last up to 20 years, depending on the operational environment and frequency of use.

Q2: How often should maintenance be performed?
A: Routine maintenance is recommended every 5-7 years or after 2,000 operations to ensure optimal performance.

Q3: Can this breaker be used in high-altitude environments?
A: Yes, but modifications are required for altitudes above 1000 meters to ensure reliable performance.

Q4: Is technical support available for installation?
A: Yes, we provide full technical support and guidance for the installation and operation of our circuit breakers.

Q5: Are spare parts readily available?
A: We maintain a full inventory of spare parts to ensure fast and efficient replacements when needed.

Contact Us

For inquiries, custom orders, or further information about the ZN63A(VS1)-24C Side-Mounted Vacuum Circuit Breaker, please contact us at [austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com]. We look forward to collaborating with you to meet your electrical protection needs.
