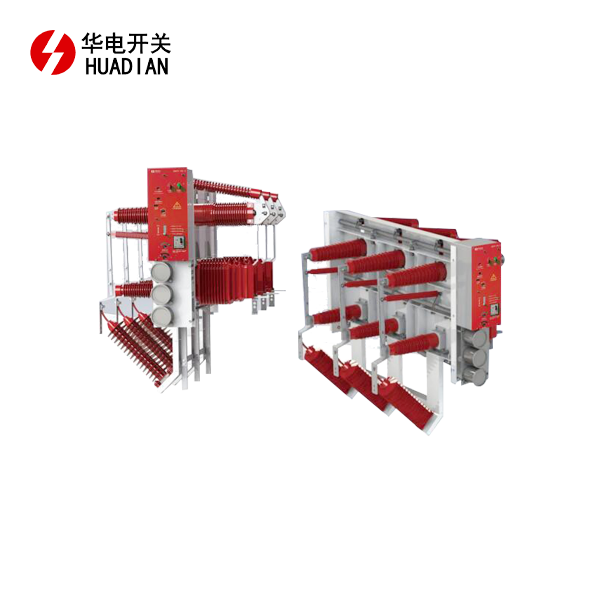

HDGV-40.5 Three Station Wind and Solar Special Combination Electrical Appliance

HDGV-40.5 Three Station Wind and Solar Special Combination Electrical Appliance Introduction

The HDGV-40.5 Three Station Wind and Solar Special Combination Electrical Appliance is an advanced solution designed specifically for integrating wind and solar energy into power systems. This state-of-the-art equipment facilitates the seamless combination of renewable energy sources, ensuring efficient energy distribution and reliable performance. Designed by Shaanxi Huadian Electric Co., Ltd., this product meets stringent industry standards, providing exceptional performance, durability, and versatility for a wide range of applications.

Product Features and Advantages

• Efficiency in Renewable Integration: The HDGV-40.5 combines wind and solar energy with advanced electrical infrastructure, enhancing system reliability and reducing energy losses.
• Durable Construction: Built with high-grade materials, this appliance is designed to withstand the challenges of both indoor and outdoor environments, making it ideal for harsh conditions.
• Cost-Effective Energy Management: By integrating renewable sources efficiently, this product helps businesses reduce energy costs while minimizing their carbon footprint.
• Advanced Control Features: With a fully automated control system, the HDGV-40.5 ensures optimal performance and precise energy distribution without the need for constant manual intervention.
• Compliance with International Standards: This product is certified under ISO9001:2000 and meets international safety and performance standards, making it a reliable choice for large-scale industrial operations.

Product Structure

The HDGV-40.5 Three Station Wind and Solar Special Combination Electrical Appliance is made out of a three-station framework that incorporates wind energy input, sun oriented energy input, and a power dissemination station. The design takes into consideration smooth changes between energy sources and guarantees the conveyance of predictable power. Its particular plan improves on establishment and upkeep, lessening margin time and functional expenses.

Main Technical Parameters

• Rated Voltage: 40.5kV
• Rated Current: 630A/1250A
• Breaking Capacity: 31.5kA
• Insulation Level: 95/185kV (Power Frequency/Lightning Impulse Withstand)
• Control Mechanism: Fully automated with real-time monitoring
• Operating Environment: Suitable for temperatures ranging from -30°C to +40°C

  Name		Unit	Numerical value
  Rated voltage		kV	40.5
  Rated insulation level	Power frequency withstand voltage (1min)	kV	95
  	Lightning impulse withstand voltage	kV	185
  	Power frequency withstand voltage of control circuit (1min)	kV	2
  Rated frequency		Hz	50
  Rated current		A	630 1250
  Rated short-circuit breaking current		kA	25	31.5
  Rated short-circuit making current		kA	63	80
  Rated peak withstand current		kA		80
  Rated short-time withstand current		kA	25/4	31.5/4
  Closing inrush current of rated breaking vessel group		kA	12.5(frequency not greater than 1000Hz)
  Mechanical life		times	20000
  Rated operating sequence			Opening-0.3s-closing and opening-180s-closing and opening
  Contact opening distance		mm	17~19
  Closing time		Ms	30~70
  Opening time		ms	20~50
  Different stages of three-phase opening and closing		ms	≤2
  Overtravel (compression length of contact spring)		mm	4±1
  Contact closing bounce time		ms	≤3
  Average opening speed		m/s	1.2~2.0
  Average closing speed		m/s	0.6~1.3
  Contact rebound amplitude		m/s	≤3
  Allowable wear of contact		mm	3
  Main circuit resistance		μΩ	≤180

Product Use Conditions

This electrical machine is reasonable for use in different environments and ecological circumstances. It tends to be introduced both inside and outside, making it profoundly versatile to assorted application needs. Intended for enormous scope energy projects, it performs effectively under high loads, guaranteeing insignificant energy wastage.

Product Application Scope and Field

The HDGV-40.5 Three Station Wind and Solar Special Combination Electrical Appliance is ideal for applications in:

• Wind and Solar Farms: Seamless integration of wind and solar power for enhanced energy efficiency.
• Utility Companies: Supports the growing demand for renewable energy in modern power grids.
• Industrial Plants: Provides stable and reliable energy for large-scale industrial operations in industries such as metallurgy, petrochemicals, and manufacturing.
• Mining Operations: Ensures a continuous energy supply, even in remote locations, making it an excellent solution for energy-dependent industries like mining.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Services

At Shaanxi Huadian Electric Co., Ltd., we offer comprehensive OEM services for the . Our HDGV-40.5 Three Station Wind and Solar Special Combination Electrical Appliance team works closely with customers to customize products according to specific needs, from design modifications to performance enhancements. We also provide extensive technical support and after-sales service, ensuring that our solutions meet your operational requirements.

FAQ

1.What makes the HDGV-40.5 unique?

The product is designed specifically for renewable energy integration, making it an ideal solution for wind and solar power systems. Its advanced features, such as automated control and high energy efficiency, set it apart from other solutions on the market.

2.What kind of maintenance does the HDGV-40.5 require?

The appliance requires minimal maintenance thanks to its robust construction and automated systems. Routine inspections and occasional servicing will ensure optimal performance over its lifespan.

3.Is the HDGV-40.5 suitable for extreme weather conditions?

Yes, the product is built to withstand harsh environmental conditions, making it suitable for both indoor and outdoor installations, even in extreme temperatures.

4.Can this product be customized for specific applications?

Absolutely. We offer full OEM services to tailor the product to your specific requirements, ensuring it meets your operational needs.

5.What certifications does the HDGV-40.5 hold?

his product is ISO9001:2000 certified and complies with international standards for safety and performance, ensuring reliability and quality.
