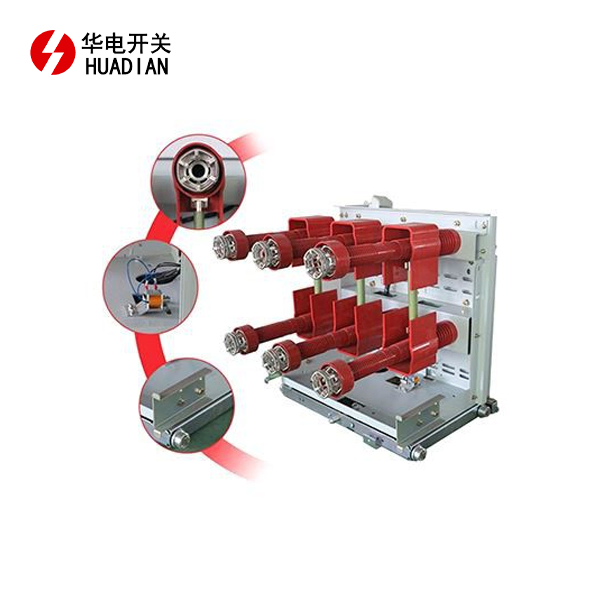

ZN63A(VS1)-12/GL Isolated Handcart

Product Introduction:ZN63A(VS1)-12/GL Isolated Handcart

The advanced and dependable ZN63A(VS1)-12/GL Isolated Handcart is made for medium-voltage electrical distribution systems. This handcart was made with great care and precision, and it works well for switching and isolating power grids, industrial plants, and infrastructure projects. It is particularly suitable for environments that require space efficiency and operational flexibility due to its compact design. Equipped with intelligent control systems, it can precisely monitor and manage the isolation process, reducing human errors and enhancing the overall safety and stability of the power distribution environment during both normal operation and emergency situations

Product Features and Advantages

• High Durability: Engineered using premium materials to ensure long service life and minimal maintenance requirements.
• Compact and Modular Design: The modular structure allows for easy installation, configuration, and integration into existing systems.
• Safe and Reliable Operation: Equipped with advanced protection mechanisms to ensure stable performance under various operating conditions.
• Certified Quality: Complies with ISO9001:2000 standards, ensuring high-quality production and operational efficiency.
• Cost Efficiency: Offers a competitive price while maintaining superior quality, contributing to reduced operational costs for large-scale procurement.

Product Structure

The robust and compact structure of the ZN63A(VS1)-12/GL Isolated Handcart makes it simple to move and place within electrical distribution systems. The vacuum circuit breaker technology integrated into the handcart guarantees energy-efficient switching and isolation. Important structural components include:

• Vacuum Interrupters: Ensures safe interruption of high-voltage currents.
• Mechanical Linkage: Provides smooth operation for engagement and disengagement from the power supply.
• Insulation Components: Ensures high dielectric strength and safety during operations.

Product Outline and Installation Dimensions:

(Unit:mm)

Main Technical Parameters

• Rated Voltage: 12kV
• Rated Current: 630A-3150A
• Breaking Current: 20kA-31.5kA
• Insulation Level: 42kV/75kV
• Operating Frequency: 50Hz
• Weight: 450kg

Product Use Conditions

The ZN63A(VS1)-12/GL Isolated Handcart is designed to operate under standard conditions, including:

• Ambient Temperature: -10°C to +40°C
• Altitude: Up to 1000 meters above sea level
• Relative Humidity: ≤90%
• Indoor Installation: Recommended for use in enclosed environments where dust and moisture are minimal.

Product Application Scope and Field

Power plants, railroads, petrochemical facilities, urban construction, and rural power grid transformation all make extensive use of this product. Because of its dependable performance, it is an excellent option for large-scale electrical distribution systems because it ensures smooth power management across a variety of industries. It also plays a crucial role in emerging industrial parks and high - tech manufacturing zones for stable power supply.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Services

To meet your specific requirements, Shaanxi Huadian Electric Co., Ltd. provides comprehensive OEM services. Our team of experts is here to provide individualized solutions, whether you require unique configurations or special modifications to the standard product. We ensure strict quality control during the entire process, from design to production, with advanced testing equipment and techniques to guarantee that every customized product not only complies with your expectations but also adheres to international quality and safety standards, maximizing the value and performance of the OEM products for your business needs.

FAQ

Q1: How does the ZN63A(VS1)-12/GL Isolated Handcart ensure safety during operations?
A1: The product is equipped with vacuum circuit breaker technology, offering enhanced safety and efficient isolation of electrical circuits.

Q2: Can this handcart be customized for specific applications?
A2: Yes, we offer OEM services to modify the product based on your unique requirements.

Q3: What certifications does this product have?
A3: It is certified under ISO9001:2000 quality management standards.

Q4: How long is the delivery time?
A4: Delivery times vary depending on order volume, but typically range from 4 to 6 weeks.

Q5: What is the warranty period for the ZN63A(VS1)-12/GL Isolated Handcart?
A5: We provide a standard 2-year warranty for this product.
