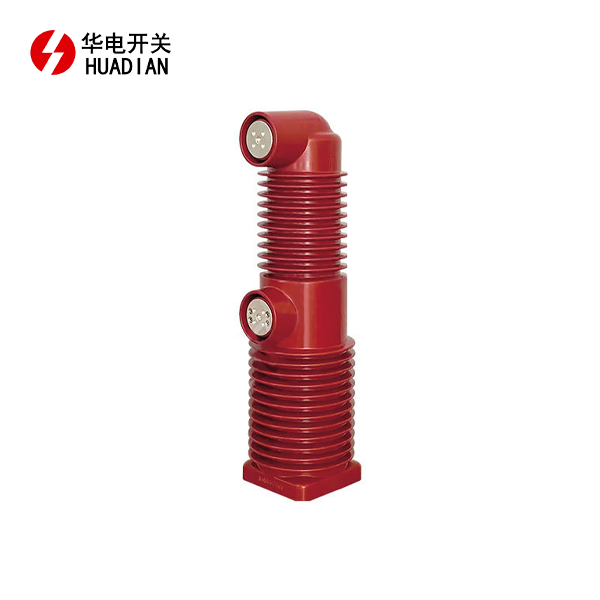

EP40.5/2500-31.5 Embedded Pole

EP40.5/2500-31.5 Embedded Pole


High-Performance Embedded Pole for Medium and High-Voltage Applications

EP40.5/2500-31.5 Embedded Pole Introduction

The EP40.5/2500-31.5 Embedded Pole from Shaanxi Huadian Electric Co., Ltd. is designed for use in a variety of medium and high-voltage applications. Engineered with precision and made from high-quality materials, this embedded pole delivers outstanding performance, reliability, and safety. With its robust construction and compliance with international standards, it is an excellent choice for industries seeking to enhance the efficiency and durability of their electrical systems.

Product Features and Advantages

• High Reliability: The EP40.5/2500-31.5 is built to withstand demanding environments, offering consistent performance in critical situations.

• Durability: Manufactured with premium insulating materials that ensure a long operational life and resistance to environmental factors.

• Compact Design: Optimized for space efficiency, the embedded pole is easy to install and maintain within switchgear systems.
• Certification: Fully compliant with ISO9001:2000, ensuring the highest quality standards are met.
• Safety Assurance: Designed to reduce the risk of electrical faults and ensure reliable operation under high-voltage conditions.

Product Structure

The EP40.5/2500-31.5 Embedded Pole features a high-strength epoxy resin encapsulation that enhances its insulating properties. It includes integrated conductors and contact systems that ensure stable and efficient current flow. Its embedded design reduces the number of external connections, enhancing its performance and reliability in various applications.

Main Technical Parameters of the Product

• Rated Voltage: 40.5 kV

• Rated Current: 2500 A

• Rated Short-Circuit Breaking Current: 31.5 kA
• Mechanical Life: 10,000 operations
• Insulation Level: Rated to withstand voltage and impulse levels as per international standards.
• Weight: Optimized for easy installation without compromising structural integrity.

Product Use Conditions

The EP40.5/2500-31.5 is designed for both indoor and outdoor switchgear environments. It operates effectively within a temperature range of -40°C to +40°C and can function at altitudes up to 1,000 meters. This pole is suited for areas where humidity, dust, and corrosion may be present, thanks to its robust encapsulation and construction.

Product Application

This embedded pole is widely used in industries such as:

• Power Plants
• Metallurgy
• Petrochemicals
• Railways
• Mining
• Urban Construction
• Rural Power Network Transformation

These sectors benefit from the EP40.5/2500-31.5’s reliability and high performance in managing medium to high-voltage systems, ensuring continuous operation with minimal downtime.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

At Shaanxi Huadian, we offer customizable OEM services tailored to meet the specific needs of your business. Whether you require modified design, special material requirements, or tailored testing, our team of engineers is ready to deliver bespoke solutions.

FAQ

Q: How long is the lead time for orders?
A: Typically, orders can be fulfilled within 4-6 weeks, depending on the quantity and customization requirements.

Q: Is technical support available after purchase?
A: Yes, we provide full technical support, including installation guidance and operational troubleshooting.

Q: What certifications does this product meet?
A: The EP40.5/2500-31.5 meets ISO9001:2000 certification and all relevant international standards for electrical components.

Contact Us

For more information or to request a quote, please contact us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com. Our team is ready to assist with your project requirements and ensure you get the best solution for your needs.
