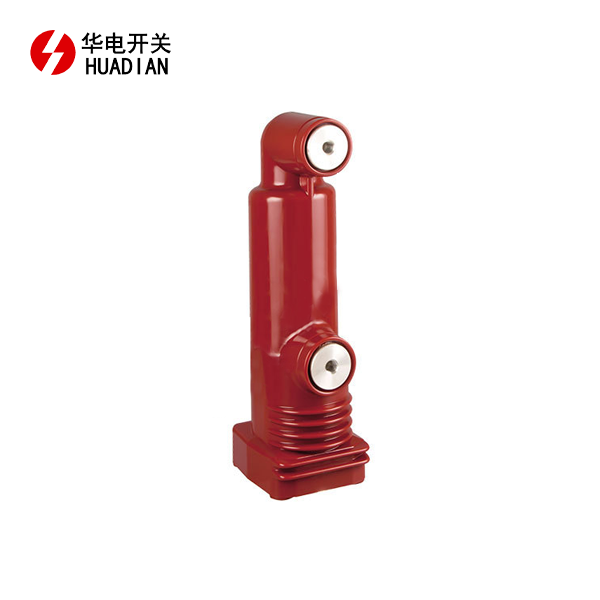

EP12/1600-31.5 Embedded Pole

EP12/1600-31.5 Embedded Pole Introduction

The EP12/1600-31.5 Embedded Pole is a high-performance vacuum circuit breaker component developed by Shaanxi Huadian Electric Co., Ltd. This embedded pole is designed to ensure efficient operation, long-term reliability, and superior protection for medium and high-voltage electrical equipment. Ideal for use in a wide range of industries, including power plants, petrochemical facilities, railways, and urban infrastructure, the EP12/1600-31.5 is engineered to meet international standards of safety and durability.

Shaanxi Huadian Electric, a high-tech enterprise located in the Baoji High-tech Development Zone, leverages cutting-edge technology and an ISO9001:2000-certified production process to deliver top-tier embedded poles that ensure the highest level of electrical protection.

2. EP12/1600-31.5 Embedded Pole Features and Advantages

• High Reliability: The EP12/1600-31.5 is constructed using advanced vacuum arc control technology, ensuring safe and consistent interruption of fault currents.

• Long Service Life: Designed for durability, the embedded pole minimizes wear and tear on internal components, extending the product’s operational life.

• Compact Design: The embedded pole's compact and integrated structure reduces installation space requirements, making it a preferred choice for modern electrical installations.
• Heat Resistance: The product’s specialized materials withstand high operating temperatures, maintaining performance even in harsh environments.
• Cost Efficiency: With reduced maintenance requirements and high durability, this embedded pole lowers the total cost of ownership.

3. Product Structure

The EP12/1600-31.5 Embedded Pole consists of an insulating housing made of epoxy resin, within which the vacuum interrupter is fully encapsulated. This structure offers superior dielectric strength and excellent environmental protection. It ensures the reliable performance of the circuit breaker even in humid, dusty, or chemically aggressive environments.

4. Main Technical Parameters of the Product

• Rated Voltage: 12 kV

• Rated Current: 1600 A

• Rated Short-Circuit Breaking Current: 31.5 kA
• Rated Frequency: 50/60 Hz
• Mechanical Life: 20,000 operations
• Operating Temperature Range: -40°C to +55°C

These technical parameters highlight the robustness of the EP12/1600-31.5, making it suitable for critical applications in demanding industrial environments.

5. Product Use Conditions

The EP12/1600-31.5 is designed to function optimally in both indoor and outdoor switchgear. It can be used in environments with temperature extremes, high humidity, or pollution. However, for best performance, the product should be installed in accordance with recommended guidelines to ensure proper insulation and protection from external factors.

6. Product Application Scope and Field

This embedded pole is ideal for use in:

• Power Plants: Ensures stable electrical protection in power generation systems.
• Petrochemical Industry: Provides safe electrical operation in potentially hazardous environments.
• Railways: Supports reliable energy distribution in transportation infrastructure.
• Mining: Protects critical mining operations by ensuring electrical safety.
• Urban Construction: Aids in modernizing urban power distribution networks.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

7. OEM Service

At Shaanxi Huadian Electric Co., Ltd., we offer OEM services to tailor the EP12/1600-31.5 to specific customer requirements. Whether you need customized branding, specific configurations, or tailored solutions, our experienced R&D team and manufacturing capabilities are ready to meet your demands. Our products are tested rigorously to ensure compliance with your specifications, ensuring smooth integration into your systems.

8. FAQ

Q: What certifications does the EP12/1600-31.5 have?
A: The product is manufactured in accordance with ISO9001:2000 quality standards, ensuring international certification compliance.

Q: Can this product withstand extreme temperatures?
A: Yes, the EP12/1600-31.5 operates effectively in temperatures ranging from -40°C to +55°C, making it suitable for use in diverse climates.

Q: What industries can benefit from using this embedded pole?
A: The EP12/1600-31.5 is widely used in power generation, petrochemical, railway, mining, and urban infrastructure sectors.

9. Contact Us

For more information about the EP12/1600-31.5 Embedded Pole or to inquire about pricing and availability, please contact us:

• Email: austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com
• Phone: [+86-0917-6735 959 ]
• Address: Shaanxi Huadian Electric Co., Ltd., Baoji High-tech Development Zone, Shaanxi Province.

We look forward to discussing how we can meet your electrical protection needs with our reliable and high-performance products.
