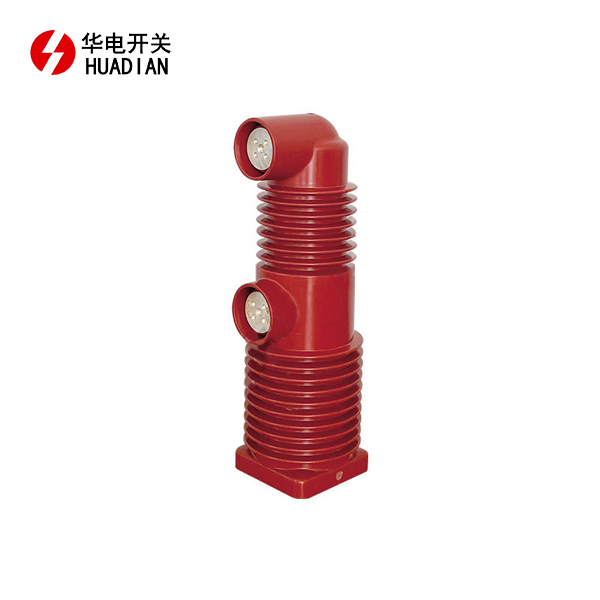

EP40.5/1600-31.5 Embedded Pole

EP40.5/1600-31.5 Embedded Pole Introduction

The EP40.5/1600-31.5 Embedded Pole is a cutting-edge vacuum circuit breaker solution designed for medium and large-scale enterprises. Developed by Shaanxi Huadian Electric Co., Ltd., this embedded pole excels in power distribution and protection systems for industries like power plants, metallurgy, petrochemicals, and urban construction. Backed by years of R&D, stringent quality control, and international certification standards, the EP40.5/1600-31.5 ensures performance reliability and safety in critical applications.

Product Features and Advantages

• High Withstand Voltage: With a rated voltage of 40.5 kV and a current capacity of 1600 A, this pole is optimized for high-voltage systems, ensuring operational efficiency.

• Enhanced Durability: The embedded pole structure, with its epoxy resin insulation, offers superior protection against environmental stressors, making it perfect for harsh industrial environments.

• Maintenance-Free Operation: Designed for long service life with minimal maintenance, reducing operational costs and downtime.
• Compliance with Global Standards: ISO9001:2000 certified, ensuring quality and safety that meet global industry requirements.

Product Structure

The EP40.5/1600-31.5 Embedded Pole is built using advanced epoxy resin technology to encapsulate vacuum interrupters. This modular structure offers easy integration into switchgear systems and facilitates better insulation and arc-quenching capabilities. The compact design also improves space efficiency within electrical installations.

Main Technical Parameters

• Rated Voltage: 40.5 kV
• Rated Current: 1600 A
• Short-Circuit Breaking Current: 31.5 kA
• Insulation Material: Epoxy resin
• Mechanical Life: 20,000 operations
• Weight: Approximately 40 kg

Product Use Conditions

The EP40.5/1600-31.5 Embedded Pole is suitable for indoor environments with an altitude not exceeding 1,000 meters. It operates effectively in temperatures ranging from -40°C to 40°C and is resistant to humidity and pollution, ensuring consistent performance across diverse environments.

Product Application Scope and Field

This embedded pole is ideal for industries requiring high reliability and safety in power distribution, such as:

• Power Plants: Ensures stable power distribution and protection of critical infrastructure.
• Metallurgy and Mining: Provides dependable performance under heavy industrial loads.
• Petrochemical Industry: Resistant to corrosive and high-stress conditions.
• Urban Construction: Suitable for large-scale infrastructure projects.
• Railways and Urban Transit Systems: Reliable for high-voltage switching needs.

Power plants and substations

Industrial power distribution systems

Railways and urban infrastructure

Mining and petrochemical industries

OEM Service

Shaanxi Huadian Electric offers comprehensive OEM services, providing customizable solutions based on specific client requirements. With an experienced R&D team and modern production facilities, we ensure that your custom design needs are met with high precision and efficiency.

FAQ

1. What makes the EP40.5/1600-31.5 Embedded Pole stand out from competitors?
Our pole’s epoxy resin insulation offers superior durability and electrical protection. Combined with ISO certification, it guarantees safety, reliability, and compliance with international standards.

2. Is the product customizable for unique requirements?
Yes, we offer OEM services to tailor the product to your specific needs, ensuring it fits seamlessly into your systems.

3. What are the delivery timelines?
With our large-scale production facilities and streamlined supply chain, we ensure timely deliveries based on customer requirements and schedules.
