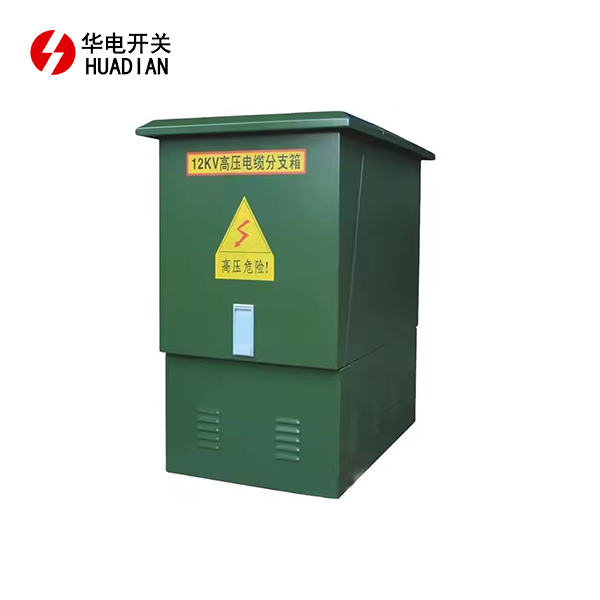

DFW10-12 cable branch box
**Rated Current:** This branch box supports a rated current of up to 630A, accommodating a wide range of electrical systems under normal working conditions.
**Tripping Capacity:** With a robust tripping capacity of 25 kA, the DFW10-12 effectively cuts off maximum fault currents, providing essential protection for your electrical networks.
**Tripping Time:** The device features a rapid tripping time of less than 0.1 seconds, ensuring immediate response to electrical faults and enhancing system safety.
**Operation Mode:** The DFW10-12 can be operated manually or automatically, allowing for flexible operation modes to suit different installation requirements.
**Distance:** After disconnection, the branch box maintains a minimum contact distance of 10 mm, ensuring safe separation and preventing accidental re-closure.
**Delivery:** We offer flexible shipping options, including express and standard delivery, to meet your project's timelines and requirements.
**Packaging:** The product is securely packaged in durable cardboard boxes, ensuring protection during transit and easy handling upon delivery.
DFW10-12 cable branch box Introduction
Welcome to the product details page for the DFW10-12 cable branch box! At Shaanxi Huadian Electric Co., Ltd., we pride ourselves on delivering high-quality electrical solutions tailored to meet the needs of modern industries. Our DFW10-12 cable branch box is designed for efficiency and reliability in power distribution. Let’s dive into the key features, specifications, and applications of this exceptional product.
Product Features and Advantages
The DFW10-12 cable branch box boasts a range of features that make it an essential component for any electrical system:
- Robust Design: Built with high-quality materials, ensuring durability and resistance to harsh environmental conditions.
- Efficient Power Distribution: Designed to handle high voltage and current loads effectively, ensuring optimal performance in power distribution.
- User-Friendly: Simple installation process and accessible design make it easy to use for both professionals and DIY enthusiasts.
- Safety First: Equipped with advanced safety mechanisms to prevent electrical faults and enhance user protection.
- ISO Certified: Adheres to international standards, including ISO9001:2000 certification, ensuring quality and reliability.

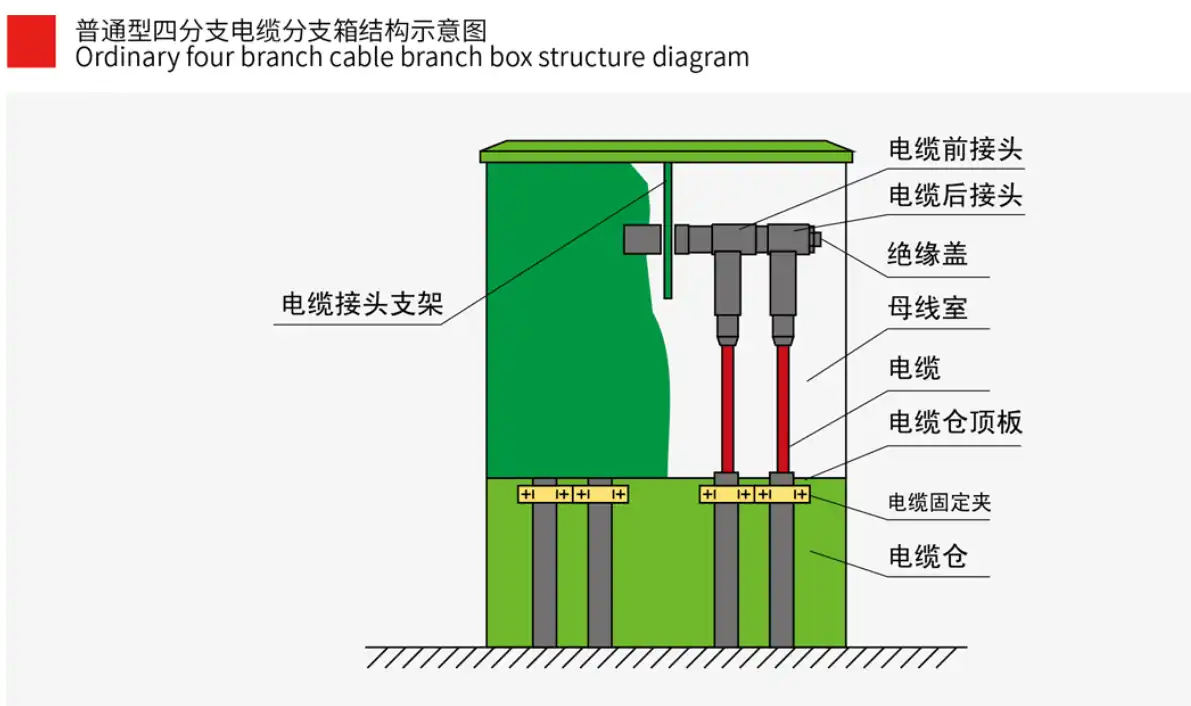

Product Structure
The DFW10-12 cable branch box features a well-thought-out structure that enhances its functionality:
- Outer Casing: Made from high-strength materials, providing protection against physical impacts and environmental factors.
- Internal Wiring: High-quality, insulated wiring for safe and efficient electrical connections.
- Busbar Assembly: Facilitates multiple branch circuits, allowing for efficient power distribution.
- Access Points: Strategically placed entry points for easy connection to the main power supply.
Main Technical Parameters of the Product
Here are the key technical specifications of the DFW10-12 cable branch box:
- Rated Voltage: 12 kV
- Rated Current: Up to 630 A
- Insulation Level: Class B (basic insulation)
- Protection Level: IP65
- Material: Polycarbonate/Metal (varies by model)
- Weight: Approximately 25 kg
|
Item |
Data | Unit |
| Rated volage | 10 | kV |
| Maximum operating voltage | 12 | kV |
| Rated current | 630 | A |
| Power frequency withstand voltage | 45 | kv/1min |
| Partial Discharge | ＜3 | PC |
| Impulse voltage | 105 | kV |
| DC withstand voltage | 52 | kv/15min |

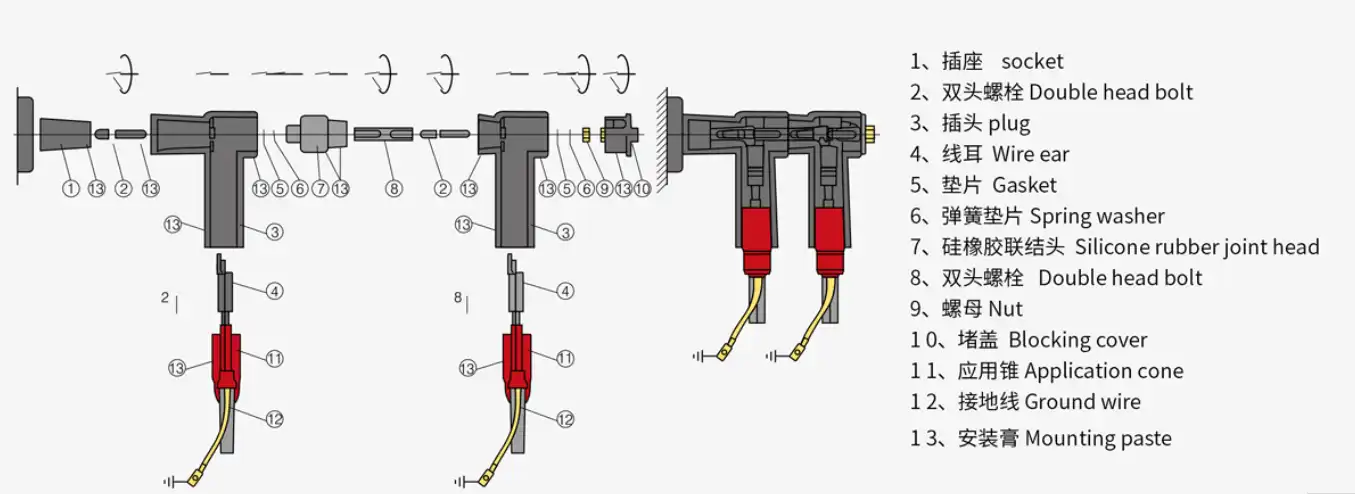

Typical solution wiring：
（Unit:mm）
These specifications ensure that the DFW10-12 cable branch box is suitable for various industrial applications, maintaining safety and reliability.
Product Use Conditions
To maximize the performance of the DFW10-12 cable branch box, consider the following usage conditions:
- Operating Temperature: -25°C to +40°C
- Humidity Levels: Up to 95% (non-condensing)
- Installation Environment: Indoor and outdoor use, with protection from direct sunlight and moisture.
Product Application Scope and Field
The DFW10-12 cable branch box is versatile and can be used across various industries, including:
- Power Plants: Effective power distribution in generation facilities.
- Metallurgy: Reliable solutions for heavy industrial applications.
- Petrochemical: Safe electrical connections in hazardous environments.
- Urban Construction: Essential for electrical installations in building projects.
- Railways and Mining: Robust and reliable power distribution for transportation and extraction activities.
OEM Service
At Shaanxi Huadian, we understand that each project is unique. Our OEM service allows you to customize the DFW10-12 cable branch box to meet specific requirements. From design adjustments to branding, we are here to help you create the perfect solution for your needs.
FAQ
1. What is the lead time for orders?
Our typical lead time is 4-6 weeks, depending on order size and customization requirements.
2. Do you provide technical support?
Yes, our team is ready to assist with any technical queries you may have regarding product application and installation.
3. Is the DFW10-12 cable branch box compliant with international standards?
Absolutely! It meets the ISO9001:2000 quality system certification and other relevant industry standards.
4. Can I get a sample before placing a bulk order?
Yes, we offer samples for testing to ensure our products meet your expectations.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For inquiries about the DFW10-12 cable branch box or to discuss your specific requirements, feel free to reach out to us:
Email: austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com
Phone: +86-0917-6735 959
Website: www.hdswitchgear.com
