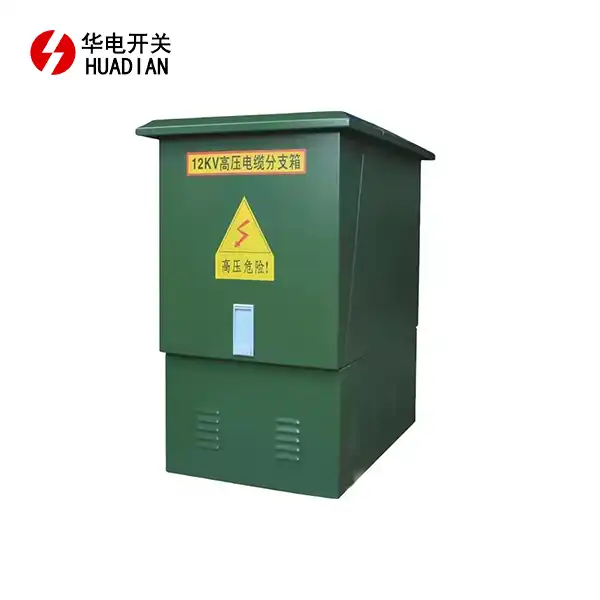

Cable distribution box for DFW10-12SF6 load switch
**Rated Current:** With a rated current capacity of up to 630 A, this load switch is designed to handle continuous currents effectively under normal conditions.
**Tripping Capacity:** The switch boasts a tripping capacity of 25 kA, allowing it to disconnect from maximum fault currents swiftly and safely.
**Tripping Time:** The DFW10-12SF6 offers an efficient tripping time of less than 0.1 seconds, ensuring rapid response during fault conditions.
**Operation Mode:** This load switch features a versatile operation mode, available in manual and electric options to accommodate various installation requirements.
**Distance:** The minimum distance between contacts after disconnection is maintained at 300 mm, ensuring safe operation and compliance with industry standards.
**Delivery:** We offer multiple shipping options, including express delivery and standard freight, to meet your logistics needs.
**Packaging:** Each unit is securely packaged in a robust outer box designed to protect against damage during transportation, ensuring that it arrives in optimal condition.
Cable Distribution Box for DFW10-12SF6 Load Switch
Welcome to the ultimate guide on the Cable Distribution Box for DFW10-12SF6 Load Switch. As a leading high-tech enterprise based in Baoji City, Shaanxi Province, Shaanxi Huadian Electric Co., Ltd. is committed to delivering top-quality products that meet international standards. Our innovative cable distribution boxes are specifically designed to enhance your electrical infrastructure while ensuring safety and reliability.
Cable distribution box for DFW10-12SF6 load switch Introduction
The Cable Distribution Box for DFW10-12SF6 Load Switch is a vital component for efficient power distribution systems. Engineered for durability and performance, this product is ideal for medium to large-scale applications in various industries, including power plants, petrochemicals, and urban construction. With an annual production capacity of 10,000 units and cutting-edge manufacturing processes, we assure you of the highest quality and reliability.
Product Features and Advantages
- Robust Construction: Built to withstand harsh environmental conditions, our distribution box features a durable design that ensures long-term performance.
- High Safety Standards: Compliant with ISO9001:2000 certification, our products are rigorously tested to meet safety and quality standards.
- Efficient Power Management: Designed to optimize the distribution of electrical power, the DFW10-12SF6 Load Switch minimizes energy loss and enhances system efficiency.
- User-Friendly Interface: Our distribution box is designed for easy operation, making it accessible for technicians and engineers alike.

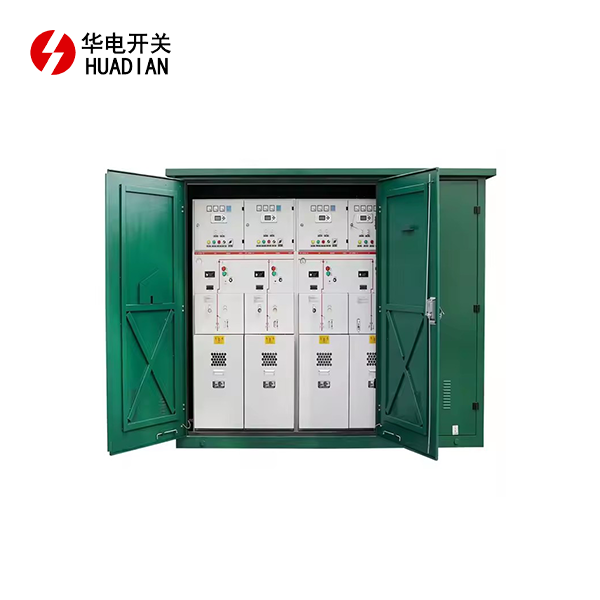

Product Structure
The Cable Distribution Box consists of several key components:
- Enclosure: Made from high-quality materials to protect internal components.
- Load Switch: A crucial element that ensures safe switching and control of electrical loads.
- Busbars: Designed to facilitate efficient power distribution with minimal resistance.
- Protection Devices: Integrated to safeguard against electrical faults and overloads.
Main Technical Parameters of the Product
|
Rated voltage |
12kV |
|
Rated current |
630A |
|
Rated thermal stability current (2S) |
20kA |
|
Rated short-circuit closing current (peak) |
50kA |
|
Rated transfer current |
2000A |
|
Lightning impulse voltage |
85kV |
|
Power frequency withstand voltage |
48kV |
|
Mechanical life |
2000次times |
|
SF6 gas rated pressure |
0.03MPa |
|
SF6 gas annual leakage rate |
≤0.5% |
Product Use Conditions
Our Cable Distribution Box is designed for use in various environments, including:
- Ambient Temperature: -40°C to +40°C
- Altitude: Up to 1000 meters above sea level
- Humidity: Up to 95% (non-condensing)
Product Application Scope and Field
The Cable Distribution Box for DFW10-12SF6 Load Switch is widely used across multiple sectors:
- Power Generation: Ideal for use in power plants to manage electrical load.
- Petrochemical Industry: Essential for ensuring safe and efficient power distribution.
- Urban Infrastructure: Utilized in urban construction projects for reliable electrical management.
- Mining and Railways: Adapted for the rigorous demands of the mining and railway sectors.
OEM Service
At Shaanxi Huadian Electric Co., Ltd., we offer tailored OEM services to meet the unique requirements of our clients. Our expert team collaborates closely with customers to design and manufacture customized solutions that align with specific operational needs.
FAQ
Q1: What is the lead time for orders?
A1: The lead time typically ranges from 4 to 6 weeks, depending on the order size and customization requirements.
Q2: Can I request a sample before placing a bulk order?
A2: Yes, we encourage potential customers to request samples for evaluation.
Q3: What certifications do your products hold?
A3: Our products are certified to ISO9001:2000 standards, ensuring quality and reliability.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information about the Cable Distribution Box for DFW10-12SF6 Load Switch, or to discuss your specific requirements, please feel free to contact us at [austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com]. Our team is ready to assist you with your inquiries and provide technical support to ensure you make the best choice for your power distribution needs.
YOU MAY LIKE

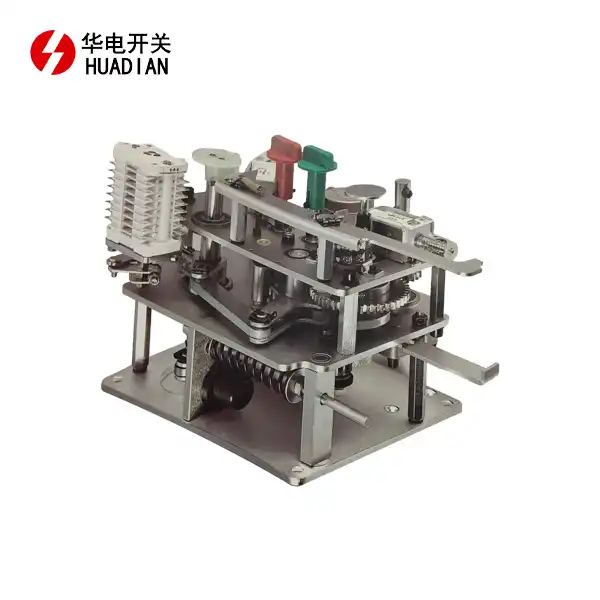

-12GD Three-Station Vacuum Circuit Breaker_1731308073157.webp "Operating mechanism for ZN63A(VS1)-12GD Three-Station Vacuum Circuit Breaker")
