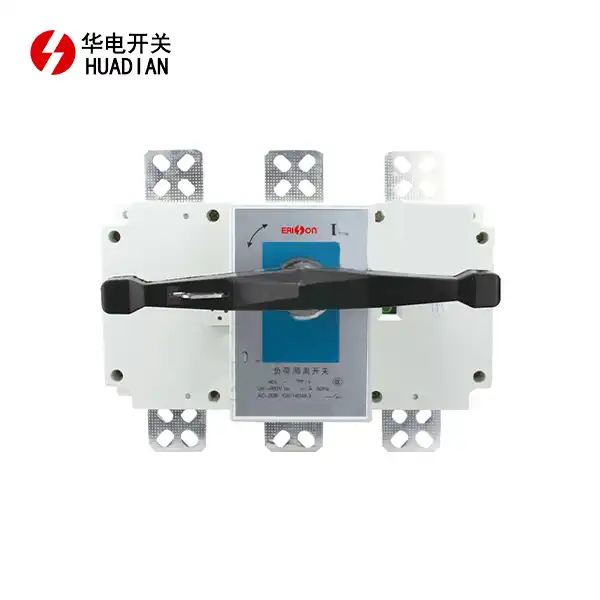

HGL Isolating switch
2. **Rated Current**: With a rated current capacity of 1250 A, this isolating switch can handle continuous currents under normal working conditions, providing robust support for your electrical systems.
3. **Tripping Capacity**: The switch boasts a tripping capacity capable of cutting off fault currents of up to 31.5 kA, ensuring safety and protection for your circuits during fault conditions.
4. **Tripping Time**: The HGL Isolating Switch features a rapid tripping time of less than 0.1 seconds, allowing for quick disconnection and minimizing potential damage during faults.
5. **Operation Mode**: This switch operates in various modes, including manual and electric, providing flexibility to meet your specific operational requirements.
6. **Distance**: After disconnection, the HGL Isolating Switch maintains a minimum contact distance of 300 mm, ensuring safety and preventing accidental reconnection.
7. **Delivery**: The HGL Isolating Switch is available for prompt delivery through various shipping options, including air freight and sea freight, to accommodate your needs.
8. **Packaging**: Each unit is carefully packaged in sturdy outer boxes, ensuring protection during transit and storage, so you receive it in perfect condition.
HGL Isolating Switch – Reliable, High-Performance Power Solutions
The HGL Isolating Switch is designed to provide reliable isolation for electrical circuits, ensuring safe maintenance and operation. Produced by Shaanxi Huadian Electric Co., Ltd., a leading manufacturer specializing in vacuum circuit breakers, this isolating switch meets the stringent requirements of medium and large-scale power applications. Its robust construction, high-quality materials, and adherence to international safety standards make it a vital component in modern electrical systems.HGL series disconnector from 63-3200A in 13 specifications is a modular design basic type, with three, four (three can be switched on and off neutral), suitable for circuit and switching and electrical isolation, more than 1000A only for electrical isolation.
Product Features and Advantages
-
High Durability: Made from premium materials, the HGL isolating switch ensures long-term operational stability, even in harsh conditions.
-
Safety Compliance: Certified with ISO9001:2000, the switch meets global safety standards, offering protection against overloads and short circuits.
- Compact Design: Its compact and space-saving design allows easy integration into various electrical systems, optimizing the use of available space.
- Enhanced Performance: The switch provides efficient power isolation and helps prevent electrical accidents during maintenance, boosting overall system reliability.
Product Structure
The HGL Isolating Switch is composed of:
- Main Body: Sturdy, corrosion-resistant materials to ensure longevity.
- Switch Mechanism: Designed for smooth operation, allowing for easy switching under load conditions.
- Terminal Connections: Precision-engineered terminals to ensure secure connections and reduce energy loss.
Main Technical Parameters
-
Rated Voltage: 12kV – 40.5kV
-
Rated Current: Up to 3150A
- Insulation Level: 70kV/min
- Mechanical Life: 10,000 operations
- Operating Temperature: -30°C to +70°C
Product Use Conditions
The HGL Isolating Switch is ideal for use in:
- Indoor and Outdoor Installations: Suitable for use in substations, power plants, and industrial facilities.
- Environmental Conditions: Withstand extreme temperatures, humidity, and dust environments without affecting performance.
- Maintenance Intervals: The switch requires minimal maintenance, ensuring reduced operational costs.
Product Application
This isolating switch is widely used across various sectors, including:
- Power Generation: Efficiently isolates electrical circuits in power plants.
- Metallurgy and Petrochemical: Ensures safe operation in high-demand industrial environments.
- Railways and Urban Infrastructure: A reliable solution for railways and city power grids to maintain uninterrupted services.
- Mining and Rural Networks: Critical for maintaining the integrity of rural electrification projects and mining operations.
OEM Service
At Shaanxi Huadian Electric Co., Ltd., we offer customizable solutions to meet your specific needs. Our OEM service allows you to tailor the HGL Isolating Switch specifications to suit unique project requirements. Our team of engineers ensures a seamless integration of products into your systems while maintaining quality and safety standards.
FAQ
Q1: Can the HGL Isolating Switch be customized?
Yes, we provide OEM services to customize product specifications according to your operational needs.
Q2: How long is the delivery time for bulk orders?
Typically, bulk orders are delivered within 4-6 weeks, depending on order size and customization requirements.
Q3: What kind of maintenance does the switch require?
The HGL Isolating Switch requires minimal maintenance, primarily periodic visual inspections and operational testing to ensure continued performance.
 |
 |
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Contact Us
For more information or to place an order, contact us at [austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com]. Our dedicated team is ready to provide technical support and discuss your project’s specific needs.
