Why High-Temperature Cables Are Essential for Industrial Environments?

High-temperature cables are indispensable components in industrial environments due to their ability to withstand extreme heat conditions while maintaining optimal performance. These specialized cables are engineered to operate efficiently in temperatures ranging from 150°C to 1000°C, making them crucial for industries such as manufacturing, oil and gas, and power generation. By utilizing advanced materials and construction techniques, high-temperature cables ensure reliable power transmission and signal integrity in harsh environments where standard cables would fail. Their importance lies in enhancing safety, reducing downtime, and improving overall operational efficiency in industrial settings.

Understanding High-Temperature Cables

Composition and Materials

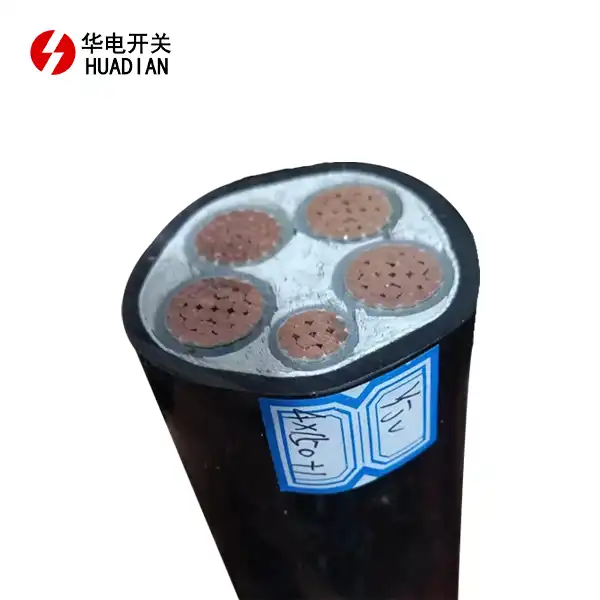

High-temperature cables are meticulously designed using advanced materials to withstand extreme heat conditions. The core of these cables typically consists of copper or nickel-clad copper conductors, chosen for their excellent electrical conductivity and heat resistance. Surrounding the conductors, manufacturers employ high-performance insulation materials such as silicone rubber, fluoropolymers, or mica tape. These materials exhibit exceptional thermal stability and maintain their dielectric properties even at elevated temperatures. The outer jacket of high-temperature cables is often composed of materials like fluorinated ethylene propylene (FEP) or perfluoroalkoxy (PFA), which provide additional protection against heat, chemicals, and abrasion.

Temperature Ratings and Classifications

High-temperature cables are categorized based on their maximum operating temperature ratings, which are determined through rigorous testing and compliance with industry standards. Common temperature classifications include:

- Class B: Rated for temperatures up to 130°C

- Class F: Rated for temperatures up to 155°C

- Class H: Rated for temperatures up to 180°C

- Class C: Rated for temperatures above 180°C, often up to 250°C or higher

These classifications help engineers and procurement specialists select the appropriate cable for specific applications. It's crucial to note that temperature ratings consider not only the ambient temperature but also the heat generated by current flow through the conductors. Some specialized high-temperature cables can withstand even more extreme conditions, with ratings exceeding 1000°C for applications in furnaces or high-temperature sensors.

Unique Properties and Characteristics

High-temperature cables possess several unique properties that set them apart from standard cables:

- Thermal Stability: They maintain their electrical and mechanical properties over extended periods of exposure to high temperatures.

- Low Smoke and Halogen-Free: Many high-temperature cables are designed to emit minimal smoke and zero halogens when exposed to fire, enhancing safety in critical environments.

- Chemical Resistance: The materials used in these cables often exhibit excellent resistance to oils, solvents, and other aggressive chemicals commonly found in industrial settings.

- Flexibility: Despite their robust construction, many high-temperature cables maintain good flexibility, facilitating installation in tight or complex spaces.

- Radiation Resistance: Some specialized versions are engineered to withstand high levels of radiation, making them suitable for nuclear power plants or medical imaging equipment.

These unique characteristics make high-temperature cables indispensable in applications where reliability and safety are paramount, such as in aerospace, automotive manufacturing, and petrochemical processing plants.

Applications in Industrial Environments

Manufacturing and Process Industries

In manufacturing and process industries, high-temperature cables play a crucial role in ensuring continuous operations and maintaining safety standards. These cables find extensive use in steel mills, where they power and control equipment exposed to intense heat from furnaces and molten metal. In glass manufacturing, high-temperature cables are essential for controlling and monitoring the glass-forming process, where temperatures can exceed 1500°C.

Automotive manufacturing plants rely on high-temperature cables for robotic welding systems and paint curing ovens. These cables must withstand not only high temperatures but also exposure to various chemicals and mechanical stress.

The petrochemical industry presents another demanding environment for high-temperature cables. These cables are used in refineries and chemical plants to power pumps, control valves, and monitor temperatures in reactors and distillation columns.

Power Generation and Distribution

The power generation sector heavily relies on high-temperature cables for various critical applications. In thermal power plants, these cables are used to connect generators, transformers, and switchgear, often operating in environments with elevated temperatures due to the heat generated by equipment and steam systems. Nuclear power plants utilize specialized high-temperature cables that can withstand both high temperatures and radiation exposure, ensuring reliable power transmission and control even under extreme conditions.

Power distribution networks utilize high-temperature cables in substations and underground vaults, where space constraints and heat buildup can create challenging operating conditions. These cables ensure reliable power transmission while minimizing the risk of failures due to overheating, which could lead to widespread power outages.

Aerospace and Transportation

The aerospace industry presents some of the most demanding applications for high-temperature cables. In aircraft engines, these cables are used for engine control systems, fire detection, and power distribution, operating in environments where temperatures can exceed 200°C. High-temperature cables are also crucial in spacecraft, where they must perform reliably in the extreme temperature fluctuations of space.

The rail transportation industry also relies on high-temperature cables for various applications. These include power distribution in locomotives, signaling systems in tunnels, and heating elements in track switch de-icing systems. The ability of these cables to maintain performance under varied and often harsh environmental conditions is crucial for ensuring the safety and reliability of rail transportation systems.

Benefits and Considerations

Enhanced Safety and Reliability

One of the primary benefits of using high-temperature cables in industrial environments is the significant enhancement in safety and reliability. These specialized cables are engineered to maintain their integrity and performance even when exposed to extreme heat, reducing the risk of electrical fires and system failures. In high-risk industrial settings, such as oil refineries or chemical plants, this enhanced safety feature is crucial in preventing catastrophic accidents and protecting both personnel and equipment.

High-temperature cables also contribute to improved system reliability by reducing the likelihood of unexpected downtime due to cable failure. This is particularly important in continuous process industries where unplanned shutdowns can result in substantial financial losses. By withstanding harsh conditions that would cause standard cables to degrade rapidly, high-temperature cables ensure consistent performance and extend the operational lifespan of industrial systems.

Cost-Effectiveness and Longevity

While the initial investment in high-temperature cables may be higher compared to standard cables, they often prove to be more cost-effective in the long run. The extended lifespan of these cables in harsh environments means less frequent replacements, reducing both material costs and labor expenses associated with cable installation and maintenance. This longevity is particularly beneficial in applications where cable replacement is challenging or requires significant downtime, such as in underground mining operations or offshore oil platforms.

High-temperature cables can also contribute to energy efficiency in certain applications. Their ability to operate at higher temperatures without degradation allows for increased current-carrying capacity, potentially reducing the number of cables required for a given application. This can lead to savings in installation costs and improved overall system efficiency.

Environmental and Regulatory Compliance

As environmental regulations become increasingly stringent, high-temperature cables offer advantages in terms of compliance and sustainability. Many of these cables are designed to be halogen-free and have low smoke emissions, aligning with global initiatives to reduce the environmental impact of industrial operations. This characteristic is particularly important in enclosed spaces or in industries where environmental safety is a top priority.

High-temperature cables often meet or exceed various international standards and certifications, such as UL, IEC, and ATEX for hazardous locations. This compliance simplifies the approval process for industrial projects and ensures that installations meet global safety and performance requirements. As regulations evolve, particularly in areas like fire safety and hazardous area classifications, high-temperature cables are well-positioned to meet these changing standards without requiring frequent system upgrades.

Conclusion

High-temperature cables are indispensable components in modern industrial environments, offering unparalleled performance in extreme conditions. Their ability to withstand high temperatures while maintaining electrical integrity makes them crucial for ensuring safety, reliability, and efficiency across various sectors. From manufacturing and power generation to aerospace and transportation, these specialized cables enable operations in environments where standard cables would fail. As industries continue to push the boundaries of performance and efficiency, the role of high-temperature cables in supporting innovation and ensuring operational continuity becomes increasingly vital. By investing in high-temperature cable solutions, industries not only enhance their operational capabilities but also contribute to safer, more reliable, and more sustainable industrial practices.
