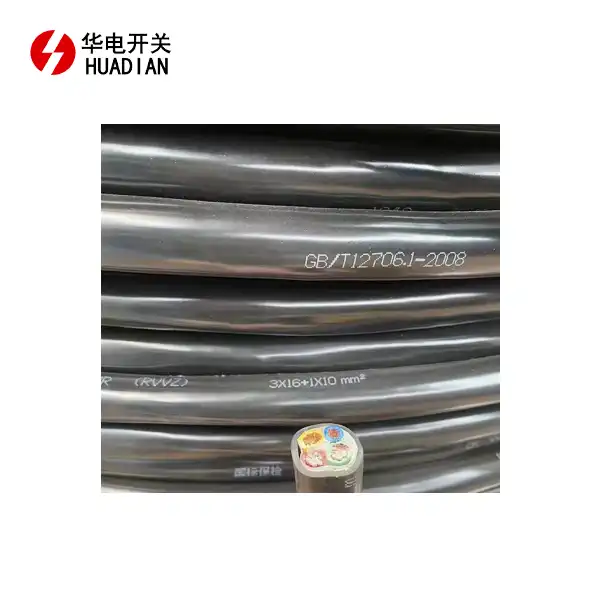

What to Look for When Selecting Instrumentation Cables for Harsh Environments?

When selecting instrumentation cables for harsh environments, it's crucial to consider several key factors. These include the cable's resistance to extreme temperatures, chemicals, and mechanical stress. Look for cables with robust insulation materials like fluoropolymers or cross-linked polyethylene, which offer superior protection against environmental hazards. Evaluate the cable's shielding capabilities to ensure signal integrity in electrically noisy environments. Consider the cable's flexibility and durability to withstand frequent movement or vibration. Additionally, check for certifications that validate the cable's performance in specific harsh conditions. By carefully assessing these aspects, you can choose instrumentation cables that will maintain reliable performance and longevity in challenging industrial settings.

Understanding Instrumentation Cable Specifications

Temperature Ratings and Their Significance

Instrumentation cables must withstand a wide range of temperatures in harsh environments. The temperature rating of a cable indicates its ability to maintain performance and integrity under extreme heat or cold. High-temperature cables often utilize materials like fluoropolymers, which can withstand temperatures up to 200°C or higher. Conversely, low-temperature cables employ specially formulated compounds that remain flexible and resistant to cracking in sub-zero conditions.

When selecting an instrumentation cable, consider both the maximum and minimum temperature extremes it may encounter. Factor in not only ambient temperatures but also localized heat sources or potential exposure to cryogenic substances. Remember that temperature fluctuations can also impact cable performance, so choose a cable rated for a range that exceeds your expected operational conditions.

Chemical Resistance Properties

In many industrial settings, instrumentation cables are exposed to corrosive chemicals, oils, and solvents. The chemical resistance of a cable's jacket and insulation materials is paramount to ensuring its longevity and reliability. Look for cables with jackets made from materials like polyurethane or fluoropolymers, which offer excellent resistance to a broad spectrum of chemicals.

Consider the specific chemical hazards present in your environment. Some cables are designed to resist particular classes of chemicals, such as hydrocarbons or acids. Consult chemical resistance charts provided by cable manufacturers to match the cable's properties with your environmental challenges. Remember that even small amounts of chemical exposure over time can degrade cable performance, so prioritize robust chemical resistance in your selection criteria.

Mechanical Strength and Flexibility Requirements

Harsh environments often subject instrumentation cables to significant mechanical stress. This can include abrasion, crushing forces, and repeated flexing. When selecting cables, evaluate their tensile strength, crush resistance, and flex life. Cables with reinforced constructions, such as those featuring aramid yarn strength members, can offer superior resistance to mechanical damage.

Flexibility is another crucial factor, especially in applications where the cable must be routed through tight spaces or subjected to frequent movement. Look for cables with fine-stranded conductors and specialized jacket materials that maintain flexibility without compromising durability. Consider the minimum bend radius specifications and ensure they align with your installation requirements. Balancing strength and flexibility is key to selecting an instrumentation cable that can withstand the rigors of harsh environments while maintaining optimal performance.

Shielding and EMI Protection

Types of Cable Shielding

Effective shielding is essential for instrumentation cables operating in environments with high electromagnetic interference (EMI). Various shielding types are available, each offering different levels of protection. Foil shields, consisting of thin aluminum or copper foil, provide excellent high-frequency noise rejection but may be less effective against low-frequency interference. Braid shields, made from woven copper strands, offer better flexibility and mechanical strength, with good protection across a wide frequency range.

Some cables feature combination shields, such as foil-braid constructions, which provide comprehensive protection against both high and low-frequency EMI. For extreme EMI environments, consider triaxial cables, which offer an additional layer of shielding for maximum protection. When selecting shielding, consider not only the type of interference present but also the cable's overall diameter and weight constraints.

Grounding and Termination Considerations

Proper grounding and termination of shielded instrumentation cables are crucial for effective EMI protection. The shield should be continuous along the entire cable length and terminated appropriately at both ends. Consider whether your application requires single-point or multi-point grounding, as this can impact the overall effectiveness of the shielding.

Look for cables with drain wires, which facilitate easy and reliable shield termination. Ensure that the cable's construction allows for easy stripping and termination without compromising the shield's integrity. In harsh environments, pay special attention to the corrosion resistance of termination components to maintain long-term shielding effectiveness.

EMI Testing and Compliance Standards

When selecting instrumentation cables for EMI-sensitive applications, look for products that have undergone rigorous EMI testing. Cables should comply with relevant industry standards for electromagnetic compatibility (EMC). Common standards include IEC 61000-4-6 for conducted immunity and IEC 61000-4-3 for radiated immunity.

Ask cable manufacturers for detailed EMI performance data, including attenuation curves across various frequencies. Consider cables that have been tested in conditions similar to your operating environment. For critical applications, you may need to conduct additional on-site EMI testing to ensure the cable's performance meets your specific requirements. Remember that EMI protection is not just about the cable itself but also involves proper installation practices and system-wide EMC considerations.

Environmental Certifications and Standards

Industry-Specific Certifications

Instrumentation cables used in harsh environments often require specific certifications to ensure compliance with industry standards. In the oil and gas sector, for example, cables may need to meet ATEX or IECEx standards for use in explosive atmospheres. Marine applications might require certifications from organizations like DNV GL or ABS. Look for cables that carry relevant certifications for your industry to ensure they meet the necessary safety and performance standards.

Some certifications focus on specific environmental factors. For instance, UL 2225 addresses cables for use in hazardous locations, while UL 1309 covers marine shipboard cables. When selecting instrumentation cables, review the full range of applicable certifications and ensure that the chosen cable meets or exceeds all relevant standards for your application.

Fire Safety and Low Smoke Zero Halogen (LSZH) Requirements

In many harsh environments, fire safety is a critical concern. Look for instrumentation cables that meet stringent fire safety standards, such as IEC 60332-1-2 for flame retardancy. For applications where smoke emissions are a concern, consider Low Smoke Zero Halogen (LSZH) cables. These cables emit minimal smoke and no halogenic compounds when exposed to fire, reducing the risk of toxic fumes in enclosed spaces.

LSZH cables are particularly important in marine, mass transit, and industrial settings where evacuation in case of fire may be challenging. When selecting LSZH cables, look for compliance with standards like IEC 61034-2 for smoke density and IEC 60754-1 for halogen content. Remember that while LSZH cables offer improved safety, they may have different mechanical and electrical properties compared to traditional PVC cables, so consider all performance aspects in your selection process.

Environmental Impact and Sustainability Considerations

As environmental concerns become increasingly important, consider the sustainability aspects of instrumentation cables. Look for cables that comply with regulations such as RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization and Restriction of Chemicals). These standards ensure that cables are free from harmful substances and are environmentally friendly.

Some cable manufacturers now offer eco-friendly options, such as halogen-free cables or those made with recycled materials. Consider the entire lifecycle of the cable, including its disposal or recycling at the end of its service life. While performance in harsh environments remains the primary concern, selecting cables with minimal environmental impact can contribute to your organization's sustainability goals without compromising on quality or reliability.

Conclusion

Selecting the right instrumentation cables for harsh environments is a critical decision that impacts the reliability and performance of your industrial systems. By carefully considering factors such as temperature ratings, chemical resistance, mechanical strength, EMI protection, and relevant certifications, you can ensure that your chosen cables will withstand the challenges of demanding operational conditions. Remember to balance performance requirements with environmental considerations and industry-specific standards. Thorough evaluation and selection of instrumentation cables will contribute to the long-term success and safety of your industrial operations in harsh environments.
