What is the trip current of a small leakage circuit breaker?

The trip current of a small leakage circuit breaker is a crucial safety parameter that determines when the device will interrupt the electrical circuit to prevent potential hazards. Typically, the trip current for a small leakage circuit breaker ranges from 5 to 30 milliamperes (mA), depending on the specific model and application. This sensitive threshold allows the breaker to detect even minute current leakages and respond swiftly, safeguarding against electric shock and fire risks. Understanding this trip current is essential for selecting the appropriate small leakage circuit breaker for various residential, commercial, and industrial installations, ensuring optimal protection for both people and equipment.

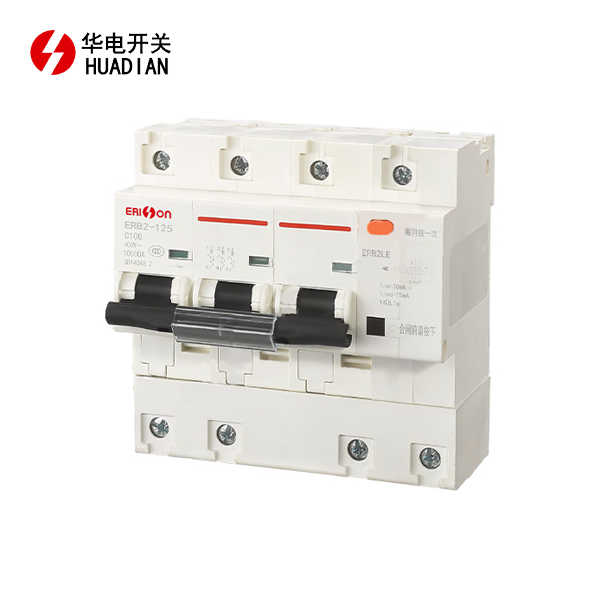

What is the Small Leakage Circuit Breakers?

Defining Small Leakage Circuit Breakers

Small leakage circuit breakers, also known as residual current devices (RCDs) or ground fault circuit interrupters (GFCIs), are safety devices designed to protect against electrical hazards. These devices monitor the balance of current flowing between the live and neutral conductors in an electrical circuit. When an imbalance is detected, indicating a potential leakage to ground, the breaker trips and interrupts the circuit, preventing potential electric shock or fire.

Operating Principles of Small Leakage Circuit Breakers

The operation of small leakage circuit breakers relies on the principle of electromagnetic induction. Inside the breaker, a toroidal core surrounds both the live and neutral conductors. Under normal conditions, the currents in these conductors are equal and opposite, resulting in no net magnetic field. However, when a leakage occurs, the imbalance creates a magnetic field that induces a current in a sensing coil. This induced current activates the tripping mechanism, disconnecting the circuit.

Types of Small Leakage Circuit Breakers

There are several types of small leakage circuit breakers available, each suited for specific applications:

- AC Type: Sensitive to alternating current leakage

- A Type: Detects both AC and pulsating DC leakage currents

- B Type: Capable of detecting smooth DC leakage currents in addition to AC and pulsating DC

- S Type: Selective RCDs for use in cascaded installations

The choice of breaker type depends on the nature of the electrical system and potential leakage currents that may occur.

The Importance of Trip Current in Small Leakage Circuit Breakers

Safety Implications of Trip Current

The trip current of a small leakage circuit breaker is a critical factor in ensuring electrical safety. A lower trip current offers greater sensitivity to leakage, providing enhanced protection against electric shock. However, it's essential to balance sensitivity with the need to avoid nuisance tripping. The trip current must be carefully selected to provide optimal safety without compromising the reliability of the electrical system.

Regulatory Standards for Trip Currents

Various international standards govern the trip currents of small leakage circuit breakers. For instance, IEC 61008 and IEC 61009 specify requirements for residual current devices. These standards define different sensitivity levels, typically ranging from 6 mA to 500 mA, with 30 mA being a common trip current for general-purpose protection in residential and light commercial applications. Compliance with these standards ensures that small leakage circuit breakers provide consistent and reliable protection.

Factors Influencing Trip Current Selection

Selecting the appropriate trip current for a small leakage circuit breaker involves considering several factors:

- Application type (residential, commercial, industrial)

- Characteristics of connected loads

- Presence of sensitive electronic equipment

- Environmental conditions (humidity, temperature)

- Length and type of circuit wiring

Proper selection ensures effective protection while minimizing unnecessary interruptions to power supply.

Advanced Features and Technologies in Modern Small Leakage Circuit Breakers

Self-Testing Capabilities

Modern small leakage circuit breakers often incorporate self-testing features. These advanced devices periodically perform automated checks to verify their operational status. Self-testing capabilities enhance reliability by ensuring that the breaker remains functional throughout its service life, providing continuous protection against leakage currents without the need for manual intervention.

Integration with Smart Home Systems

The advent of smart home technology has led to the development of intelligent small leakage circuit breakers. These devices can be integrated into home automation systems, allowing remote monitoring and control. Users can receive real-time notifications of tripping events, monitor energy consumption, and even reset the breaker remotely, enhancing both convenience and safety in modern electrical installations.

Enhanced Discrimination and Coordination

Advanced small leakage circuit breakers offer improved discrimination and coordination capabilities. This feature allows for better integration with other protective devices in the electrical system, ensuring that only the breaker closest to a fault trips, minimizing disruption to the rest of the circuit. Enhanced discrimination is particularly valuable in complex electrical installations where maintaining power to critical loads is essential.

Conclusion

Understanding the trip current of small leakage circuit breakers is crucial for ensuring electrical safety in various applications. These devices play a vital role in protecting against electric shock and fire hazards by detecting minute current leakages. With advancements in technology, modern small leakage circuit breakers offer enhanced features such as self-testing, smart integration, and improved discrimination. As electrical systems continue to evolve, the importance of selecting and maintaining appropriate small leakage circuit breakers with suitable trip currents cannot be overstated. Proper implementation of these safety devices contributes significantly to the overall reliability and safety of electrical installations.
